Bare Conductor ACAR 400Kcmil 15/4 Bare overhead conductor used as transmission cable and as primary and secondary
Product Description:
The aluminium 1350 outer strands provide good electrical conductivity, resulting in low transmission resistance. Additionally, the absence of magnetic hysteresis loss and electrochemical reactions in the alloy core contributes to efficient power transmission.
Construction :
Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core
Standards :
ASTM B230 B398 B524
Technical Parameters:
| Conductor Size | No. and Diameter of Wires | Nominal Outside Diameter | Mass per Unit Length | Rated | Nominal DC Resistance at 20℃ | ||||
| MCM(AWG) | mm² | Aluminium | Alloy | ||||||
| No. | mm | No. | mm | mm | kg/km | KN | Ω/km | ||
| 500 | 253 | 15 | 4.12 | 4 | 4.12 | 20.6 | 696 | 46.2 | 0.1173 |
| 500 | 253 | 12 | 4.12 | 7 | 4.12 | 20.6 | 696 | 52.4 | 0.12 |
| 500 | 253 | 18 | 2.951 | 19 | 2.951 | 20.66 | 695 | 58.8 | 0.1227 |

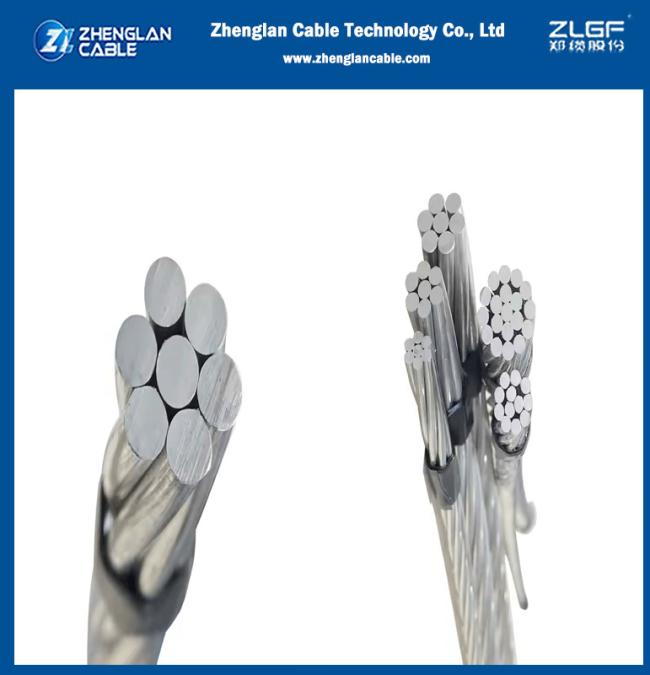

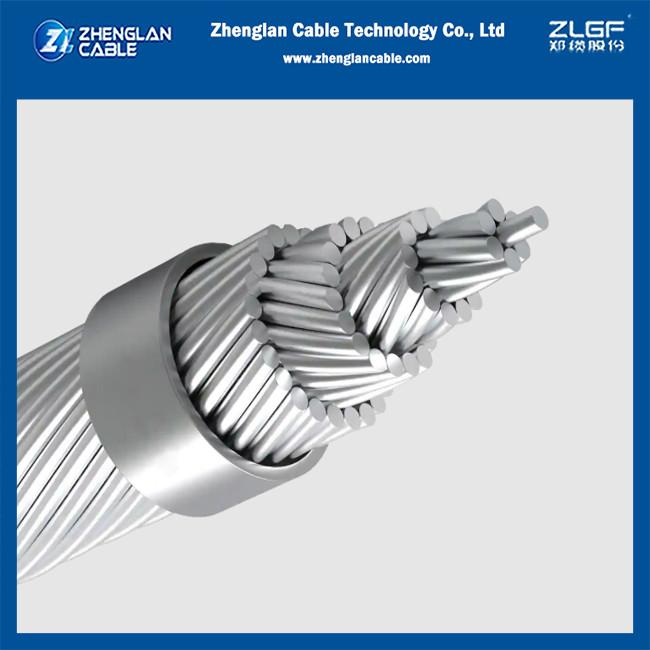

Image:
Packing and Shipping:
Product Packaging and Shipping:
The Bare Aluminum Conductor product is carefully packaged to ensure safe delivery to our customers. Each coil of conductor is wrapped in protective plastic and placed in a sturdy wooden drum or an ironwood drum for shipping.
For shipping, we partner with reliable carriers to deliver the product to your location efficiently and securely. Our team ensures that the packages are properly labeled and handled to prevent any damage during transit.
About Zhenglan cable:
Zhenglan Cable Technology CO., Ltd., formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large-scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan, and its headquarters are located on the 49th floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
OEM/ODM services provided.
Products comply with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; Customer standard requirements accepted.
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡.
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the highest efficient shipping time guaranteed.
Professional pre-sales and after-sales services are provided.
