Bare Aluminum Conductor AAC Orchid 636MCM 37/3.33mm For Overhead Line
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
15-20 days
Brand:
Zhenglan Cable
Product Description
Bare aluminum conductor AAC Orchid 636MCM(37/3.33mm) for overhead line use general description
AAC are made from round aluminum 1350-H19 (extra hard) wires. They can maximize the current carrying capacity for transmission and distribution projects that do not require the strength of ACSR type conductors. AAC conductors are also a good choice for coastal areas, where the environmental conditions are corrosive to ACSR conductors.
Manufacture Standards:
1350-H19 for Electrical Purposes
Concentric-Lay-Stranded Aluminum 1350 conductors
Requirements of the National Electrical Code
ASTM B-230/230M
1350-H19 for Electrical Purposes
Concentric-Lay-Stranded Aluminum 1350 conductors
Requirements of the National Electrical Code
ASTM B-230/230M
Bare aluminum conductor AAC Orchid 636MCM(37/3.33mm) Applications
AAC are a refined Aluminium stranded conductor with a minimum metal purity of 99.7%. It is principally used in urban areas where spacing is short and the supports are close. It can be used in coastal regions owing to its high degree of corrosion resistance and is also used extensively within the Railway and Metro industries.
Bare aluminum conductor AAC Orchid 636MCM(37/3.33mm) for overhead line use Technical data sheet
| Código | Bitola AWG ou MCM |
Seção Nominal (mm²) |
Encordoamento: N° de fios x Diâmetro Nominal (mm) |
Diâmetro Externo Nominal (mm) |
Peso Líquido Nominal (kg/km) |
Carga de Ruptura (kN) |
Capacidade de Corrente |
Resistência Elétrica Max. a 20ºC (Ohm/km) |
|
| Orchid | 6,360 | 32,226 | 37 x 3,33 | 2,331 | 8,883 | 4,984 | 745 | 8,946 | |

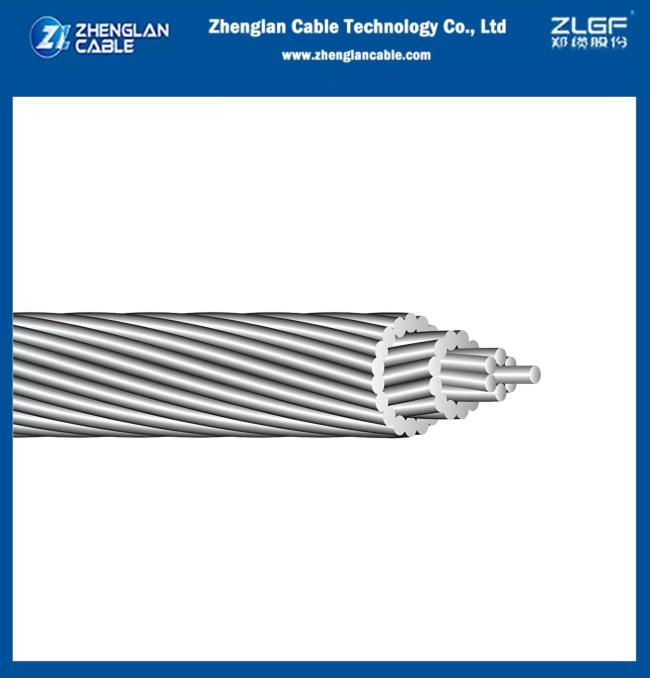

Bare aluminum conductor AAC Orchid 636MCM(37/3.33mm) for overhead line use images

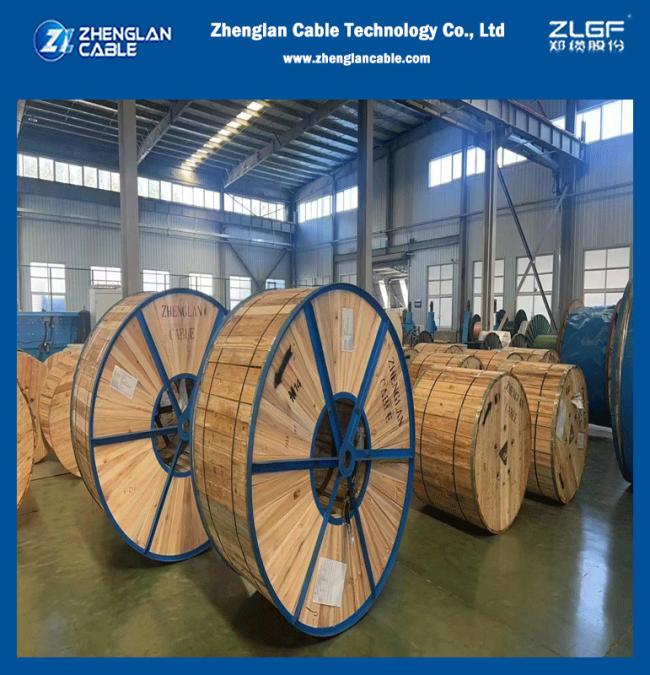

Factory Images
About Zhenglan Cable Technology. Co., Ltd
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
