China High Quality IRAM AAAC 120mm2 150mm2 185mm2 Overhead Electric Cables Aluminum Conductor
Product Description:
AAAC (All Aluminum Alloy Conductor) bare conductor is a conductor for overhead transmission lines made of aluminum alloy stranded wire, which has high strength, light weight and good conductivity. Additionally, the absence of magnetic hysteresis loss and electrochemical reactions in the alloy core contributes to efficient power transmission.
Construction :
Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy.
Standards :
IRAM 2212
Technical Parameters:
| Seccion Nominal | Alambres | Conductor Ø Exterior | Masa Cálculo Iram Aprox. (1) | Carga Mínimao Rotura (1) | Resistencia max. A 20ºC (1) En CC |
Resistencia Max. A 80ºC En CA | Intensidad (2) | ||
| mm2 | Nº | Ømm | mm | kg/km | Kgf | daN | Ω/km | Ω/km | A |
| 120 | 19 | 2,85 | 14.3 | 333.5 | 3464 | 3397 | 0.2732 | 0.339 | 340 |
| 150 | 37 | 2,25 | 15.8 | 405.6 | 4204 | 4123 | 0.2256 | 0.28 | 384 |
| 185 | 37 | 2,52 | 17.6 | 508.8 | 5274 | 5172 | 0.1798 | 0.223 | 443 |

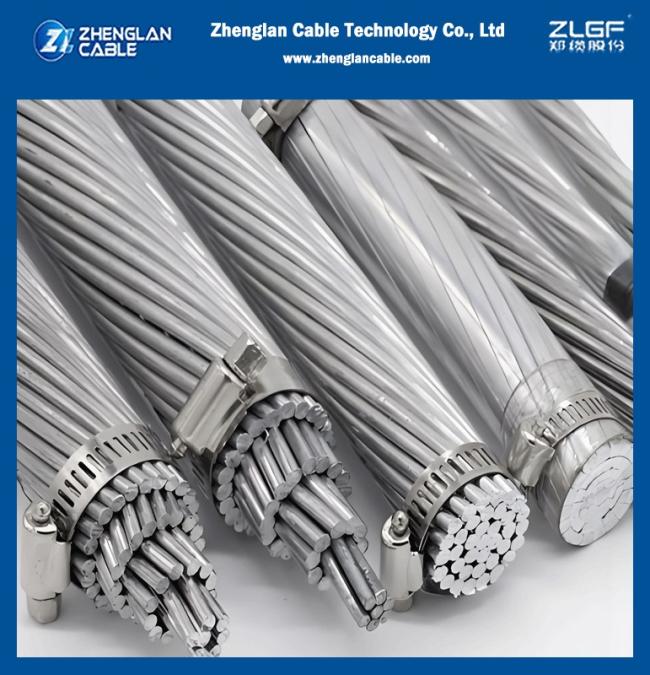

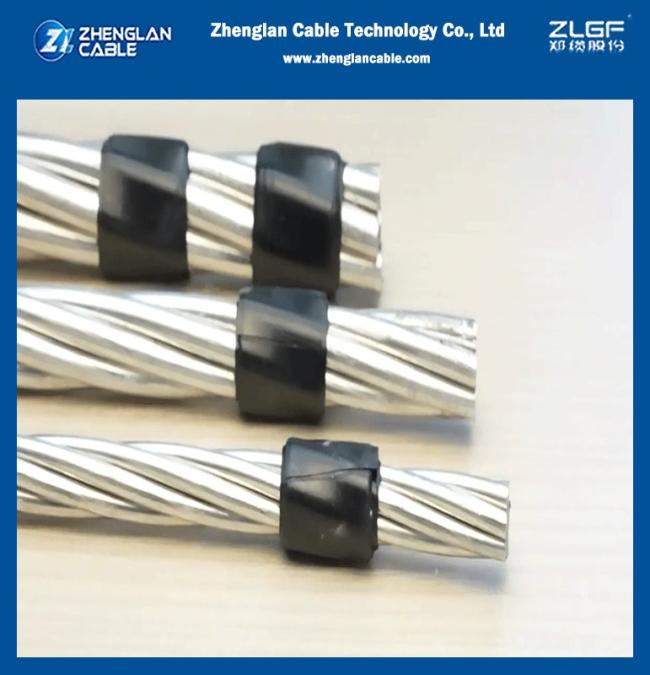

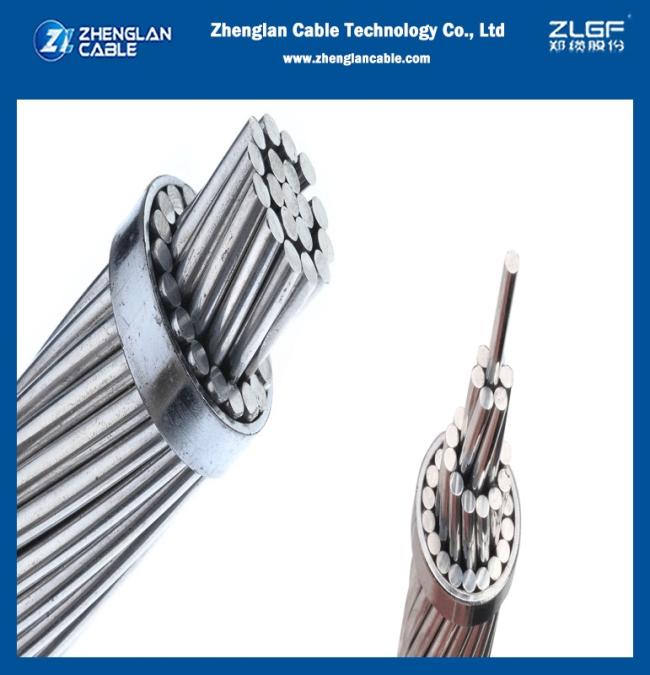

Image:
Packing and Shipping:
Product Packaging and Shipping:
The Bare Aluminum Conductor product is carefully packaged to ensure safe delivery to our customers. Each coil of conductor is wrapped in protective plastic and placed in a sturdy wooden drum or an ironwood drum for shipping.
For shipping, we partner with reliable carriers to deliver the product to your location efficiently and securely. Our team ensures that the packages are properly labeled and handled to prevent any damage during transit.
About Zhenglan cable:
Zhenglan Cable Technology CO., Ltd., formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large-scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan, and its headquarters are located on the 49th floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
OEM/ODM services provided.
Products comply with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; Customer standard requirements accepted.
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and the factory covers an area of 60,000㎡.
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the highest efficient shipping time guaranteed.
Professional pre-sales and after-sales services are provided.
