ACSR Bare Aluminum Conductor Steel Reinforced 75sqmm Raccoon AL: 6/4.10mm, ST: 1/4.10mm BS215-2
Application :
Aluminium Conductor Steel Reinforced(ACSR) BS 215 - Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing campacity.
Construction :

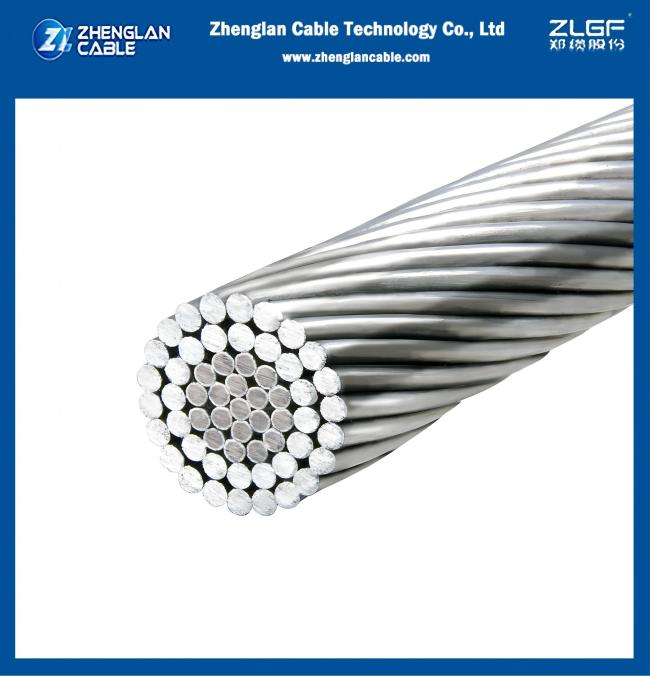

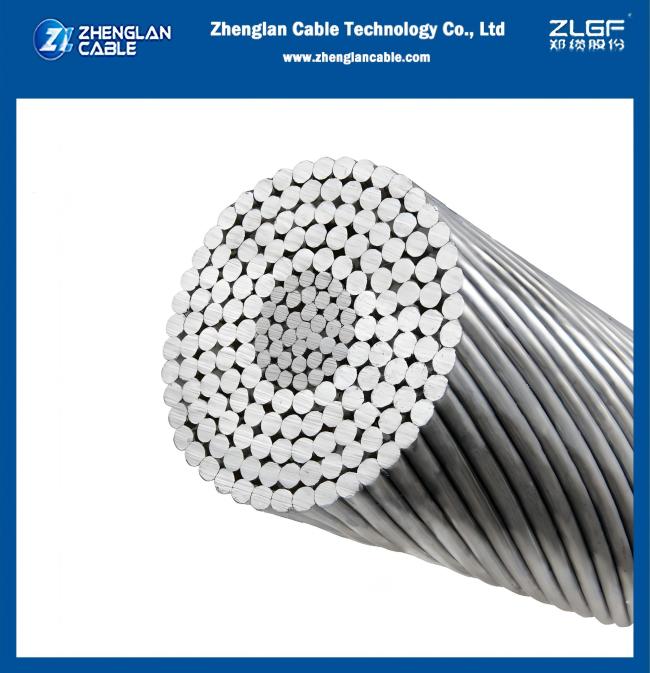

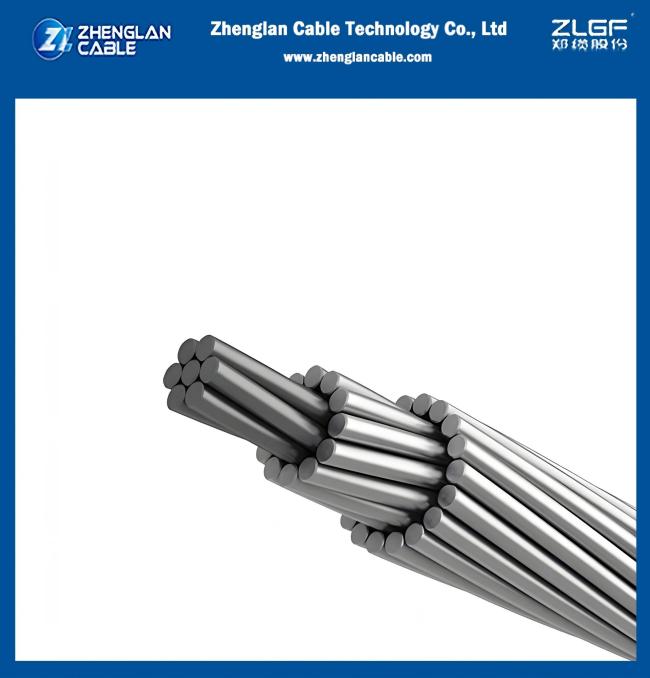

Aluminum alloy 1350-H119 wires, concentrically stranded around a steel core available with Class A, B or C galvanizing; aluminum coated (AZ); or aluminum-clad steel core (AL). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease. Also available with Non Specular surface finish.
| Code | Area | Stranding | O.D. | Weight | Strength | Resistance
at 20℃ |
||||||
| Nominal
Al.. |
Al. | St. | Total | Al. | St | Al. | St. | Total | ||||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ω/km | |
| Raccoon | 75 | 79.20 | 13.20 | 92.40 | 6/4.10 | 1/4.10 | 12.30 | 217 | 103 | 320 | 27.20 | 0.3622 |
