Energy-efficient Electric Cable ACAR Conductor 30/7 with ASTM B524B524M standards offering superior mechanical properties
Product Description:

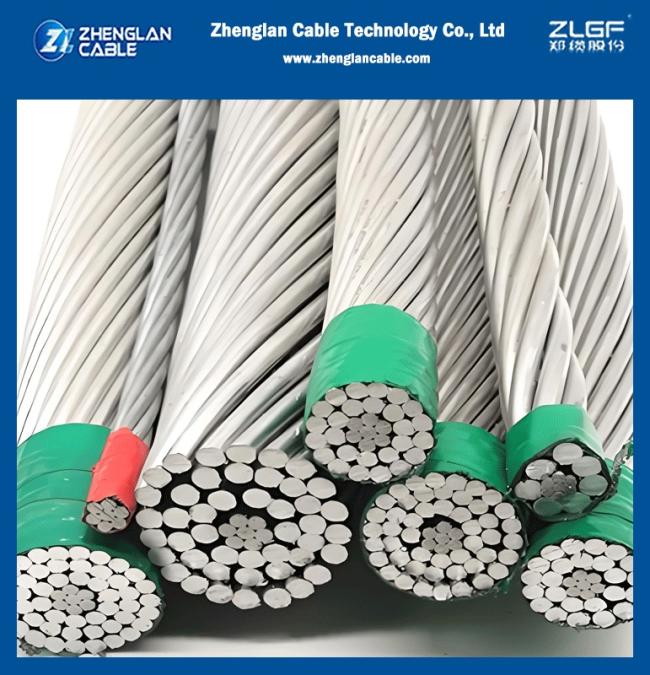

ACAR is an overhead power transmission cable composed of a high-strength aluminum-alloy core surrounded by layers of high-conductivity aluminum wires.
Applications:
ACAR, short for Aluminum Conductor Alloy-Reinforced, is a type of overhead transmission line conductor widely used in power systems across the globe. It is designed to balance electrical performance, mechanical strength, and cost-effectiveness, making it a preferred alternative to traditional conductors in many applications.
Standards:
ASTM B524B524M
Conductor:

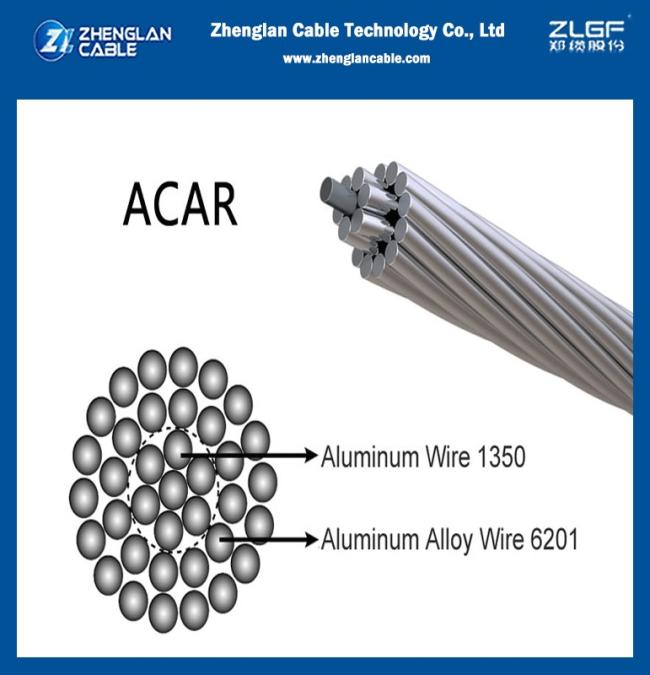

1. Outer layer: Aluminum wire 1350
2. Center: Aluminum alloy wire 6201
Technical Parameters:
| Conductor Size | No. and Dia. of Wires | Approx. Overall Dia. |
Approx. Weight |
Rated Strength |
Max. DC Resistance at 20°C |
||||
| Aluminium | Alloy | ||||||||
| MCM(AWG) | mm² | No. | mm | No. | mm | mm | kg/km | kN | Ω/km |
| 500 | 253 | 30 | 2.951 | 7 | 2.951 | 20.66 | 696 | 48 | 0.117 |
| 550 | 279 | 30 | 3.096 | 7 | 3.096 | 21.67 | 766 | 52.1 | 0.1063 |
| 600 | 304 | 30 | 3.233 | 7 | 3.233 | 22.63 | 836 | 56.8 | 0.0975 |
| 650 | 329 | 30 | 3.366 | 7 | 3.366 | 23.56 | 906 | 60.8 | 0.0899 |
| 700 | 355 | 30 | 3.493 | 7 | 3.493 | 24.45 | 975 | 65.5 | 0.0835 |
| 750 | 380 | 30 | 3.617 | 7 | 3.617 | 25.32 | 1045 | 69.2 | 0.0779 |
| 800 | 405 | 30 | 3.734 | 7 | 3.734 | 26.14 | 1114 | 73.8 | 0.0731 |
| 850 | 431 | 30 | 3.851 | 7 | 3.851 | 26.96 | 1185 | 77.3 | 0.0687 |
| 853.7 | 433 | 30 | 3.858 | 7 | 3.858 | 27.01 | 1192 | 77.6 | 0.0685 |
| 900 | 456 | 30 | 3.962 | 7 | 3.962 | 27.73 | 1254 | 81.9 | 0.0649 |
| 950 | 481 | 30 | 4.069 | 7 | 4.069 | 28.48 | 1323 | 86.4 | 0.0615 |
| 1000 | 507 | 30 | 4.176 | 7 | 4.176 | 29.23 | 1393 | 91 | 0.0584 |
| 1024.5 | 519 | 30 | 4.227 | 7 | 4.227 | 29.59 | 1431 | 93.2 | 0.057 |
| 1100 | 557 | 30 | 4.379 | 7 | 4.379 | 30.65 | 1533 | 100 | 0.0531 |
| 1109 | 562 | 30 | 4.397 | 7 | 4.397 | 30.78 | 1549 | 101 | 0.0527 |
| 1172 | 594 | 30 | 4.521 | 7 | 4.521 | 31.64 | 1637 | 107 | 0.0499 |
| 1198 | 607 | 30 | 4.57 | 7 | 4.57 | 31.99 | 1673 | 109 | 0.0488 |
| 1200 | 608 | 30 | 4.575 | 7 | 4.575 | 32.02 | 1672 | 109 | 0.0487 |
