Circular Stranded Aluminum Alloy Conductor wire BS EN 50182 certified, ideal for use in overhead power line systems
Product Description:

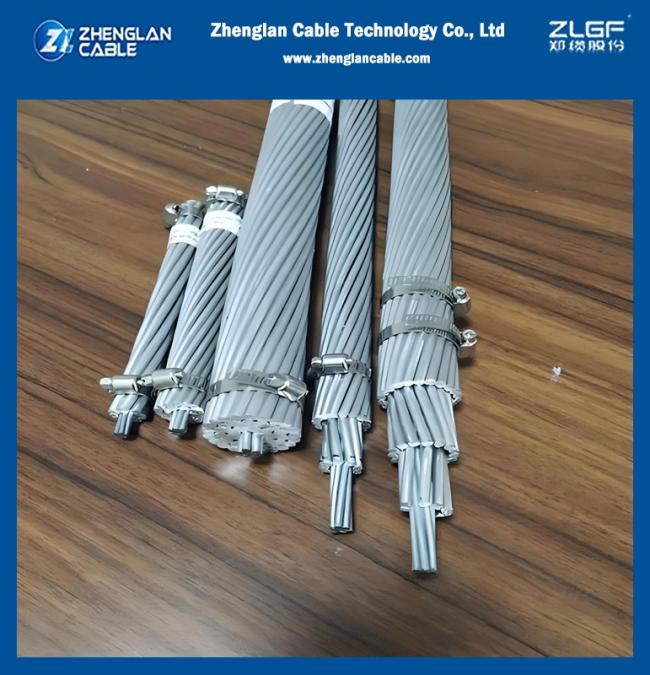

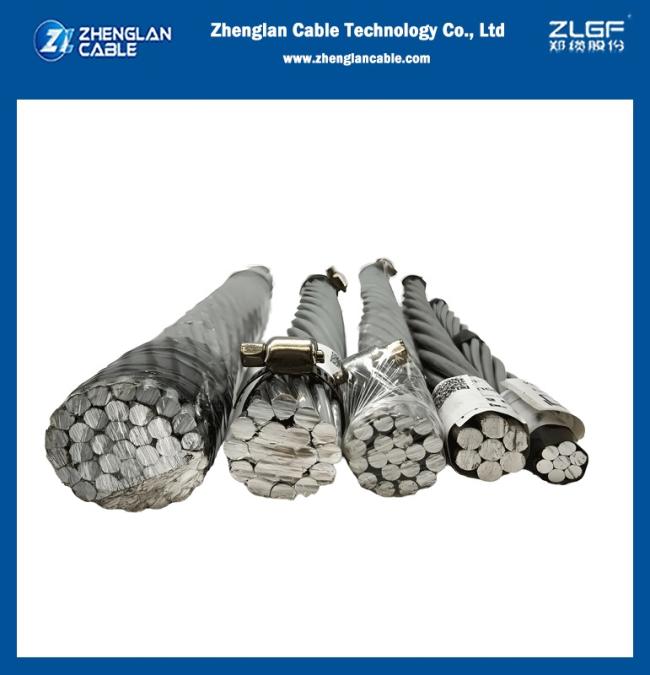

All-aluminum alloy conductor is a concentric stranded conductor made of aluminum alloy wire, typically 6201-T81 aluminum alloy wire, and can be made into single-layer or multi-layer structures depending on the requirements.
Applications:
AAAC are mainly used for overhead lines, in transmission and distribution electrical networks, having relatively long spans. It has a high tensile strength, good corrosion resistance, light weight, and comparable current-carrying capacity. They are also used as a messenger to support overhead
Standards:
ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 4820, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179
Conductor:
Hard-drawn aluminum alloy wire 6201
Technical Parameters:
| Code | Old code | Area | No.Dia of Wires | Approx. Overall Dia. |
Approx. Weight |
Breaking Load |
Max. DC Resistance at 20℃ | |
| mm2 | No. | mm | mm | kg/km | kN | Ω/km | ||
| 19-AL3 | BOX | 18.8 | 7 | 1.85 | 5.55 | 51.4 | 5.55 | 1.748 |
| 24-AL3 | ACACIA | 23.8 | 7 | 2.08 | 6.24 | 64.9 | 7.02 | 1.3828 |
| 30-AL3 | ALMOND | 30.1 | 7 | 2.34 | 7.02 | 82.2 | 8.88 | 1.0926 |
| 35-AL3 | CEDAR | 35.5 | 7 | 2.54 | 7.62 | 96.8 | 10.46 | 0.9273 |
| 42-AL3 | DEODAR | 42.2 | 7 | 2.77 | 8.31 | 115.2 | 12.44 | 0.7797 |
| 48-AL3 | FIR | 47.8 | 7 | 2.95 | 8.85 | 130.6 | 14.11 | 0.6875 |
| 60-AL3 | HAZEL | 59.9 | 7 | 3.3 | 9.9 | 163.4 | 17.66 | 0.5494 |
| 72-AL3 | PINE | 71.6 | 7 | 3.61 | 10.8 | 195.6 | 21.14 | 0.4591 |
| 84-AL3 | HOLLY | 84.1 | 7 | 3.91 | 11.7 | 229.5 | 24.79 | 0.3913 |
| 90-AL3 | WILLOW | 89.7 | 7 | 4.04 | 12.1 | 245 | 26.47 | 0.3665 |
| 119-AL3 | OAK | 118.9 | 7 | 4.65 | 14 | 324.5 | 35.07 | 0.2767 |
| 151-AL3 | MULBERRY | 150.9 | 19 | 3.18 | 15.9 | 414.3 | 44.52 | 0.2192 |
| 181-AL3 | ASH | 180.7 | 19 | 3.48 | 17.4 | 496.1 | 53.31 | 0.183 |
| 211-AL3 | ELM | 211 | 19 | 3.76 | 18.8 | 579.2 | 62.24 | 0.1568 |
| 239-AL3 | POPLAR | 239.4 | 37 | 2.87 | 20.1 | 659.4 | 70.61 | 0.1387 |
| 303-AL3 | SYCAMORE | 303.2 | 37 | 3.23 | 22.6 | 835.2 | 89.4 | 0.1095 |
| 362-AL3 | UPAS | 362.1 | 37 | 3.53 | 24.7 | 997.5 | 106.82 | 0.0917 |
| 479-AL3 | YEW | 479 | 37 | 4.06 | 28.4 | 1319.6 | 141.31 | 0.0693 |
| 498-AL3 | TOTARA | 498.1 | 37 | 4.14 | 29 | 1372.1 | 146.93 | 0.0666 |
| 587-AL3 | RUBUS | 586.9 | 61 | 3.5 | 31.5 | 1622 | 173.13 | 0.0567 |
| 659-AL3 | SORBUS | 659.4 | 61 | 3.71 | 33.4 | 1822.5 | 194.53 | 0.0505 |
| 821-AL3 | ARAUCARIA | 821.1 | 61 | 4.14 | 37.3 | 2269.4 | 242.24 | 0.0406 |
| 996-AL3 | REDWOOD | 996.2 | 61 | 4.56 | 41 | 2753.2 | 293.88 | 0.0334 |
Drawing:
FAQ:
Q1: What is the brand name of the Bare Aluminum Conductor?
A1: The brand name of the Bare Aluminum Conductor is Zhenglan Cable.
Q2: What model number does the Bare Aluminum Conductor have?
A2: The Bare Aluminum Conductor is identified by the model number All Aluminium Alloy Conductors (AAAC).
Q3: Where is the Bare Aluminum Conductor manufactured?
A3: The Bare Aluminum Conductor is manufactured in China.
Q4: What are the main features of the All Aluminium Alloy Conductors (AAAC)?
A4: The All Aluminium Alloy Conductors (AAAC) offer high strength, excellent corrosion resistance, and good electrical conductivity, making them suitable for overhead power transmission lines.
Q5: Can the Bare Aluminum Conductor be used in outdoor environments?
A5: Yes, the Bare Aluminum Conductor by Zhenglan Cable is designed to withstand outdoor conditions and is commonly used in overhead power distribution and transmission.
