Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable
Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable
Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable Application:
This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000 V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable data sheets:
| Cable Size | Current Rating (Note 1) | Short Circuit Rating (Note 2) | Conductor Resistance @ 20°C | Conductor Resistance (ac) @ 80°C | Self Supporting System | Supporting Core System | |||||||
| Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C |
Supporting Core Size | Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C |
|||||||||
| mm² | (A) | kA | ( /km) | ( /km) | ( /km) | ( /km) | mm² | ( /km) | ( /km) | ||||
| 25 | 105 | 2.3 | 1.200 | 1.490 | 0.096 | 1.493 | 54.6 | 0.101 | 1.493 | ||||
| 35 | 144 | 3.2 | 0.868 | 1.078 | 0.096 | 1.082 | 54.6 | 0.097 | 1.082 | ||||
| 50 | 183 | 4.6 | 0.641 | 0.796 | 0.090 | 0.801 | 54.6 | 0.089 | 0.801 | ||||
| 70 | 228 | 6.4 | 0.443 | 0.550 | 0.089 | 0.557 | 54.6 | 0.086 | 0.557 | ||||
| 95 | 277 | 8.5 | 0.320 | 0.397 | 0.086 | 0.406 | 54.6 | 0.081 | 0.405 | ||||
| 120 | 322 | 11.0 | 0.253 | 0.314 | 0.084 | 0.325 | 70 | 0.079 | 0.324 | ||||
| 150 | 350 | 13.8 | 0.206 | 0.256 | 0.082 | 0.269 | 95 | 0.079 | 0.268 | ||||

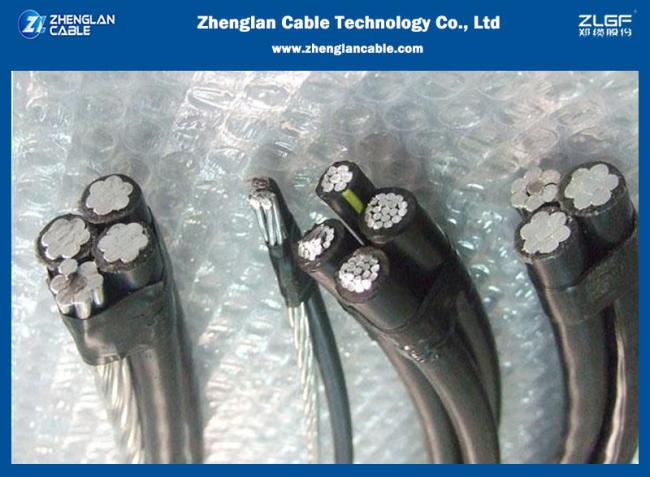

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable picture:
