15KV AL / XLPE Aluminium Overhead Power Cables XLPE Sheathed Spaced Aerial Cable

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable

Cable is made of hard-drawn stranded and compacted aluminum conductors, surrounded by semi-conductive screen insulated with carbon-loaded XLPE to ensure UV protection.

Reference standards: ICEA S66-524 MEA
Conductor: Compacted round stranded hard drawn aluminium wires
Single-core : Size 35 mm² up to 240 mm²
Insulation: Cross-linked polyethylene (XLPE)
Color : Natural
Outer sheath: Cross-linked polyethylene (XLPE)
Color : Black
Classification: Maximum conductor temperature 90°C
Circuit voltage not exceeding: 15,000 Volts
Testing voltage: 27,000 Volts

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable Application:

For use in primary aerial cable on pole( installed with spacer)

XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission and distribution, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

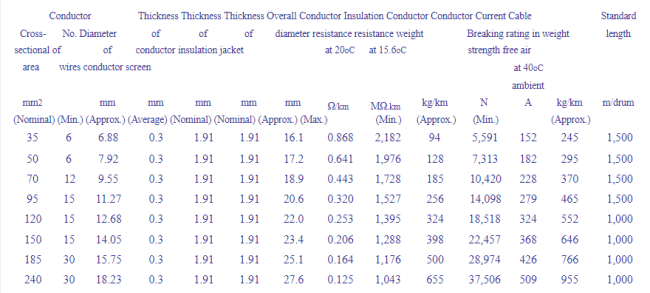

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable Parameters

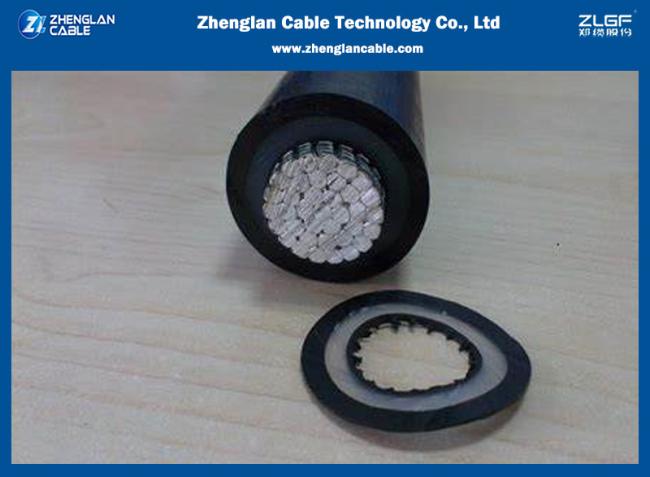

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable images

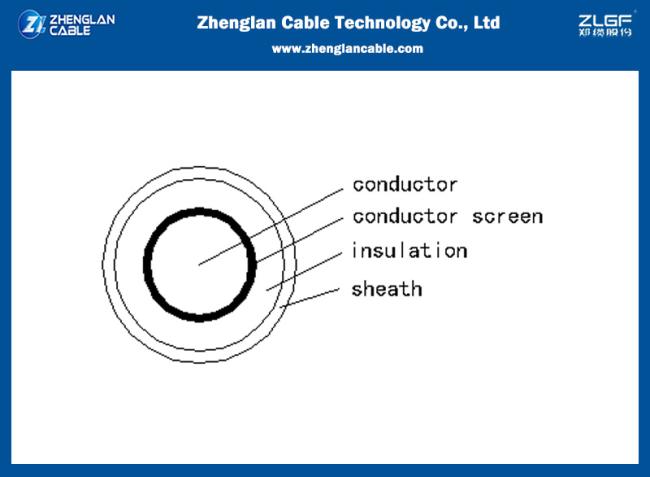

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable structure

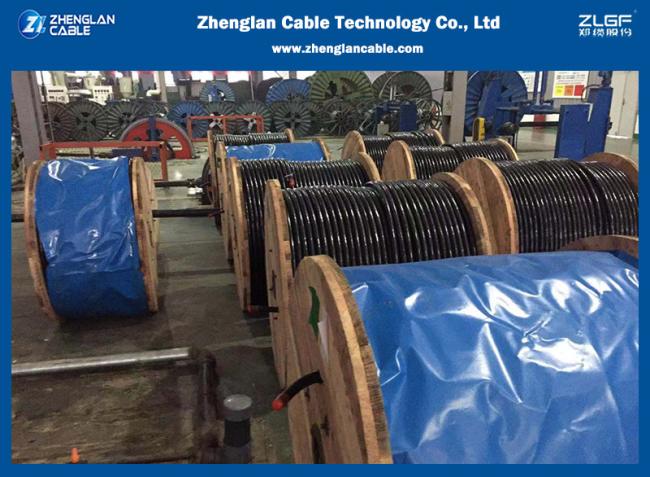

15kv AL/XLPE/XLPE aluminum conductor xlpe insulated xlpe sheathed spaced aerial cable packages
