Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables
Twist Service Drop Overhead Insulated Aluminum Conductor Power Aerial Bundle PVC/XLPE/PE Electrical Cables
Aerial Bundle Cable, known as ABC cable is a very good option for overhead power distribution compared to the conventional bare conductor overhead cable. Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
Characteristics:
PVC insulation<=75ºC;
PE insulation<=70ºC;
XLPE insulation <=90ºC;
2. The highest temperature of the cable conductor during short circuit (the longest duration does not exceed 5 seconds):
PVC insulation<=160ºC;
PE insulation<=150ºC;
XLPE insulation <=250ºC.
3. Cable laying temperature >=-20ºC
Single core MV overhead use insulated aluminum cable technical parameters:
| Conductor nominal cross sectional area(mm²) | Minimum wire nnumber | Conductor diameter(reference )mm | Conductor screen min. Thickness(mm) | Insulation thickness | Insulation screen nominal thickness(mm) | Conductor resistance at 20℃ no more than(Ω/km) | Rted strength no smaller than(N) | |
| Thin insulation | General insulation | |||||||
| 10 | 6 | 3.8 | 0.5 | - | 3.4 | - | 3.080 | - |
| 16 | 6 | 4.8 | 0.5 | -- | 3.4 | -- | 1.910 | - |
| 25 | 6 | 6.0 | 0.5 | 2.5 | 3.4 | 1.0 | 1.200 | 3.762 |
| 35 | 6 | 7.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.868 | 5.177 |
| 50 | 6 | 8.3 | 0.5 | 2.5 | 3.4 | 1.0 | 0.641 | 7.011 |
| 70 | 12 | 10.0 | 0.5 | 2.5 | 3.4 | 1.0 | 0.443 | 10.354 |
| 95 | 15 | 11.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.320 | 13.727 |
| 120 | 18 | 13.0 | 0.6 | 2.5 | 3.4 | 1.0 | 0.253 | 17.339 |
| 150 | 18 | 14.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.206 | 21.033 |
| 185 | 30 | 16.2 | 0.6 | 2.5 | 3.4 | 1.0 | 0.164 | 26.732 |
| 240 | 34 | 18.4 | 0.6 | 2.5 | 3.4 | 1.0 | 0.125 | 34.679 |
| 300 | 34 | 20.6 | 0.6 | 2.5 | 3.4 | 1.0 | 0.100 | 43.349 |
| 400 | 53 | 23.8 | 0.6 | 2.5 | 3.4 | 1.0 | 0.0778 | 55.707 |

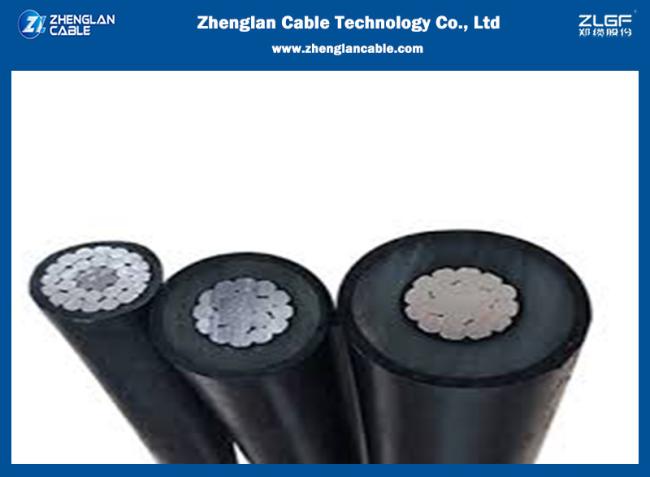

Productors show:
Packing & Shipping:
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
