IEC60502 Multi Cores Overhead Insulated Cable 3x120mm2 XLPE Electric Transmission
IEC60502 Multi Cores Aerial Bundled 3x120mm2 XLPE Insulated Electric Transmission Aerial Bundle Cable
Application
Aerial Bundle Cable (ABC cable) has been widely used in many country with the advantages of excellent electric properties,strong
ability to resist short circuit,long service life,light weight,easy to install,operate and maintain,etc. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
Construction
1.Conductor: Aluminium conductor, round stranded compressed (RM).
2.insulation: XPLE compound, UV-resistant.
3.Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.
4. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - Bare.
Main characteristics
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
1kV aerial bundled cable parameters
| CAAI 0,6/1 kV AAAC Covered Neutral without Public Lighting | |||||||||
| Nb. of cores | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase conductor diameter(mm) | Min Insulation thickness(mm) | Neutral conductor | MIn.Insulat.Thick of Neutral messenger(mm) | Nom. outer diam(mm) | Approx. weight [kg/km] | |
| sectional area(mm2) | conductor diameter(mm) | ||||||||
| 1 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 16.2 | 168 |
| 1 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 17 | 196 |
| 2 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 17.3 | 236 |
| 2 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 18.2 | 291 |
| 2 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 19.7 | 354 |
| 2 | 35 | 7 | 6.9 | 1.15 | 50 | 9.1 | 1.53 | 22.8 | 453 |
| 2 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 23.7 | 489 |
| 2 | 50 | 19 | 8.1 | 1.53 | 50 | 9.1 | 1.53 | 25.3 | 554 |
| 2 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 27.7 | 692 |
| 3 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 18.7 | 304 |
| 3 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 20.2 | 386 |
| 3 | 25 | 7 | 5.8 | 1.15 | 35 | 7.6 | 1.15 | 20.8 | 420 |
| 3 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 22.2 | 480 |
| 3 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 26.7 | 666 |
| 3 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 31.2 | 939 |
| 3 | 70 | 19 | 9.8 | 1.53 | 70 | 10.7 | 1.53 | 32.0 | 1006 |
| 3 | 95 | 19 | 11.5 | 1.53 | 50 | 9.1 | 1.53 | 34.4 | 1186 |
| 3 | 95 | 19 | 11.5 | 1.53 | 70 | 10.7 | 1.53 | 35.3 | 1253 |
| 3 | 120 | 19 | 12.8 | 2.04 | 70 | 10.7 | 1.53 | 39.7 | 1539 |
| 3 | 185 | 37 | 16 | 2.04 | 50 | 9.1 | 1.53 | 45.0 | 2074 |
| 3 | 240 | 37 | 18.4 | 2.04 | 50 | 9.1 | 1.53 | 49.4 | 2591 |

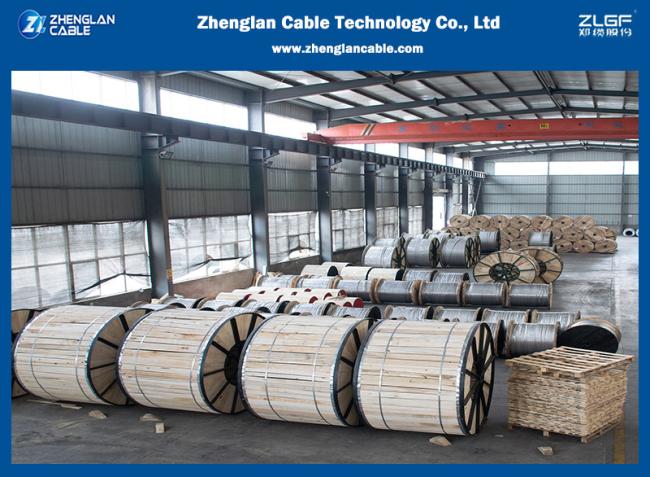

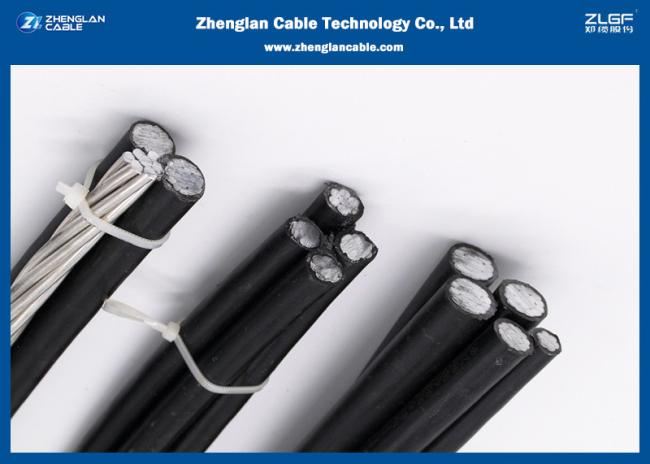

Products show
Why Choose Zhenglan Cable
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
- Strict quality control system, excellent quality with reasonable price.
