Aerial Bundled Cable With Public Lighting Cable AAC/XLPE, AAAC/XLPE 3x50+NA1x35+1x16mm2
Aerial bundled cable with public lighting cable AAC/XLPE, AAAC/XLPE 3x50+NA1x35+1x16mm2 Cable application:
Aerial bundled cable with public lighting cable AAC/XLPE, AAAC/XLPE 3x50+NA1x35+1x16mm2 are to be used for overhead secundary distribution networks with voltages up to 1000V.
Maximum operating temperature: 90℃；
Overload maximum core temperature:130 °C
Short-circuit max. conductor temperature: 250 °C
Construction:
1. Phase cable Conductor: Aluminium 1350, class 2; Insulation: Cross linked polyethylene XLPE.
2. Public lighting: Aluminium 1350 insulated with cross-linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
Colour: Black,
Core identification: phase cable 111, 222, 333; neutral cable: COMPANY NAME CAAI 0,6/1 kV - (Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Sequential length.
Reference standards
NTP-IEC 60228: Conductors of insulated cables.
NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.
Aerial bundled cable with public lighting cable AAC/XLPE, AAAC/XLPE 3x50+NA1x35+1x16mm2 Technical data
| Nb. of phase cores | Phase Cond. Cross Section (mm2) | Phase cable Insulation thick.(mm) | Public lighting cable(mm2) | Public Insulation thick.(mm) | Neutral Cond.section (mm2) | Insulat. Thick. neutral cable. (mm) | Outer diameter (mm) | Approximate weight (kg/km) |
| 3 | 50 | 1.52 | 16 | 1.14 | 35 | 1.14 | 29.1 | 733 |

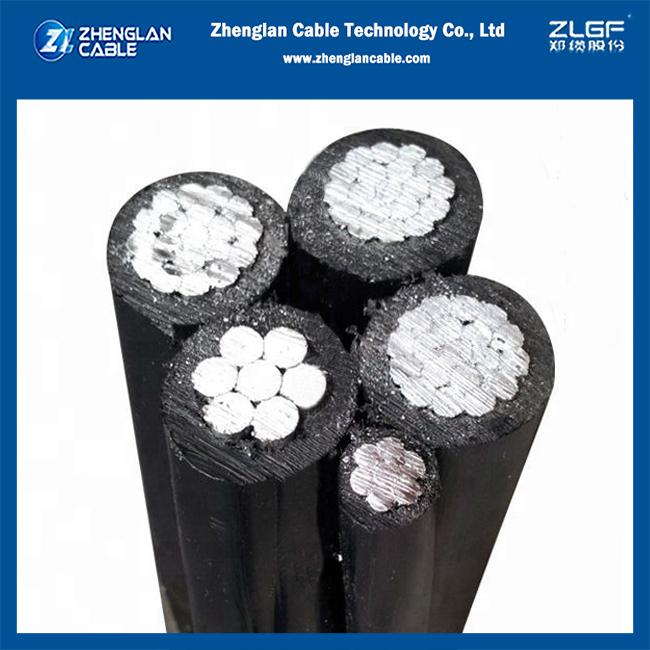

Aerial bundled cable with public lighting cable AAC/XLPE, AAAC/XLPE 3x50+NA1x35+1x16mm2 Reference images
