Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Cable application:

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Cable are designed for overhead secundary distribution networks with voltages up to 1000V.

Maximum operating temperature: 90℃；

Overload maximum core temperature:130 °C

Short-circuit max. conductor temperature: 250 °C

Electrical voltage test
The cables shall be subjected to an alternating voltage of 4 kV, with a frequency between 48 Hz and 62 Hz, for 5 minutes and shall not be perforated. Alternatively, a direct voltage of 9.6 kV may be applied.

Construction:
1. Phase cable Conductor: Aluminium 1350, class 2; Insulation: Cross linked polyethylene XLPE.
2. Public lighting: don't have
3. Insulated neutral messenger: don't have

Colour: Black,

Core identification: one cable print as 111 or nothing; one cable with "COMPANY NAME CAAI 0,6/1 kV - (Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Sequential length"

Reference standards
NTP-IEC 60228: Conductors of insulated cables.
NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Technical data

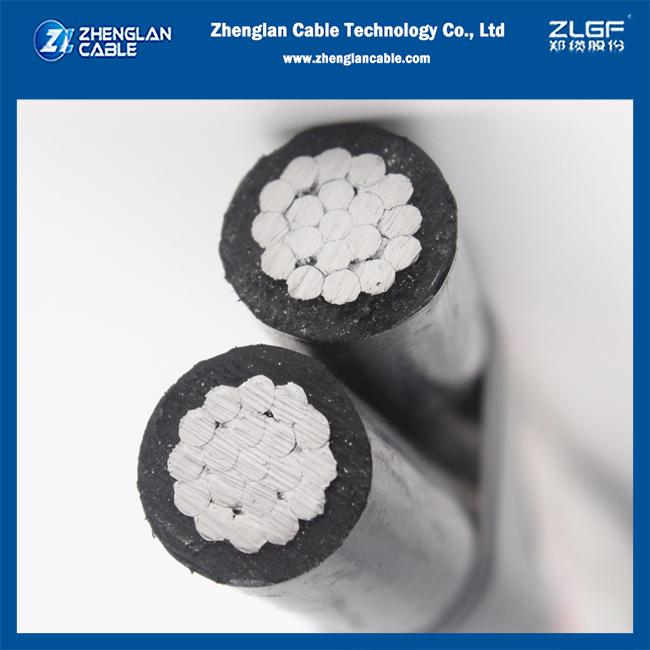

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Reference images
