AL/XLPE Insulation Low Voltage Aerial Bundle Conductor ABC Cable 3x25 54.6 16mm2 NFC 33-209 for B2B Purchasing
NFC 33-209 Aerial Bundle Conductor ABC Cable 3x95+54.6+16mm2
ABC Cable 3x95+54.6+16mm2 Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.
ABC Cable 3x95+54.6+16mm2 Standard
Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209
CONSTRUCTION :
Phase Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE).
Neutral Messenger
Multistrand round Aluminium Alloy conductor is insulated with black weather resistant cross-linked thermosetting
polyethylene (XLPE).
Public Lighting Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE) conforming to NFC 33-209.
TECHNICAL DATA :
ABC Cable 3x95+54.6+16mm2 Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -15 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 15 × Ø of cable |
PARAMETER :
ABC Cable 3x95+54.6+16mm2 Parameter
| Aerial Bundle Cable 3x95+1x54.6+1x16mm2 | ||
| Phase conductor | ||
| Cross section area | mm2 | 95 |
| Number of wires | No | 19 |
| Insulation thickness | mm | 1.8 |
| D.C. Resistance at 20℃ | Ω/km | 0.32 |
| Messager conductor | ||
| Cross section area | mm2 | 54.6 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.6 |
| D.C. Resistance at 20℃ | Ω/km | 0.63 |
| Minium Breaking Strength | daN | 1660 |
| Public lighting conductor | ||
| Cross section area | mm2 | 16 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.2 |
| D.C. Resistance at 20℃ | Ω/km | 1.91 |
| Cable Overall Diameter | mm | 41.9 |
| Cable Weight | kg/km | 1243 |

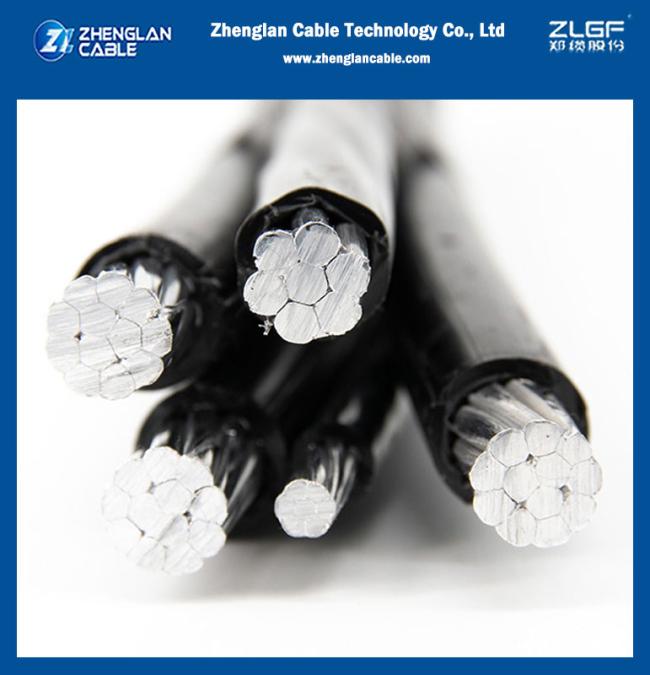

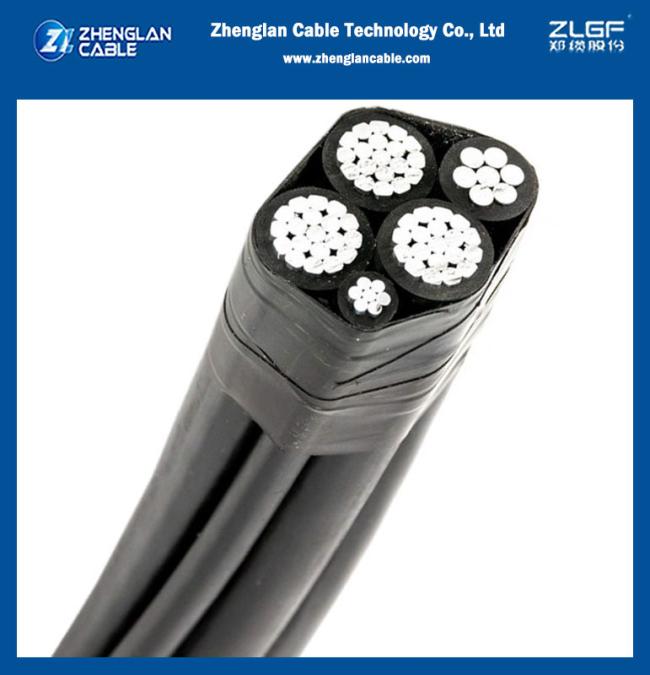

product images
1.1kv AAC/XLPE overhead insulated cable aerial bundled cable 1x25sqmm IEC60502-1 factory Images
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
