1KV ABC Cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474
Price:
Negotiable
MOQ:
1000-5000m depends on the specificaion
Delivery Time:
10 days
Brand:
Zhenglan Cable
Product Description
1KV ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474
Aerial bundled cables (also simply as ABC) are overhead power lines using several insulated phase conductors bundled tightly together, with or without a bare/insulated neutral conductor and/or insulated lighting cable .
They are more commonly used in temporary power installations such as an on-base buildings
1KV ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474 structure
Conductor: Phase: Aluminium conductor, round stranded compressed (RM). Neutral: ACSR
Insulation: XPLE compound, UV-resistant.
Core Identification: 1, 2, 3.........
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 3.5 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Standard: ANSI/ICEA S-76-474,
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.

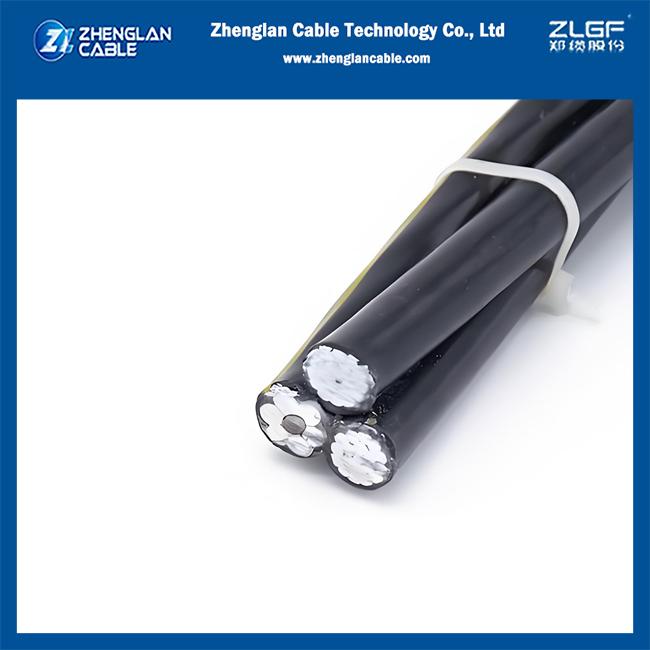

1KV ABC cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474 images
