0.6/1kV Overhead Insulated Cable NFC 33-209 Standard XLPE Insulation ABC Cable 3X50mm2+54.6mm2
Product Description:
ABC Cable is mainly used power grid reconstruction, as well as power transmission in urban areas and forest regions, significantly enhancing the safety and reliability of power grids. Its types include duplex, triplex, and quadruplex service drops. The conductor materials are usually aluminum or copper, and the insulation materials can be XLPE, PE, or PVC. A typical structure includes a 54.6mm² aluminum alloy messenger wire, phase wires, and lighting wires, allowing for easy identification through printed markings on the cable.
Construction
Phase Conductor: Class 2 Circular compacted stranded Aluminium
Neutral Conductor: Class 2 Circular compacted stranded Aluminium
Insulation: XLPE (Cross-linked polyethylene) Black color,Weather and UV resistant.
Assembly: Cores and the neutral, conductor, and stranded together in a right-hand lay. Additionally, 1, 2, or 3 cores of reduced cross-section can be co-stranded.
Standard
NFC 33-209
Technical Parameters:
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -30 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 20 × Ø of cable |
| NUMBER OF CORES X NOMINAL CROSS SECTION | MAX. CONDUCTOR- RESISTANCE | MIN. BREAKING LOAD OF CONDUCTOR STRAND | CURRENT RATING IN THE AIR | OUTER DIAMETER | TOTAL WEIGHT |
| MM2 | OHM/KM | KN | A | MM | KG/KM |
| 1x54.6 RM + 3x50 RM | 0.630/0.641 | 7.6 | 165 | 28.2 | 741 |
| 1x54.6 RM + 3x50 RM + 1x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 31.6 | 806 |
| 1x54.6 RM + 3x50 RM + 2x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 38.6 | 875 |
| 1x54.6 RM + 3x50 RM + 3x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 40.4 | 940 |
| 1x54.6 RM + 3x50 RM + 1x25 RM | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 | 31.6 | 841 |

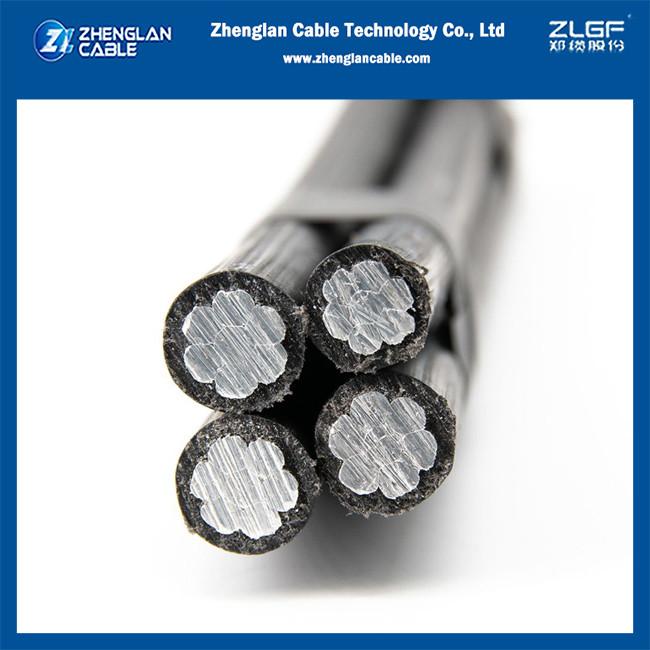

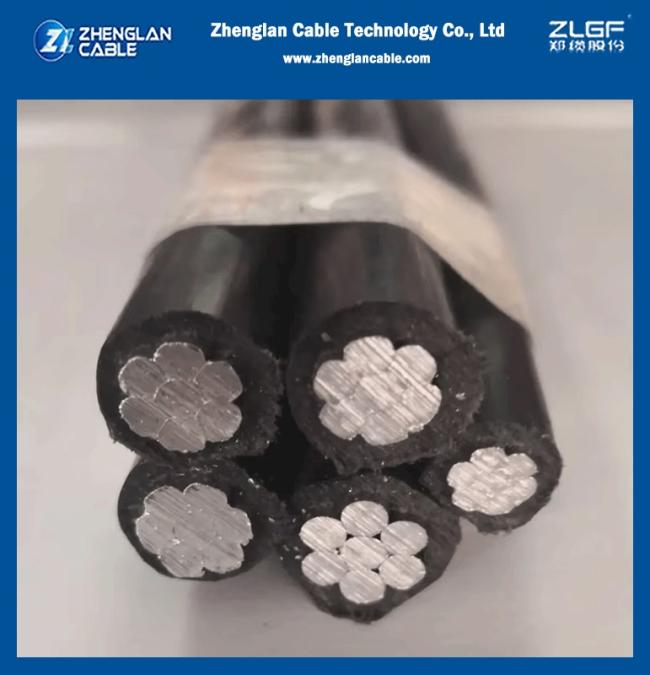

Image:

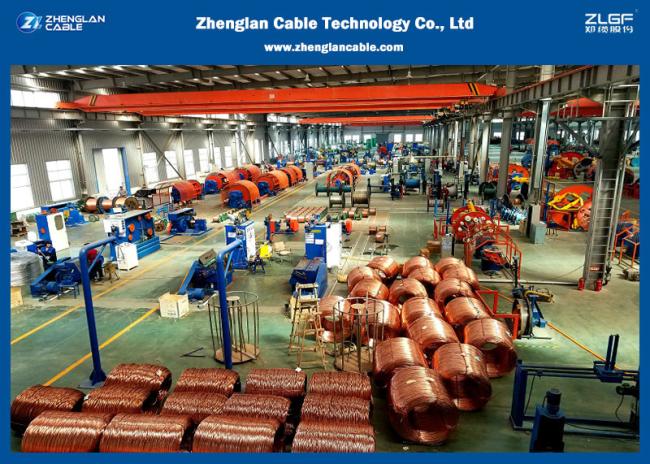

Factory show:
About us:
Zhenglan Cable Technology Co., Ltd (www(.)zhenglancable(.)com), is CE and ISO approved China cable and wire manufacturer with about 20 years' experience located in Zhengzhou, Henan province, central China.
-
OEM/ODM services provided;
-
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
-
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
-
Registered capital of $30 million and factory covers an area of 60,000㎡;
-
Advanced test equipment and procedures, 100% inspection before factory;
-
Enough stocks and the higest efficient shipping time guarranteed;
-
Professional pre-sales and after-sales services provided
FAQ:
Q: What is the brand name of this overhead insulated cable product?
A: The brand name is Zhenglan Cable.
Q: What is the model number of this product?
A: The model number is Aerial Bundled Cable.
Q: Where is this product manufactured?
A: This product is manufactured in Henan, China.
Q: What certifications does this product have?
A: This product is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1000 meters.
