1KV Aerial bunched cable ABC cable AAC/XLPE 4x16mm2 SANS 1418-1/PIESA1004-1
Price:
Negotiable
MOQ:
1000-5000m depends on the specificaion
Delivery Time:
10 days
Brand:
Zhenglan Cable
Product Description
1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1
1KV Aerial bunched cable ABC cable AAC/XLPE 4x16mm2 SANS 1418-1/PIESA1004-1 are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
1KV Aerial bunched cable ABC cable AAC/XLPE 4x16mm2 SANS 1418-1/PIESA1004-1 structure
Construction:
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Core Identification: 1, 2, 3, 4 or phase 1, phase 2, phase 3, phase 4
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 4 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
1KV Aerial bunched cable ABC cable AAC/XLPE 4x16mm2 SANS 1418-1/PIESA1004-1 technical data
| No. of cores and cross sectional area(mm2) | Average insulation thickness(mm) | Approximate diameter of cable(mm) |
Max DC resistance at 20℃(Ω/km) |
Approx. weight (kg/km) |
| 4x16 | 1.2 | 18 | 1.91 | 280 |

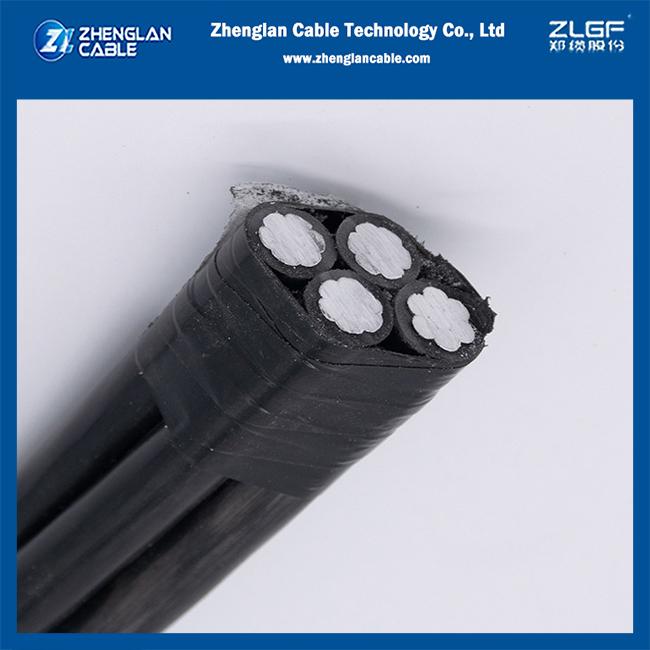

1KV Aerial bunched cable ABC cable AAC/XLPE 4x16mm2 SANS 1418-1/PIESA1004-1 images
