1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
Price:
Negotiable
MOQ:
1000-5000m depends on the specificaion
Delivery Time:
10 days
Brand:
Zhenglan Cable
Product Description
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 are intended for application in distribution systems designed to provide electricity mainly to domestic customers whose consumption is low to moderate. It might also be suitable for other applications in electricity distribution networks.
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 construction
Phase cable
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3
Neutral cable
1. conductor: alluminum alloy
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.
Printing content: company name, meter mark, voltage, size, ......
Lighting cable: with or without identification
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 4 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 technical data
| No. of cores and cross sectional area(mm2) | Average insulation thickness(mm) | Approximate diameter of cable(mm) |
Max DC resistance at 20℃(Ω/km) |
Approx. weight (kg/km) |
| 3x95+1x70+1x16 | phase cable: 1.8mm; neutral cable: 1.6mm; lighting cable: 1.2mm | 43.9 | 1.91 | 1420 |

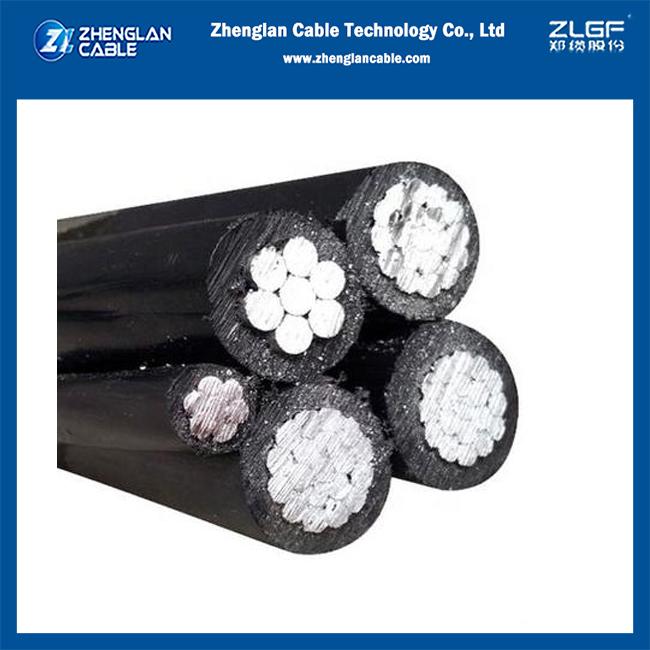

1KV Aerial bundled cable manufacturer ABC 3x95+1x70+1x16mm2 SANS 1418-1/PIESA1004-1 images
