Medium Voltage Underground Cable 18/30/36kV NFC 33 226 with 3Cores 1Core 120mm2 Alu Conductor
Price:
Negotiable
MOQ:
1000m
Delivery Time:
Both According To Different Products, Product Sizes, And Production Construction. Welcome To Contact Us For Further Communication.
Brand:
Zhenglan Cable
Product Description
Cable Hta Torsade Souterrain 18/30/36kv NFC 33 226 3Cores 1Core 120mm2 Alu Cis Medium Voltage cable
Product Description
NFC 33226 NFC 33-226 CIS HTA Underground Direct Burial Cable
Cable Construction
- Conductor: Circular Stranded Aluminum or Copper Conductor
- Conductor screen: Non-metallic, semi-conducting compound
- Insulation: XLPE (Cross-linked Polyethylene)
- Insulation screen: Non-metallic, semi-conducting compound, extruded strippable grooved elastomer
- Longitudinal water tightness: Swelling powder
- Metallic screen: Aluminium plastic tape (AL/PET)
- Outer Sheath: PE Sheath
Color: Black
Assembly: Cable HTA CIS is used for public power distribution network 1~35KV.
Features
- Maximum conductor temperature in normal operation: 90˚C
- Short circuit temperature (5 seconds maximum duration): Shall not exceed 250˚C
- Ambient installation temperature range: -10 ~ 50 ˚C
- Weather resistance: AN3/AF2
- Water proof: AD8
- Mechanical resistance to impacts: AG4
Technical Parameters
| Cores and nominal cross-section | Min. number of wires | Nominal insulation thickness | Nominal AL/PET | Nominal | Approx. overall diameter | Approx. weight | Max. DC resistance of the conductor |
| tape thickness | sheath thickness | at 20℃ | |||||
| mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
| 8.7/15(17.5)kV | |||||||
| 1×50 | 6 | 4.5 | 0.2 | 2 | 25.5 | 641 | 0.641 |
| 1×70 | 12 | 4.5 | 0.2 | 2 | 27.2 | 747 | 0.443 |
| 1×95 | 15 | 4.5 | 0.2 | 2 | 29 | 870 | 0.32 |
| 1×120 | 15 | 4.5 | 0.2 | 2 | 30.2 | 969 | 0.253 |
| 1×150 | 15 | 4.5 | 0.2 | 2 | 31.7 | 1085 | 0.206 |
| 1×185 | 30 | 4.5 | 0.2 | 2 | 33.4 | 1232 | 0.164 |
| 1×240 | 30 | 4.5 | 0.2 | 2.1 | 35.9 | 1470 | 0.125 |
| 1×300 | 30 | 4.5 | 0.2 | 2.1 | 38.1 | 1700 | 0.1 |
| 1×400 | 53 | 4.5 | 0.2 | 2.2 | 41 | 2029 | 0.0778 |
| 1×500 | 53 | 4.5 | 0.2 | 2.3 | 44.7 | 2444 | 0.0605 |
| 1×630 | 53 | 4.5 | 0.2 | 2.4 | 48.6 | 2960 | 0.0469 |
Applications
These power cables belong to the new generation of cables designed for public medium voltage distribution (HTA). They are suitable for direct installation on the ground, in water, outdoors, indoors, and within cable ducts.

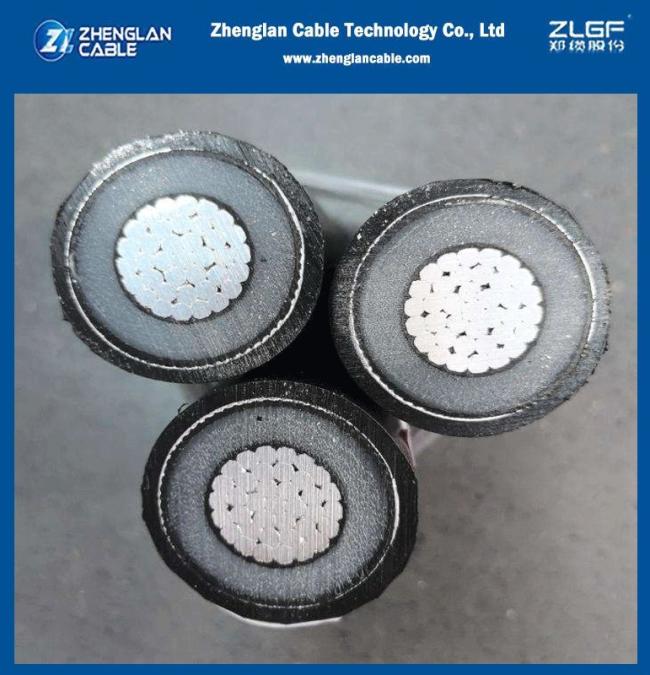

Product Images
Frequently Asked Questions
Q: What is the brand name of the overhead insulated cable?
A: The brand name of the overhead insulated cable is Zhenglan Cable.
Q: What is the model number of the overhead insulated cable?
A: The model number of the overhead insulated cable is Medium Voltage Overhead Cables.
Q: Where is the overhead insulated cable manufactured?
A: The overhead insulated cable is manufactured in China.
Q: What certifications does the overhead insulated cable have?
A: The overhead insulated cable is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for the overhead insulated cable?
A: The minimum order quantity for the overhead insulated cable is 1000 meters.
