Medium Voltage Cables NFC 33-226 Three – core cable AL/XLPE/PE Overhead Insulated Cable The Ultimate Solution for Overhead Power Distribution
Product Description:
1. Conductor: Circular Stranded Aluminum or Copper Conductor
2. Conductor screen: Non-metallic, semi-conducting compound
3. Insulation: XLPE (Cross-linked Polyethylene)
4. Insulation screen: Non-metallic, semi-conducting compound, extruded strippable grooved elastomer
5. Longitudinal water tightness: Swelling powder
6. Metallic screen: Aluminium plastic tape (AL/PET)
7. Outer Sheath: PE Sheath
Color: Black
Assembly: Cable HTA CIS is used for public power distribution network 1~35KV.
Features:
Characteristics
- Maximum conductor temperature in normal operation: 90˚C.
- Short circuit temperature (5 seconds maximum duration): Shall not exceed 250˚C.
- Ambient installation temperature, range: -10 ~ 50˚C.
- Weather resistance: AN3/AF2
- Waterproof: AD8
- Mechanical resistance to impacts: AG4
- Minimum bending radius:
Technical Parameters:
| No. of cores and nominal cross-section | Min. number of wires | Nominal insulation thickness | Nominal AL/PET | Nominal | Approx. overall diameter | Approx. weight | Max. DC resistance of the conductor |
| tape thickness | sheath thickness | at 20℃ | |||||
| mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
| 6/10(12)kV | |||||||
| 3×1×50 | 6 | 3.4 | 0.2 | 2 | 49.9 | 1596 | 0.641 |
| 3×1×70 | 12 | 3.4 | 0.2 | 2 | 53.6 | 1893 | 0.443 |
| 3×1×95 | 15 | 3.4 | 0.2 | 2 | 57.5 | 2240 | 0.32 |
| 3×1×120 | 15 | 3.4 | 0.2 | 2 | 60 | 2525 | 0.253 |
| 3×1×150 | 15 | 3.4 | 0.2 | 2 | 63.3 | 2854 | 0.206 |
| 3×1×185 | 30 | 3.4 | 0.2 | 2 | 67 | 3316 | 0.164 |
| 3×1×240 | 30 | 3.4 | 0.2 | 2 | 71.9 | 4003 | 0.125 |
| 3×1×300 | 30 | 3.4 | 0.2 | 2 | 76.7 | 4673 | 0.1 |
| 3×1×400 | 53 | 3.4 | 0.2 | 2.2 | 83.4 | 5678 | 0.0778 |
| 3×1×500 | 53 | 3.4 | 0.2 | 2.2 | 90.9 | 6842 | 0.0605 |
| 3×1×630 | 53 | 3.4 | 0.2 | 2.4 | 99.8 | 8412 | 0.0469 |
Applications:
These power cables belong to the latest generation designed for public medium voltage distribution, known as HTA cables. They are suitable for direct installation in various environments such as on the ground, in water, outdoors, indoors, and in cable ducts.

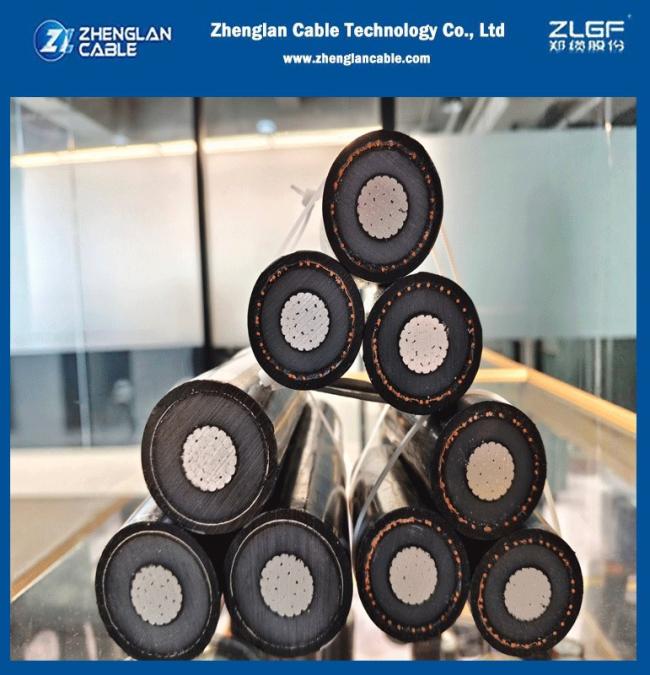

Image:
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is Zhenglan Cable.
Q: What is the model number of this product?
A: The model number of this product is Medium Voltage Overhead Cables.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What certifications does this product have?
A: This product is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1000 meters.
