Medium Voltage Cables NFC 33-226 Single core cable AL/XLPE/PE for Overhead Insulated Cable
Product Description:
NFC 33226 NFC 33-226 CIS HTA Underground Direct Burial Cable
Cable Construction
- Conductor: Circular Stranded Aluminum or Copper Conductor
- Conductor screen: Non-metallic, semi-conducting compound
- Insulation: XLPE (Cross-linked Polyethylene)
- Insulation screen: Non-metallic, semi-conducting compound, extruded strippable grooved elastomer
- Longitudinal water tightness: Swelling powder
- Metallic screen: Aluminium plastic tape (AL/PET)
- Outer Sheath: PE Sheath
Color: Black
Assembly: Cable HTA CIS is used for public power distribution network 1~35KV.
Features:
Characteristics
● Maximum conductor temperature in normal operation: 90˚C.
● Short circuit temperature (5 seconds maximum duration): Shall not exceed 250˚C.
● Ambient installation temperature, range: -10 ~ 50 ˚C.
● Weather resistance: AN3/AF2
● Waterproof: AD8
● Mechanical resistance to impacts: AG4
● Minimum bending radius:
Technical Parameters:
| Cores and nominal cross-section | Min. number of wires | Nominal insulation thickness | Nominal AL/PET | Nominal | Approx. overall diameter | Approx. weight | Max. DC resistance of the conductor |
| tape thickness | sheath thickness | at 20℃ | |||||
| mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
| 18/30(36)kV | |||||||
| 1×50 | 6 | 8 | 0.2 | 2 | 32.7 | 973 | 0.641 |
| 1×70 | 12 | 8 | 0.2 | 2 | 34.4 | 1097 | 0.443 |
| 1×95 | 15 | 8 | 0.2 | 2.1 | 36.4 | 1254 | 0.32 |
| 1×120 | 15 | 8 | 0.2 | 2.1 | 37.6 | 1366 | 0.253 |
| 1×150 | 15 | 8 | 0.2 | 2.2 | 39.3 | 1514 | 0.206 |
| 1×185 | 30 | 8 | 0.2 | 2.2 | 41 | 1682 | 0.164 |
| 1×240 | 30 | 8 | 0.2 | 2.3 | 43.5 | 1948 | 0.125 |
| 1×300 | 30 | 8 | 0.2 | 2.4 | 45.9 | 2223 | 0.1 |
| 1×400 | 53 | 8 | 0.2 | 2.5 | 48.8 | 2586 | 0.0778 |
| 1×500 | 53 | 8 | 0.2 | 2.6 | 52.5 | 3046 | 0.0605 |
| 1×630 | 53 | 8 | 0.2 | 2.7 | 56.4 | 3609 | 0.0469 |
Applications:
This new generation of power cables is specifically designed for public medium voltage distribution, known as HTA. They are suitable for a variety of applications, including direct installation on the ground, in water, outdoors, indoors, and in cable ducts.

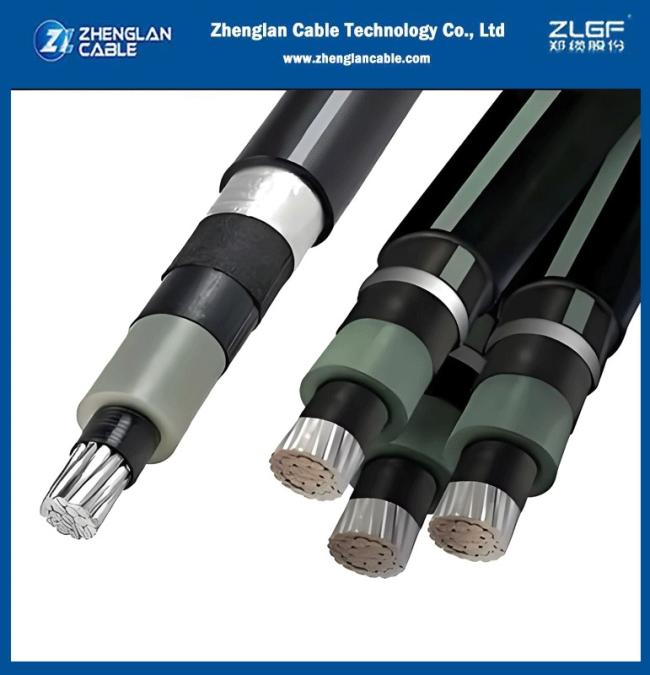

Image:
FAQ:
Q: What is the brand name of this overhead insulated cable product?
A: The brand name is Zhenglan Cable.
Q: What is the model number of the overhead insulated cable?
A: The model number is Medium Voltage Overhead Cables.
Q: Where is this overhead insulated cable manufactured?
A: This cable is manufactured in China.
Q: What certifications does this overhead insulated cable have?
A: This cable is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for this overhead insulated cable?
A: The minimum order quantity is 1000 meters.
