300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire
300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire
Application:
RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.
RV Cable Data Sheet
300/500V
| Nominal section area(mm²) | No ./Dia of Strand (mm) |
Nom. Thickness of insulation (mm) |
Average OD Max. (mm) |
Max. DC conductor resistance at 20℃ (Ω/km) |
Min. Insulating resistance at 70℃ (MΩ·km) |
| 1*0.5 | 16/0.2 | 0.6 | 2.6 | 9.1 | 0.013 |
| 1*0.75 | 24/0.2 | 0.6 | 2.8 | 12.2 | 0.011 |
| 1*1.0 | 32/0.2 | 0.6 | 3.0 | 15.1 | 0.010 |
RV-90℃
| Nominal section area(mm²) | Core no./dia(mm) |
Max diameter (mm) |
Insulation thickness (mm) |
Reference weight (kg/km) |
90℃Minimum insulation electric resistance(mΩ/km) |
| 1*0.5 | 16/0.2 | 2.5 | 0.6 | 10.2 | 0.013 |
| 1*0.75 | 24/0.2 | 2.7 | 0.6 | 13.5 | 0.012 |
| 1*1.0 | 32/0.2 | 2.8 | 0.6 | 16.4 | 0.010 |
| 1*1.5 | 30/0.25 | 3.4 | 0.7 | 21.4 | 0.009 |
| 1*2.5 | 49/0.25 | 4.1 | 0.8 | 34.5 | 0.009 |
450/750V
| Nominal section area(mm²) | No ./Dia.of Strand mm |
Nom. Thickness of insulation mm |
Average OD (Max.) mm |
Max. DC conductor resistance at 20℃ Ω/km |
| 1*1.5 | 30/0.25 | 0.7 | 3.5 | 13.3 |
| 1*2.5 | 50/0.25 | 0.8 | 4.2 | 7.98 |
| 1*4 | 77/0.26 | 0.8 | 4.8 | 4.95 |
| 1*6 | 78/0.31 | 0.8 | 6.3 | 3.30 |
| 1*10 | 84/0.39 | 1.0 | 7.6 | 1.91 |
| 1*16 | 133/0.39 | 1.0 | 8.8 | 1.21 |
| 1*25 | 189/0.41 | 1.2 | 11.0 | 0.78 |
| 1*35 | 259/0.41 | 1.2 | 12.5 | 0.554 |
| 1*50 | 361/0.41 | 1.4 | 14.5 | 0.386 |
| 1*70 | 337/0.51 | 1.4 | 17.0 | 0.272 |
| 1*95 | 494/0.49 | 1.6 | 17.5 | 0.206 |

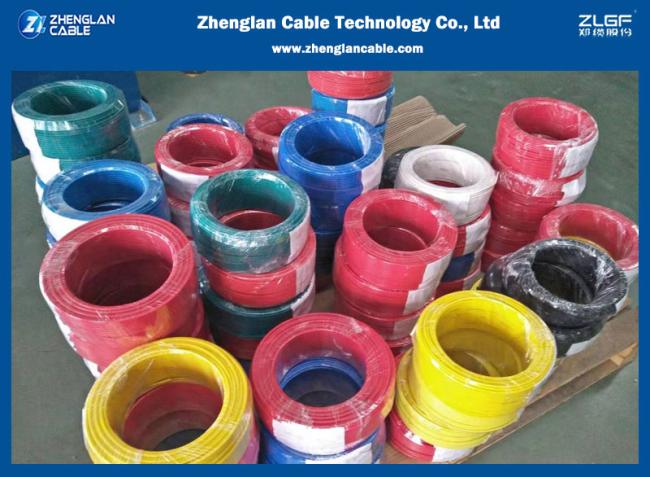

300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire pictures:
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
