ACSR16 6/1.84 1/1.84 AL16mm2 ST2.76mm2 Overhead Bare Conductor IEC61089
Standards & References
ACSR bare conductor meets or exceeds the following ASTM specifications:
- B230 Aluminum 1350-H19 Wire for Electrical Purposes
- B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
- B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
- B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

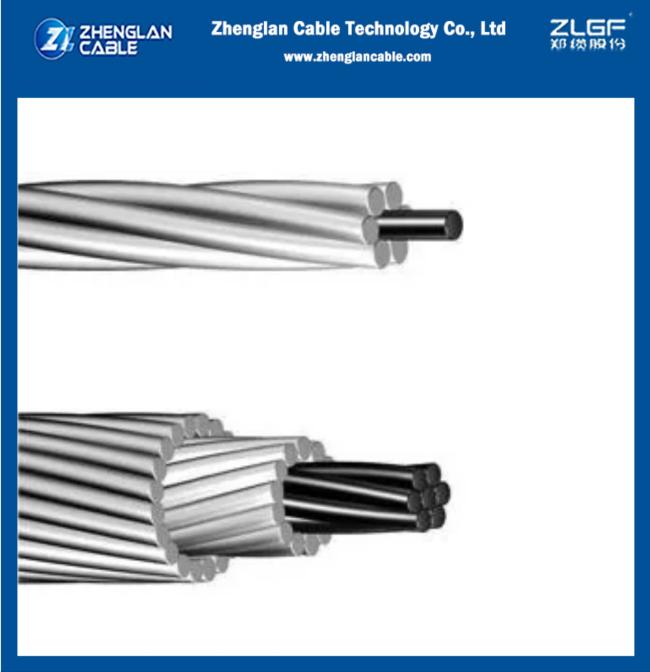

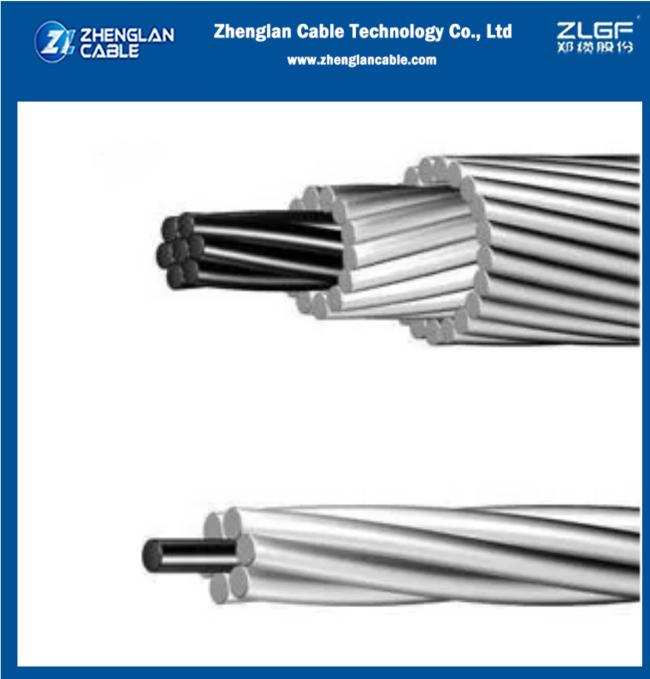

Construction
- Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized
- Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.
- For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
- Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease
- ACSR conductor is also available in non-specular.
| Code | Nominal Area | Stranding | Overall Diameter |
Weight | Breakign Load |
Electrical Resistance @20º |
Current Rating* |
|||||
| AL | Steel | Total | AL | Steel | ||||||||
| mm2 | mm2 | mm2 | No.×mm | No.×mm | mm | Kg/Km | KN | Ω/Km | A | |||
| 16 | 16 | 2.67 | 18.7 | 6/1.84 | 1/1.84 | 5.52 | 64.6 | 6.08 | 1.7934 | 85 | ||
