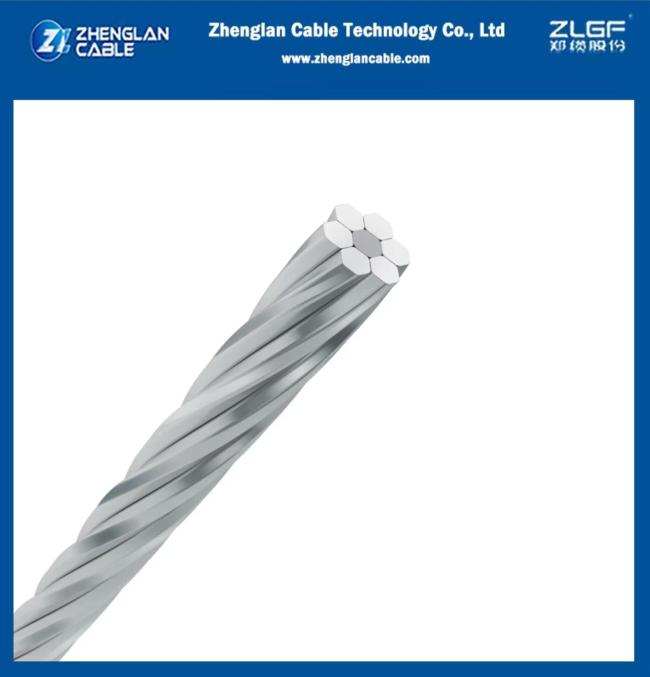

ACSR Bare Conductor Aluminum Conductor Steel Reinforced 120/20mm2 AL26/2.44 ST7/1.90 BS215
Price:
0.5-80USD/m
MOQ:
Negotiable
Delivery Time:
15 days
Brand:
Zhenglan Cable
Product Description
Applications

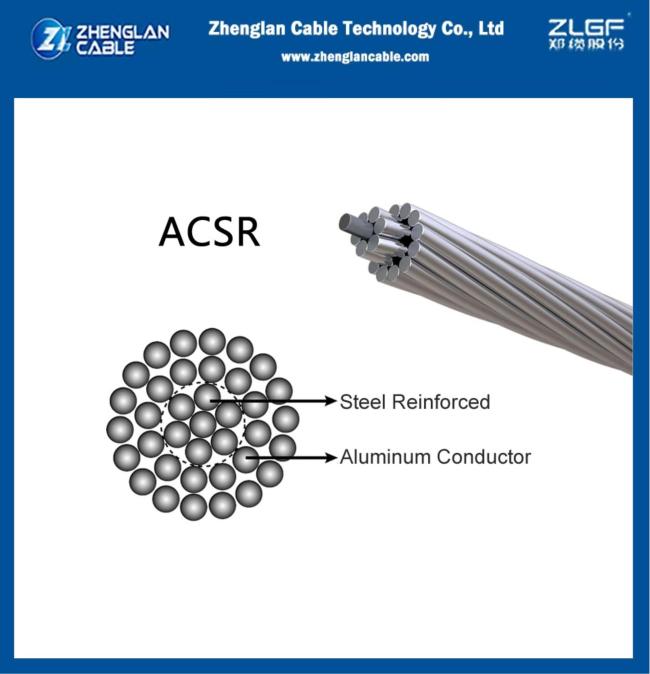

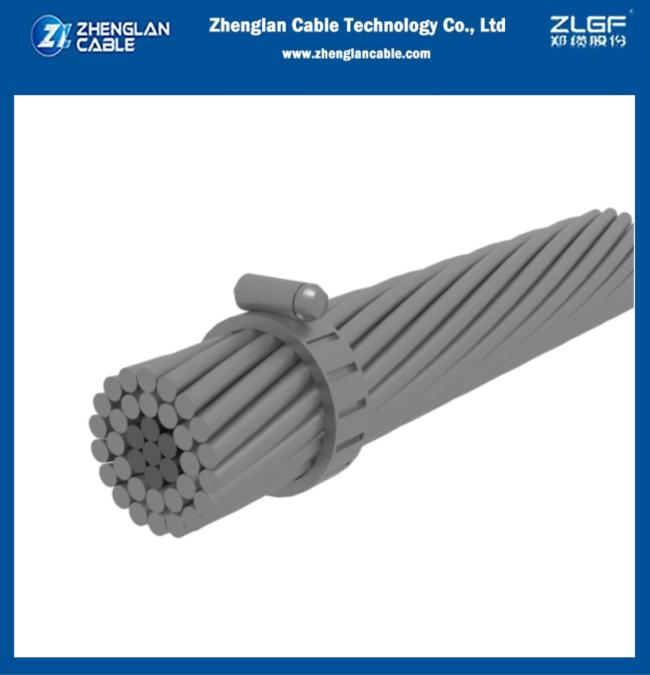

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
Conductor ACSR have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Model NO.
ACSR conductor 120/20 mm2
Application
Overhead
Conductor Material
Aluminum
Sheath Material
None
Insulation Material
None
Material Shape
Round Wire
Range of Application
Overhead Distributing Line
Certification
ISO9001, CE, CCC
Brand
Zhenglan Cable
Section Area
120/20 mm2
Code Name
ACSR 120/20 mm2
Material
Aluminum Condcutor
Strands
26+7 Strands
Standards
DIN 48204
Transport Package
Wooden Steel Drum
Specification
2.2m size Drum
Trademark
Zhenglan Cable
Origin
China
HS Code
7614100000
Production Capacity
800km Per Month
Technical Data Sheet:
| Code | Calculated area | Strand/
Dia. |
O.D. | Linear mass | Strength | Resistance
at 20℃ |
|||||
| Al/St. | Al. | Steel | Total | Al. | Steel | Al. | St. | Total | |||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | Ω/km |
| 120/20 | 121.06 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 4565 | 0.2374 |
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
