ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215
Price:
0.5-80USD/m
MOQ:
Negotiable
Delivery Time:
15 days
Brand:
Zhenglan Cable
Product Description
Application
The cables are designed for aerial power transmission lines. It`s advantageous for ACSR to be put up across a valley or river or under other various special geographic conditions.
Product Features
(1). Easy to set up and maintain;
(2). Low cost and high transmission capacity;
(3). Good electrical conductivity,;
(4). High mechanical strength and tensile strength, increased distance between two towers

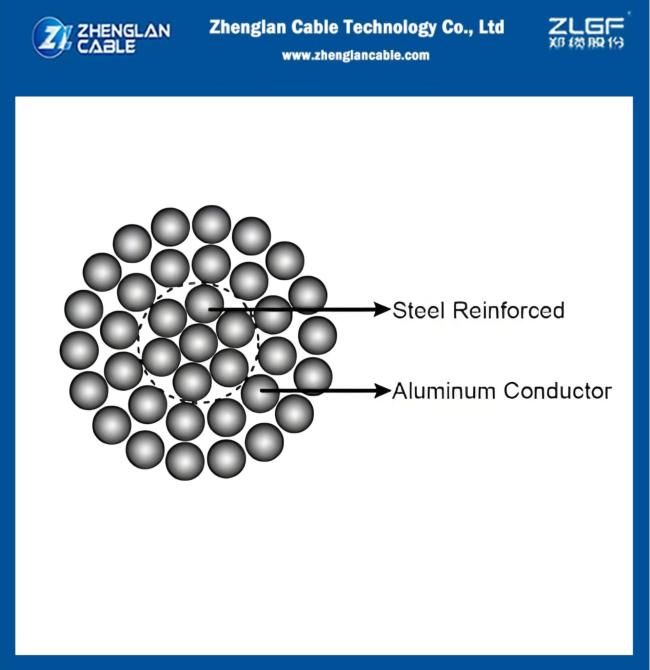

Structure
Steel core aluminum stranded wire is made by twisting aluminum wire and steel wire, It is a steel core and an aluminum wire wrapped around the steel core by twisting; the steel core mainly plays the role of increasing strength, and the aluminum stranded wire mainly plays the role of transmitting electrical energy
Model NO.
DIN ACSR Conductor
Application
Overhead
Conductor Material
Aluminum and Steel
Sheath Material
No Sheath
Insulation Material
Bare
Material Shape
Round Wire
Range of Application
Overhead, Industrial, Power Station
Certification
ISO9001, CE, CCC, RoHS
Brand
Zhenglan Cable
Certifications
ISO9001, Ce, CCC, ISO14001, Pccc
Standard
ASTM, Icea, IEC, BS, NFC, GB/T, AS/NZS
Rated Vlotage
LV, Mv Hv
Delivery Time
15 Days
Shipping Term
Express or Sea
Experience
More Than 20 Years
Trade Term
Fob, CIF, CFR
Transport Package
Wooden Drum or or According to Your Request
Specification
95/55mm2 ACSR Conductor
Trademark
Zhenglan Cable
Origin
Henan, China
HS Code
7614900000
Production Capacity
2500km/Month
| Code | Calculated area | Strand/
Dia. |
O.D. | Linear mass | Strength | Resistance
at 20℃ |
|||||
| Al/St. | Al. | Steel | Total | Al. | Steel | Al. | St. | Total | |||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | Ω/km |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 266 | 446 | 712 | 7935 | 0.2992 |
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
