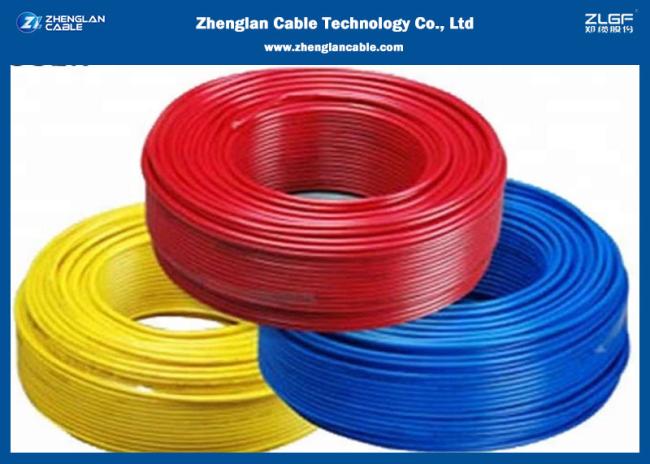

RV Twin And Earth Wire ISO 9001 2015 Certificated , (450/750) PVC Insulated Cables
RV Twin And Earth Wire ISO 9001:2015 Certificated/(450/750) PVC insulated cables
Twin And Earth Cable Application:
RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.
Twin And Earth Cable Construction characteristics
Conductor: flexible conductor class 5 (China GB/T 3956 class 5 or
IEC60228 class 5)
Insulation: PVC
Rated voltage and standard:
450/750V 60227 IEC02 or GB/T5023.3-2008
Packaging: 100m/roll or as request
Twin And Earth Cable Data sheet
450/750V
| Nominal section area(mm²) | No ./Dia. of Strand mm |
Nom. Thickness of insulation mm |
Average OD (Max.) mm |
Max. DC conductor resistance at 20℃ Ω/km |
Min. Insulating resistance at 70℃ MΩ·km |
| 1*1.5 | 30/0.25 | 0.7 | 3.5 | 13.3 | 0.010 |
| 1*2.5 | 50/0.25 | 0.8 | 4.2 | 7.98 | 0.009 |
| 1*4 | 77/0.26 | 0.8 | 4.8 | 4.95 | 0.007 |
| 1*6 | 78/0.31 | 0.8 | 6.3 | 3.30 | 0.006 |
| 1*10 | 84/0.39 | 1.0 | 7.6 | 1.91 | 0.0056 |
| 1*16 | 133/0.39 | 1.0 | 8.8 | 1.21 | 0.0046 |
| 1*25 | 189/0.41 | 1.2 | 11.0 | 0.78 | 0.0044 |
| 1*35 | 259/0.41 | 1.2 | 12.5 | 0.554 | 0.0038 |
| 1*50 | 361/0.41 | 1.4 | 14.5 | 0.386 | 0.0037 |
| 1*70 | 337/0.51 | 1.4 | 17.0 | 0.272 | 0.0032 |
