Bare Conductor ACSR Aluminium Power Cable 1192.5 MCM Bunting Transmission Line ASTM B232
ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232
Application

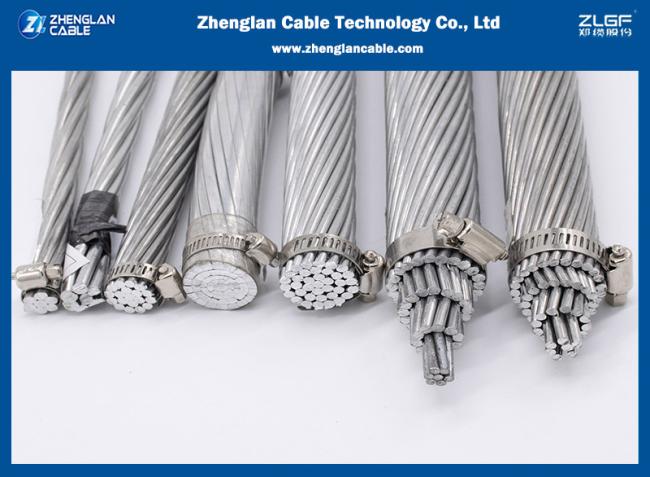

ACSR are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The inside of the ACSR is a steel "core", which mainly increases the strength; the outside is wrapped around the steel core with aluminum wire by twisting, and the aluminum strand mainly plays the role of transmitting electric energy.
Bare Conductor Electrical Cable STANDARD
BS EN50182 , IEC 61089, ASTM B232, BS 215-2, CSA C49M, GOST 839, NFC 34-120, GB/T1179-2008.
Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Construction:
- Concentric-lay stranded.
- 1 up to 4 layers aluminum wires stranded, 6 to 84 aluminum wires.
- 1 up to 3 layers steel wires as core, 1 to 37 steel wire.
- Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
- Coating od zinc, Zn-5A1-MM, high strength, Extra and Ultra available.
- Can-do both left-hand lay and right hand lay.
The ACSR has simple structure, convenient installation and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys. It has good electrical conductivity and sufficient mechanical strength and high tensile strength. , The distance of the tower pole can be enlarged and so on. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.
ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm | |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
|
linear Expansivity
|
Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
Technical date sheets
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232
| CODE NAME | AREA | STRANDING AND WIRE DIAMETER | APP. O.D | WEIGHT | BREAK LOAD | D.C. RESISTANCE | |||||
| Nominal | Alum. | Steel. | Alum. | Steel | Total | ||||||
| AWG or MCM | No. | mm | No. | mm | mm | kg/km | kg/km | kg/km | KN | Ohm/km | |
| BUNTING | 1192.5 | 45 | 4.14 | 7 | 2.76 | 33.08 | 1674.36 | 327.00 | 2001.36 | 141.79 | 0.04793 |
- overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
- 1-35kv overhead transmission line use insulated conductor
- power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
- power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
- 300/300V, 300/500V, 450/750V cotrol cable, house wire
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided
