0.6/1KV CU/XLPE/PVC 7x1.5 Sqmm Shielded Control Cable Copper Wire Braid IEC60502-1
0.6/1KV CU/XLPE/PVC 7x1.5 Sqmm Shielded Control Cable Copper Wire Braid IEC60502-1
Application:
For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercial
0.6/1kv cu/xlpe/pvc 7x1sqmm copper wire braid shielded control cable as per IEC60502-1 reference parameters:
| Cross section (mm2) | Conductor construction (No/mm) | Insulation thickness (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Sheath thickness (mm) | Overall diameter max (mm) | Overall diameter max (mm) | Max.D.C resistance of at 20℃ MΩ/Km |
| 450/750V | 6000/1000V | 450/750V | 6000/1000V | 450/750V | 6000/1000V | |||
| 2X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.3 | 9.3 | 24.5 |
| 2X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 7.6 | 9.6 | 24.5 |
| 2X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 18.1 |
| 2X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 18.1 |
| 2X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 8.6 | 10.2 | 12.1 |
| 2X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 8.9 | 10.5 | 12.1 |
| 2X2.5 | 1/1.78 | 0.7 | 0.8 | 1.2 | 1.8 | 9.8 | 11.0 | 7.41 |
| 2X2.5 | 7/0.68 | 0.7 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 2X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 10.7 | 12.7 | 4.61 |
| 2X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.3 | 4.61 |
| 2X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 11.7 | 13.7 | 3.08 |
| 2X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 12.4 | 14.4 | 3.08 |
| 2X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 15.7 | 16.3 | 1.83 |
| 3X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 24.5 |
| 3X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 24.5 |
| 3X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.1 | 18.1 |
| 3X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.4 | 10.4 | 18.1 |
| 3X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.6 | 12.1 |
| 3X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 9.4 | 11.0 | 12.1 |
| 3X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 3X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 10.8 | 12.0 | 7.41 |
| 3X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.4 | 4.61 |
| 3X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.9 | 14.0 | 4.61 |
| 3X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 13.0 | 14.5 | 3.08 |
| 3X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 13.8 | 15.2 | 3.08 |
| 3X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 16.6 | 17.2 | 1.83 |
| 4X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.4 | 24.5 |
| 4X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.7 | 24.5 |
| 4X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.8 | 18.1 |
| 4X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.0 | 11.2 | 18.1 |
| 4X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.7 | 11.4 | 12.1 |
| 4X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 10.1 | 11.8 | 12.1 |
| 4X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 11.2 | 12.4 | 7.41 |
| 4X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 11.8 | 13.0 | 7.41 |
| 4X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 12.9 | 14.5 | 4.61 |
| 4X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 13.6 | 15.2 | 4.61 |
| 4X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 14.1 | 15.7 | 3.08 |
| 4X6 | 7/1.04 | 1.0 | 1.0 | 1.5 | 1.8 | 15.0 | 16.6 | 3.08 |
| 4X10 | 7/1.35 | 1.0 | 1.0 | 1.5 | 1.8 | 18.2 | 18.8 | 1.83 |
| 5X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.9 | 11.1 | 24.5 |
| 5X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.2 | 11.5 | 24.5 |
| 5X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 9.3 | 11.6 | 18.1 |
| 5X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.7 | 12.0 | 18.1 |
| 5X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 10.5 | 12.2 | 12.1 |
| 5X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 11.0 | 12.7 | 12.1 |
| 5X2.5 | 1/1.78 | 0.8 | 0.8 | 1.5 | 1.8 | 12.7 | 13.3 | 7.41 |
| 5X2.5 | 7/0.68 | 0.8 | 0.8 | 1.5 | 1.8 | 13.4 | 14.0 | 7.41 |
| 5X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 14.0 | 15.7 | 4.61 |
| 5X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 14.8 | 16.5 | 4.61 |
| 5X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 17.1 | 3.08 |
| 5X6 | 7/1.04 | 0.8 | 1.0 | 1.5 | 1.8 | 16.3 | 18.0 | 3.08 |
| 5X10 | 7/1.35 | 1.0 | 1.0 | 1.7 | 1.8 | 20.3 | 20.5 | 1.83 |
| 6X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.9 | 24.5 |
| 6X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.9 | 12.3 | 24.5 |
| 6X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.4 | 18.1 |
| 6X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 10.5 | 12.9 | 18.1 |

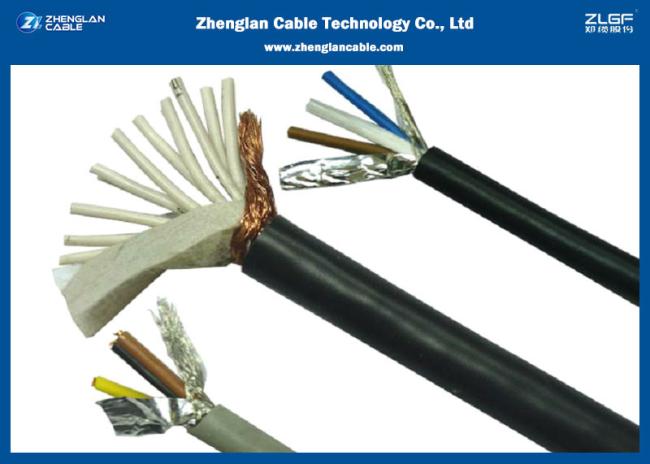

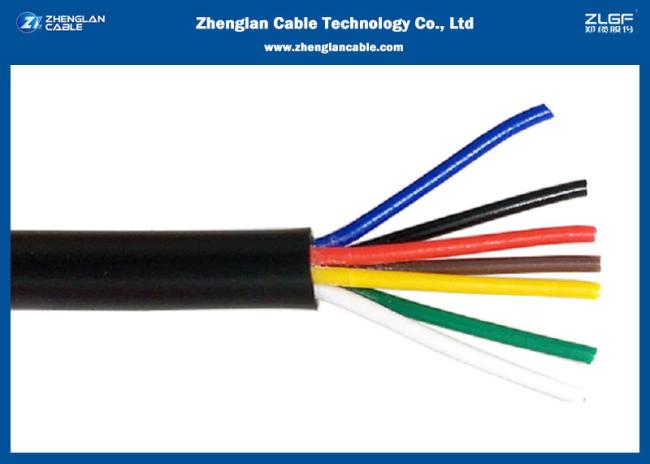

Pictures:
Why choose us:
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
