Wholesale CCS Ground Rod Conductor Wire Bare Copper Clad Steel Electric Stranded Wire for Power engineering project
Wholesale CCS Ground Rod Conductor Wire Bare Copper Clad Steel Electric Stranded Wire for Power Engineering project
Product Description:
Copper-clad steel stranded wire by a certain number of roots of copper-clad steel stranded into a single wire, mainly used in the wire industry combines the high mechanical strength of steel with the conductivity and corrosion resistance of copper.
STANDARDS :
ASTM B193 - Standard Test Method for Resistivity of Electrical Conductor Materials
ASTM B227 - Standard Specification for Hard-Drawn Copperclad Steel Wire
ASTM B228 - Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors
ASTM B258 - Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round
ASTM B910 - Standard Specification for Annealed Copperclad Steel Wire
Technical Parameters:
CCS(Conductivity 20.3%)
| Size Designation | Conductor | No.of Wires | Diameter | Min.Rated Breaking Strength | Weight | Max.D.C. Resistance at 20℃ | |||
| Area | mm | kN | kg/km | Ω/km | |||||
| AWG | mm² | in² | Wire | Cond. | Grade 40 | Grade 40 | Grade 40 | ||
| HS | DSA | ||||||||
| 19 No.5 | 318.71 | 0.494 | 19 | 4.62 | 23.11 | 216.66 | 76.68 | 2660.8 | 0.14423 |
| 19 No.6 | 252.71 | 0.3917 | 19 | 4.115 | 20.57 | 179.45 | 60.81 | 2110.2 | 0.18183 |
| 19 No.7 | 200.45 | 0.3107 | 19 | 3.665 | 18.31 | 148.29 | 48.23 | 1674.2 | 0.22937 |
| 19 No. 8 | 158.97 | 0.2464 | 19 | 3.264 | 16.31 | 122.46 | 38.27 | 1327.4 | 0.28896 |
| 19 No. 9 | 126.06 | 0.1954 | 19 | 2.906 | 14.53 | 100.86 | 30.33 | 1052.6 | 0.36452 |
| 7 No. 4 | 148.06 | 0.2295 | 7 | 5.189 | 15.57 | 96.15 | 35.61 | 1231.5 | 0.3093 |
| 7 No. 5 | 117.42 | 0.182 | 7 | 4.62 | 13.87 | 79.84 | 28.25 | 976.5 | 0.38978 |
| 7 No. 6 | 93.1 | 0.1443 | 7 | 4.115 | 12.34 | 66.1 | 22.41 | 774.3 | 0.4915 |
| 7 No.7 | 73.87 | 0.1145 | 7 | 3.665 | 11 | 54.63 | 17.76 | 614.5 | 0.6201 |
| 7 No. 8 | 58.56 | 0.09077 | 7 | 3.264 | 9.78 | 45.12 | 14.1 | 487.1 | 0.7812 |
| 7 No. 9 | 46.44 | 0.07198 | 7 | 2.906 | 8.71 | 37.16 | 11.18 | 386.2 | 0.9859 |
| 7 No. 10 | 36.83 | 0.05708 | 7 | 2.588 | 7.77 | 30.73 | 8.87 | 306.3 | 1.2422 |
| 3 No. 5 | 50.32 | 0.078 | 3 | 4.62 | 9.96 | 36.1 | 12.78 | 417.7 | 0.9082 |
| 3 No. 6 | 39.9 | 0.06185 | 3 | 4.115 | 8.86 | 29.91 | 10.14 | 331.3 | 1.1447 |
| 3 No. 7 | 31.65 | 0.04905 | 3 | 3.665 | 7.9 | 24.71 | 8.04 | 262.7 | 1.444 |
| 3 N0. 8 | 25.1 | 0.0389 | 3 | 3.264 | 7.04 | 20.41 | 6.38 | 208.3 | 1.8193 |
| 3 No. 9 | 19.9 | 0.03085 | 3 | 2.906 | 6.27 | 16.81 | 5.05 | 165.2 | 2.2957 |
| 3 No. 10 | 15.78 | 0.02446 | 3 | 2.588 | 5.59 | 13.9 | 4.01 | 131 | 2.8929 |
| 3 No. 12 | 9.93 | 0.01539 | 3 | 2.052 | 4.42 | 7.32 | 2.55 | 82.4 | 4.5573 |

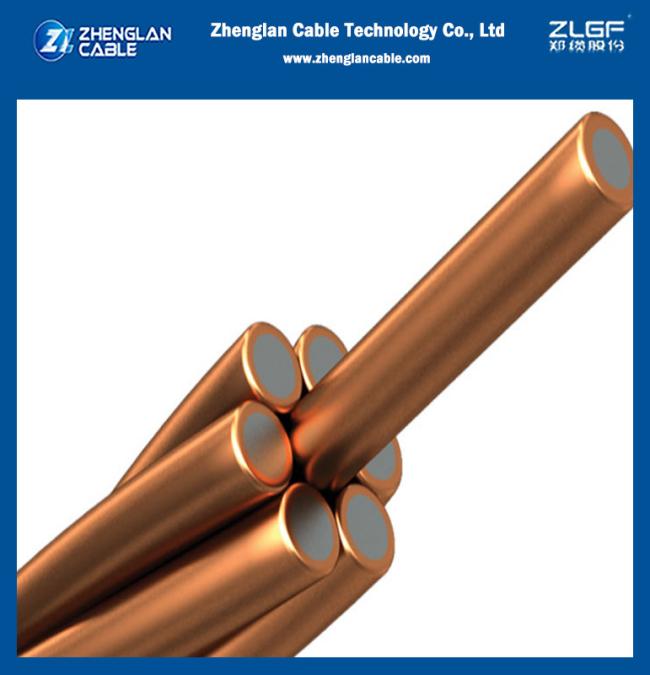

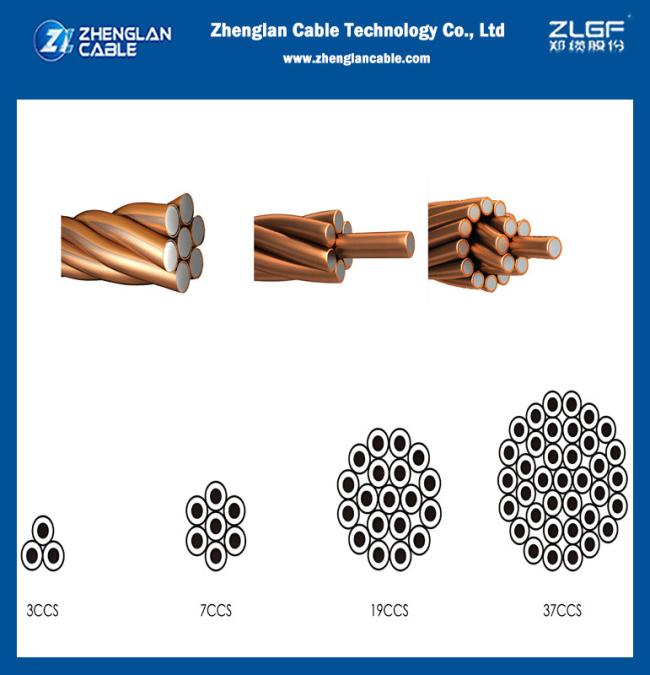

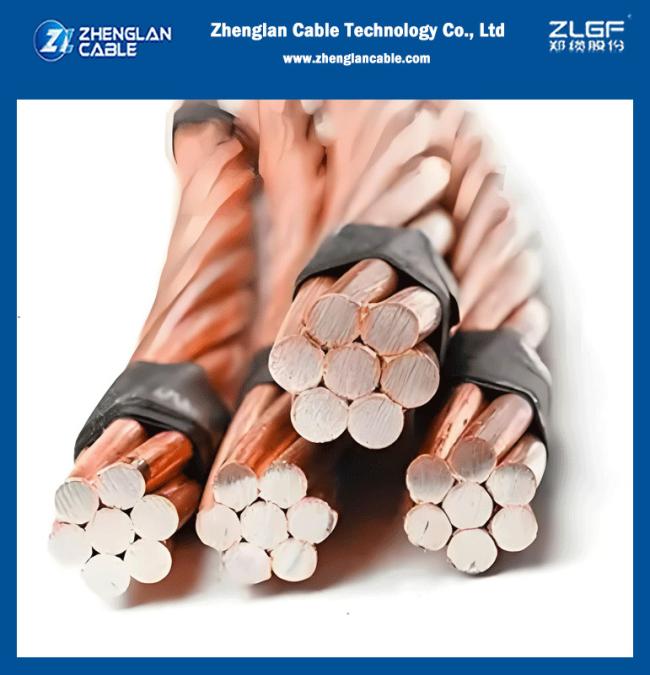

Image:
Support and Services:
Copper Clad Steel technical support and services include:
- Providing product information and technical support.
- Assistance with product selection.
- Guidance with product installation and maintenance.
- Providing product training.
- Safety inspections and testing.
- Repair and replacement services.
- Warranty services.
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
