CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227
CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227
Product Description:
STANDARDS :
ASTM B193 - Standard Test Method for Resistivity of Electrical Conductor Materials
ASTM B227 - Standard Specification for Hard-Drawn Copperclad Steel Wire
ASTM B228 - Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors
ASTM B258 - Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round
ASTM B910 - Standard Specification for Annealed Copperclad Steel Wire
APPLICATIONS:
Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire.it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft.
Technical Parameters:
| Model | Nominal area | Wire quantity | Outer diameter | Weight/km | Pulling strength | 20℃ Max resistance | ||||||
| mm2 | Monofilament | Conductor | Grade 30 | Grade 40 | Grade 40 LC | Grade 30 LC | Grade 40 HS | Grade 30 HS | Grade 40 | Grade 30 | ||
| mm | mm | Kg/km | kgf | Ω/km | ||||||||
| 19 No.5 | 318.7 | 19 | 4.62 | 23.11 | 2634 | 2660.8 | 7823 | 8800 | 8800 | 9778 | 0.1442 | 0.1923 |
| 19 No.6 | 252.7 | 19 | 4.11 | 20.57 | 2087.8 | 2110.2 | 6205 | 6980 | 6980 | 7756 | 0.1818 | 0.2424 |
| 19 No.7 | 200.45 | 19 | 3.66 | 18.31 | 1656.3 | 1674.1 | 4923 | 5538 | 5538 | 6154 | 0.2294 | 0.3058 |
| 19 No. 8 | 158.96 | 19 | 3.26 | 16.31 | 1313.6 | 1327.4 | 3904 | 4392 | 4392 | 4880 | 0.289 | 0.3852 |
| 19 No. 9 | 126.06 | 19 | 2.91 | 14.53 | 1041.7 | 1052.5 | 3094 | 3481 | 3481 | 3868 | 0.3645 | 0.4862 |
| 7 No. 4 | 148.06 | 7 | 5.19 | 15.57 | 1218.6 | 1231.4 | 3636 | 4090 | 4090 | 4544 | 0.3093 | 0.4124 |
| 7 No. 5 | 117.41 | 7 | 4.62 | 13.87 | 966.4 | 976.5 | 2882 | 3242 | 3242 | 3603 | 0.3898 | 0.5197 |
| 7 No. 6 | 93.09 | 7 | 4.11 | 12.34 | 766.2 | 774.2 | 2286 | 2572 | 2572 | 2857 | 0.4915 | 0.6552 |
| 7 No.7 | 73.87 | 7 | 3.67 | 11 | 608 | 614.4 | 1814 | 2040 | 2040 | 2267 | 0.6201 | 0.8268 |
| 7 No. 8 | 58.56 | 7 | 3.26 | 9.78 | 482 | 487 | 1438 | 1618 | 1618 | 1798 | 0.7812 | 1.0414 |
| 7 No. 9 | 46.43 | 7 | 2.9 | 8.71 | 382.1 | 386.1 | 1140 | 1282 | 1282 | 1425 | 0.9859 | 1.3144 |
| 7 No. 10 | 36.82 | 7 | 2.59 | 7.77 | 303.1 | 306.2 | 904 | 1017 | 1017 | 1131 | 1.2422 | 1.6559 |
| 3 No. 5 | 50.32 | 3 | 4.62 | 9.96 | 413.4 | 417.7 | 1304 | 1467 | 1467 | 1630 | 0.9082 | 1.2104 |
| 3 No. 6 | 39.9 | 3 | 4.11 | 8.86 | 327.8 | 331.2 | 1034 | 1163 | 1163 | 1293 | 1.1447 | 1.526 |
| 3 No. 7 | 31.64 | 3 | 3.66 | 7.9 | 259.9 | 262.6 | 820 | 923 | 923 | 1026 | 1.444 | 1.925 |
| 3 N0. 8 | 25.09 | 3 | 3.26 | 7.04 | 206.1 | 208.3 | 651 | 732 | 732 | 813 | 1.8193 | 2.4253 |
| 3 No. 9 | 19.9 | 3 | 2.91 | 6.27 | 163.5 | 165.1 | 516 | 580 | 580 | 645 | 2.2957 | 3.0605 |
| 3 No. 10 | 15.78 | 3 | 2.59 | 5.59 | 129.6 | 130.9 | 409 | 460 | 460 | 511 | 2.8929 | 3.8552 |
| 3 No. 12 | 9.92 | 3 | 2.05 | 4.42 | 81.5 | 82.4 | 260 | 292 | 292 | 325 | 4.5573 | 6.0731 |

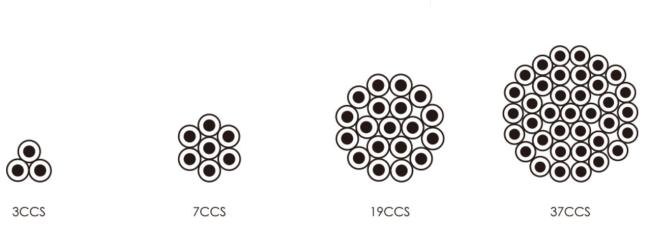

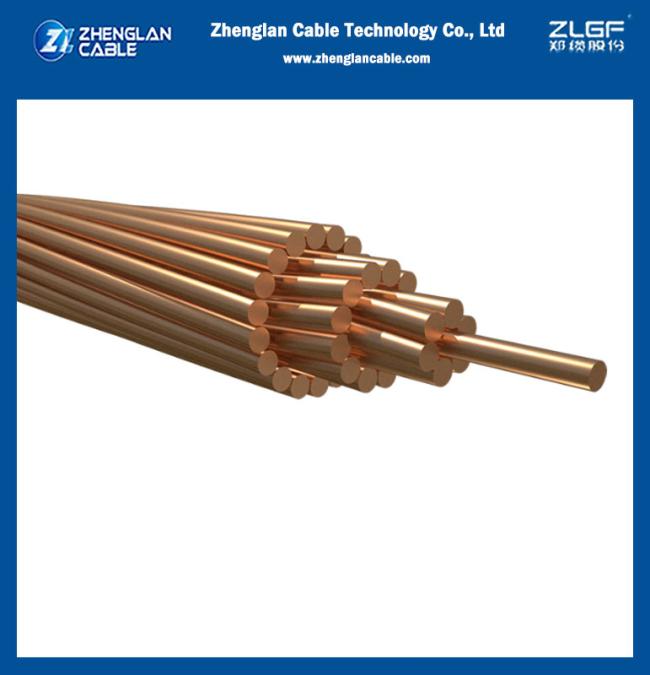

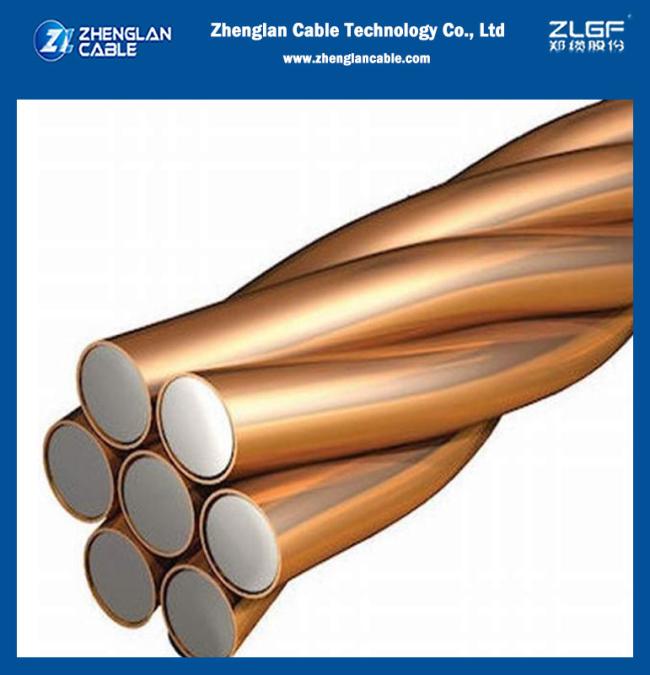

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity Image:
Support and Services:
Copper Clad Steel technical support and services include:
- Providing product information and technical support.
- Assistance with product selection.
- Guidance with product installation and maintenance.
- Providing product training.
- Safety inspections and testing.
- Repair and replacement services.
- Warranty services.
