Dc Panel Photovoltaic Solar Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K
Black+Red Solar Dc Panel Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K
Solar cables are the designated cable used for rooftop PV installations. They are suitable for free hanging, movable, fixed installation and buried in ground in constructional covered systems indoor, outdoor or in hazard explosion areas, in industry and agriculture.
Cable Construction
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
Black+Red Solar Dc Panel Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K CHARACTERISTICS
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
Black+Red Solar Dc Panel Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K Technical Date
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
Black+Red Solar Dc Panel Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K specification
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1x16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1x25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1x35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |

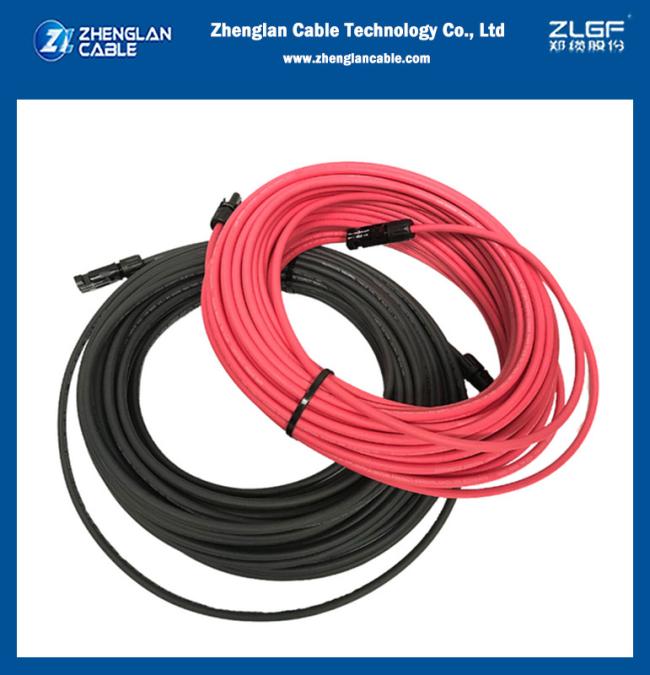

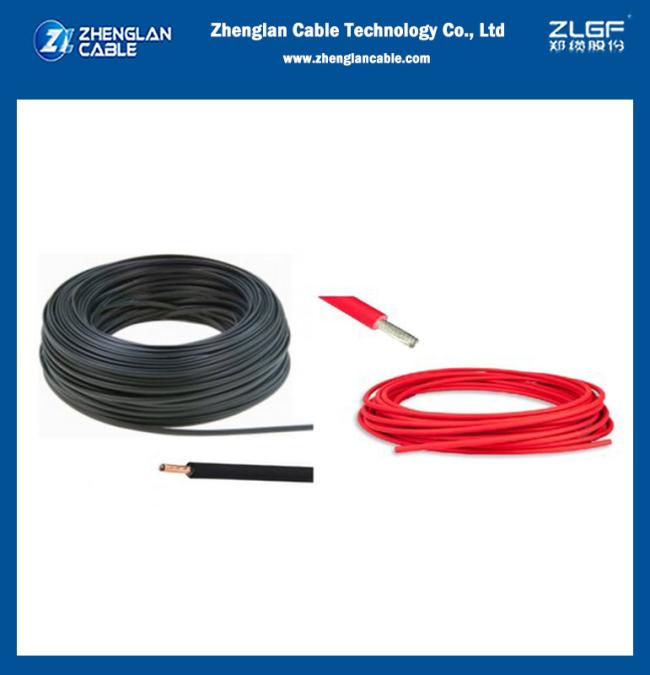

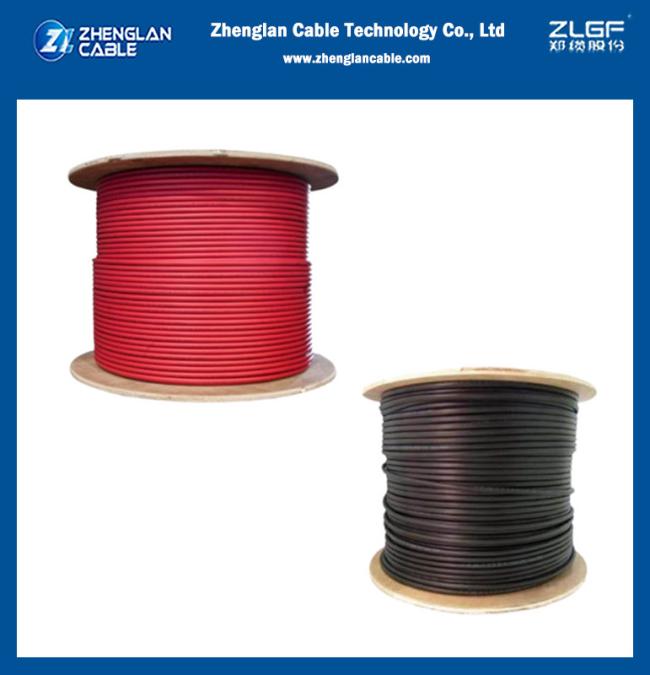

Black+Red Solar Dc Panel Extension Cable 4mm2 6mm2 4mm 6mm H1Z2Z2-K images
