8 AWG PV Wire Solar Photovoltaic Wire 2KV Adapted To PV Systems Black And Red

8 AWG (PV Wire) Solar Photovoltaic Wire 2000V Adapted to PV systems Black and Red

Description:
Compact or compressed round stranded 8000 series aluminum alloy RHH/RHW-2 conductors, per ASTM B800, B836, & B901. Black cross-linked polyethylene (XLPE) insulation.

Applications:
For use in Photovoitic (PV) Solar Power Applications.

Features:
Stranded annealed Aluminum conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C

Standards:
UL Listed PV Wire under UL44, UL1581 and UL4703 Photovoltaic Wires
CSA Listed RPVU90 Wire Under CSA C22.2 No.271 Photovoltaic Wires
-40° C to 90° C wet or dry VW-1 rated per UL1581
FT4 Listed per CSA C22.2 No. 0.3-92, equivalent to IEEE1202
Sunlight Resistant
Direct Burial

Specifications*:

Size: 8 Gauge
Number of Strands: 7
Insulation Thickness (Conductor): 0.085 inches
Outside Diameter: 0.316 inches
Weight: 0.047 lbs per ft
Allowable Ampacity: 45 Amps at 90°C Wet/Dry
Min Bend Radius: 2.21 inches

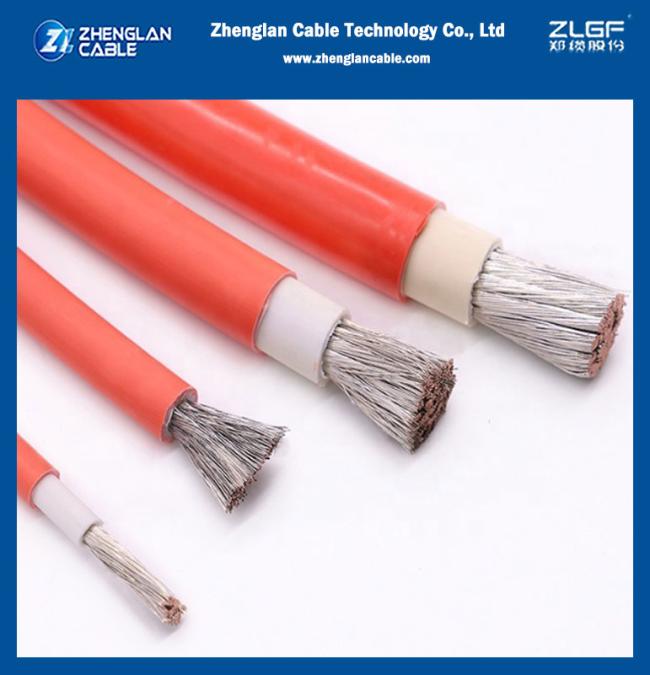

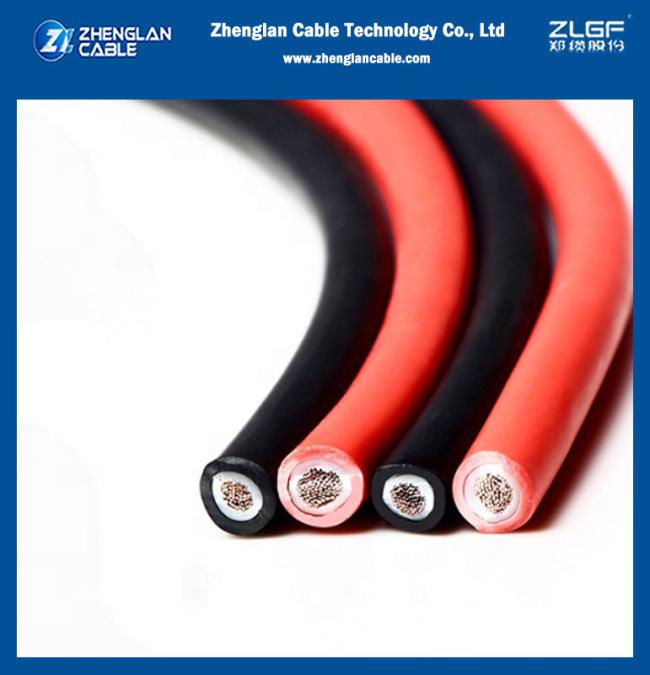

       8 AWG (PV Wire) Solar Photovoltaic Wire images
