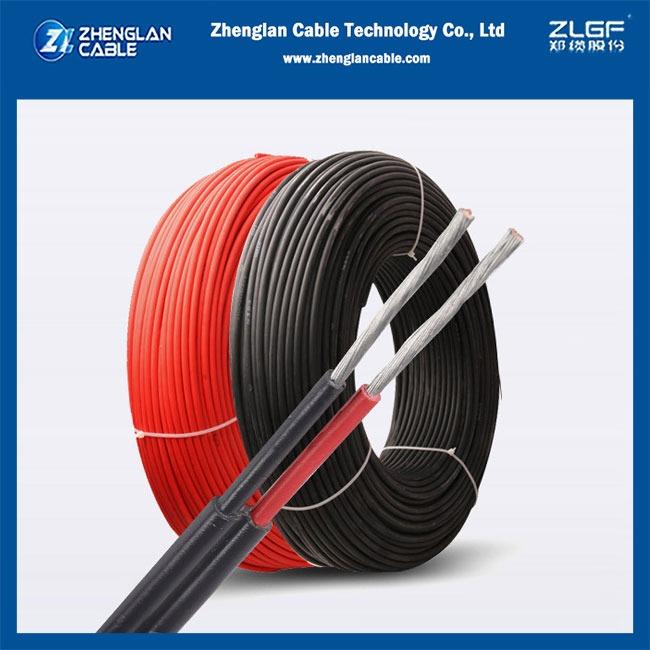

10 AWG 5.261mm2 CU/XLPO/XLPO Solar Photovoltaic Wire 1.5KV Adapted To PV Systems Black And Red
Product Description
PV wire 10 AWG refers to a specific gauge of wire commonly used in photovoltaic (PV) systems. The cross-sectional area of the 10 AWG is about 5.26 mm2. 2kv PV wire is made of multi-stranded tinned copper wire. And the insulation and sheath of the wire are XLPO(Cross-linked polyolefin), ensuring its long-lasting performance in harsh environments. 10 pv wire is a very popular type of solar cable.
Solar Cable Feature:1. Conductor: Class 5 tinned annealed stranded copper
2. Insulation:120°C XLPE/XLPO,black3. Jacket:120°C XLPE , black or red
4. Cores: Single Core or Twin Core
5. Voltage: Solar Cable Application:
Is Used In Photovoltaic Power Generation And Solar System,Interconnects Solar Modules And ElectricalComponents
In The Photovoltaic System,Suitable For Outdoor Extreme Environments,UV,Ozone,Hydrolysis Resistant.
Parameters for Solar PV Cable
|
Size
|
Cross Section
|
Conductor
Structure |
Outer
Diameter |
Max. DC Resistance
at 20ºC |
Rated Voltage
|
Rated
Current |
|
mm2
|
mm
|
mm
|
Ω/km
|
V
|
A
|
|
|
Single Core Solar Cable
|
||||||
|
1x6.0mm2
|
6.0mm2
|
78xΦ0.3
|
6.4
|
3.52
|
1000/1500
|
70
|
