Gsw Galvanized Steel Wire Stay Wire Strand Overhead Bare Conductor IEC 61089
Gsw Galvanized Steel Wire Stay Wire Strand Overhead Bare Conductor IEC 61089
Application
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike.
Description
Bare concentric-lay-stranded conductors are made from bare, hard-drawn, round, aluminum clad steel wires for general use of electrical purposes. Tensile strength and zinc-clad of steel wire have different grades.
Specification
● IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
● ASTM A 475 Zinc-Coated Steel Wire Strand
● BS 183 General Purpose Galvanized Steel Wire Strand
● AS 1222.1 Steel Conductors and Stays—Bare overhead Part 1: Galvanized (SC/GZ)
● GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
CONSTRUCTION :

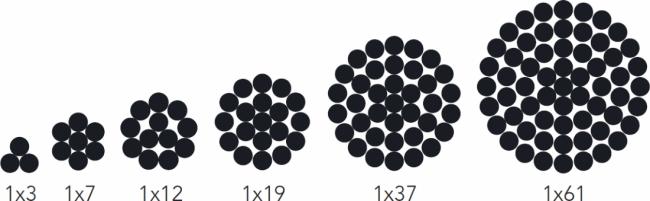

1.The single wires are concentrically stranded and wrapped helically around a central wire.
2.Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C.
Concentrically stranded Galvanized steel wire strand available in class “A”, “B” and “C” galvanizing, “A” being the least heavy and “C” being the most heavy.
GSW Wire IEC 61089 Standard
| Code No. |
Section Area |
No. / Dia of Wire | Approx. Overall Dia. |
Approx. Weight |
Breaking Load | |||
| S1A | S1B | S2A | S3A | |||||
| mm2 | No./mm | mm | kg/km | kN | kN | kN | kN | |
| 4 | 27.1 | 7/2.22 | 6.66 | 213.3 | 36.3 | 33.6 | 39.3 | 43.9 |
| 6.3 | 42.7 | 7/2.79 | 8.36 | 335.9 | 55.9 | 51.7 | 60.2 | 67.9 |
| 10 | 67.8 | 7/3.51 | 10.53 | 553.2 | 87.4 | 80.7 | 93.5 | 103.0 |
| 12.5 | 84.7 | 7/3.93 | 11.78 | 666.5 | 109.3 | 100.8 | 116.9 | 128.8 |
| 16 | 108.4 | 7/4.44 | 13.32 | 853.1 | 139.9 | 129.0 | 199.7 | 164.8 |
| 16 | 108.4 | 19/2.70 | 13.48 | 857.0 | 142.1 | 131.2 | 152.9 | 172.4 |
| 25 | 169.4 | 19/3.37 | 16.85 | 1339.1 | 218.6 | 201.6 | 238.9 | 262.6 |
| 40 | 271.1 | 19/4.26 | 21.31 | 2141.6 | 349.7 | 322.6 | 374.1 | 412.1 |
| 40 | 271.1 | 37/3.05 | 21.38 | 2148.1 | 349.7 | 322.6 | 382.3 | 420.2 |
| 63 | 427.0 | 37/3.83 | 26.83 | 3383.2 | 550.8 | 508.1 | 589.3 | 649.0 |

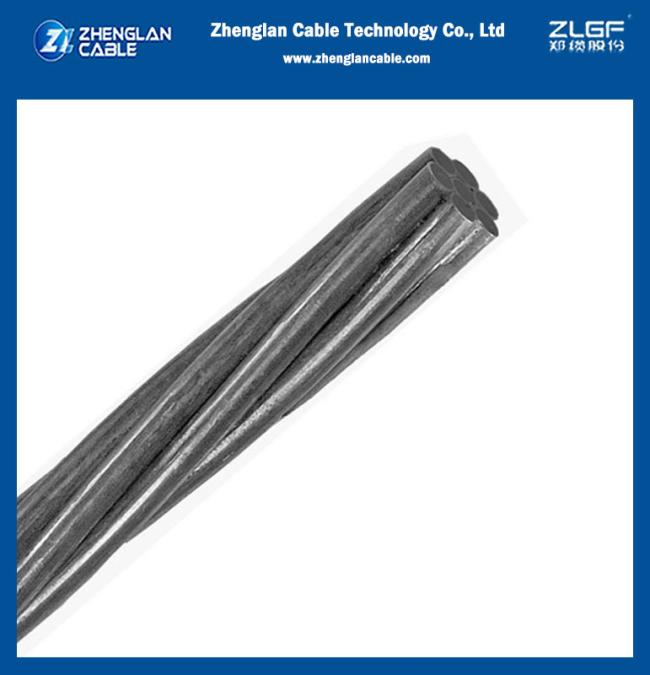

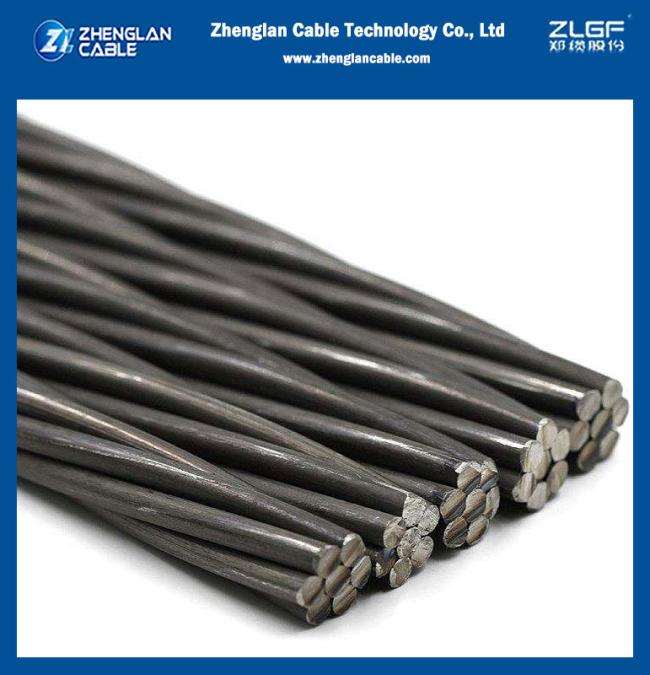

Product Image:
