ZONEWU Submersible ORP Sensor for Water Quality with RS485 Modbus RTU Output IP68 Rating and 3/4 NPT Thread
ZONEWU Submersible ORP Sensor for Water Quality with RS485 Modbus RTU Output IP68 Rating and 3/4 NPT Thread
Product Introduction:
In complex scenarios such as environmental water quality monitoring, acid-base salt solutions, chemical reaction processes, and industrial production, ORP (oxidation-reduction potential) is a core indicator for evaluating the disinfection ability and oxidation-reduction status of water bodies. The ZW-ORP-PR online ORP sensor is designed specifically for harsh industrial sites, based on RS485 (Modbus/RTU) digital output, equipped with patented electrode technology and dual high impedance differential amplifiers. With a reliable measurement range of -1500~+1500mV, resolution of 1mV, and accuracy of ± 20mV, it helps you accurately control the redox balance of water bodies 24/7.
Core Advantage:
① Patent electrode, ultra long lifespan
The internal reference solution slowly seeps out from the microporous salt bridge under a pressure of ≥ 100KPa, and the forward seepage lasts for more than 20 months. The reference system is extremely stable; The lifespan of electrodes is doubled compared to traditional industrial electrodes, significantly reducing the frequency of replacement.
② RS485 digital output, strong anti-interference
Standard Modbus RTU protocol, supporting multi-point networking, with a communication distance of up to 1200 meters. Double high impedance differential amplifier design, fast response, strong anti-interference ability, digital signal transmission is not affected by line resistance and electromagnetic effects, suitable for harsh industrial sites.
③ Durable and sturdy, with flexible installation
Fully sealed ABS/PC and alloy material, IP68 protection level, capable of long-term immersion; 3/4 NPT pipe thread supports immersion, pipeline or tank installation (requires a tilt of 15 ° or more), paired with M16-5 core waterproof connector, 5-meter cable can be customized.
④ Easy integration, worry free maintenance
Compatible with third-party devices such as PLC, DCS, industrial control computer, touch screen, etc., plug and play; One point calibration, combined with 86mV/256mV/-40mV standard solution to quickly complete calibration. low power consumption 0.2W@12V Suitable for long-term unmanned monitoring.
RS485 Water quality ORP sensor:
| Model | ZW-ORP-PR |
| Measuring Range | -1500～+1500mV |
| Resolution | 1mV |
| Accuracy | ±20 mV |
| Working temperature | 0～50℃ |
| Working pressure | ≤0.2 MPa |
| Power supply | 12～24VDC |
| Signal output | RS-485(Modbus/RTU) |
| Wetted material | ABS/PC alloy |
| Installation | Submerged installation, 3/4 NPT thread |
| Cable length | 5 meters, other lengths can be customized |
| Calibration | One point calibration |
| Power consumption | 0.2W@12V |
| Protection grade | IP68 |

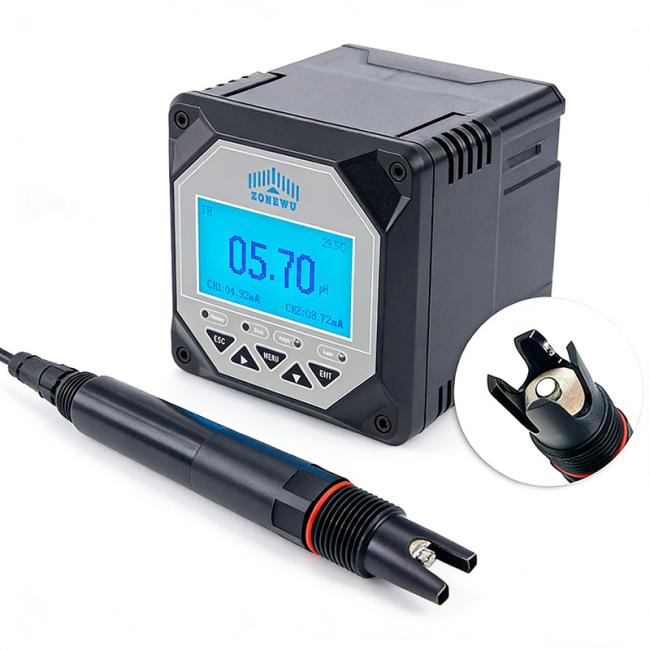

Product Display:
Application:
- Aquaculture: Monitor the redox potential of water bodies and regulate water quality.
- Industrial wastewater treatment: evaluate the effectiveness of disinfectant addition and discharge safety.
- Swimming pool and tap water: control residual chlorine and sterilization efficiency.
- Circulating cooling water: prevent microbial corrosion and scaling.
Why RS485 for Water Quality ORP Monitoring?
Industrial-Grade & Stable Data Transmission: RS485 delivers robust anti-interference performance for real-time, reliable hardness data transmission in harsh environments (e.g., industrial boilers, municipal water supply), ensuring accurate monitoring.
Easy Integration & Scalability:Supports multi-node networking, seamlessly integrates with mainstream PLC/RTU systems, enabling flexible deployment and reducing system integration costs and maintenance complexity.
Production Process:
FAQ:
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
