RS485 turbidity sensor with Modbus RTU support and optical fiber isolation for stable and accurate turbidity measurement

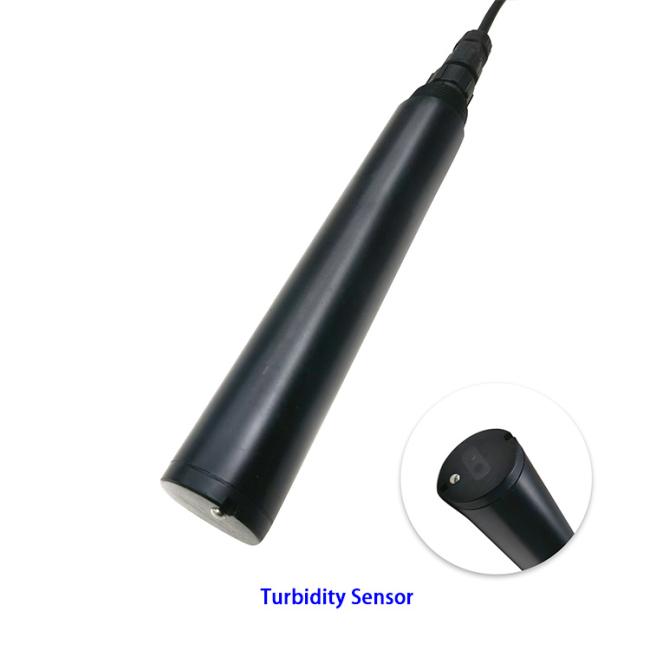

RS485 Turbidity Sensor 0-1000 NTU for Raw Wastewater

1. Technical Principle & Specification

1.1 Measurement Principle

Core Technology: Based on the 90° angle scattered light measurement principle.

Working Process: A beam of light is emitted into the water sample. Particulate matter in the water scatters the light. The sensor measures the intensity of light scattered perpendicularly to the incident axis. By comparing the measured signal with the internal calibration constant, it calculates the turbidity concentration. The final value is output after analog linearization processing.

Intelligent Compensation: Integrated with a built-in temperature sensor for real-time environmental compensation, ensuring accuracy across varying conditions.

1.2 Signal Output & Compatibility

Interface: Features a standard RS-485 interface for reliable, long-distance data transmission.

Protocol: Supports the Modbus/RTU communication protocol, ensuring seamless integration with almost all industrial automation systems and SCADA platforms.

1.3 Optical System Design

Light Source: Utilizes a high-stability infrared LED light source to guarantee consistent performance and long service life.

Anti-Interference: Adopts an advanced optical fiber structure that effectively isolates and suppresses external ambient light interference, ensuring precise measurements in both bright sunlight and pitch-black environments.

2. Core Advantages & Durability

2.1 Extreme Environment Adaptability

Superior Waterproof Rating: Boasts an IP68 ingress protection rating, the highest level of waterproof certification.

Deep Water Capability: Designed to operate reliably at a water depth of up to 20 meters, making it ideal for deep river, lake, and undersea monitoring applications.

2.2 High Stability & Reliability

Low Drift Performance: Engineered for continuous 24/7 online monitoring with minimal signal drift, delivering stable and trustworthy data.

Low Maintenance: The modular and robust design simplifies cleaning and calibration procedures, reducing operational downtime and maintenance costs.

2.3 User-Centric Design

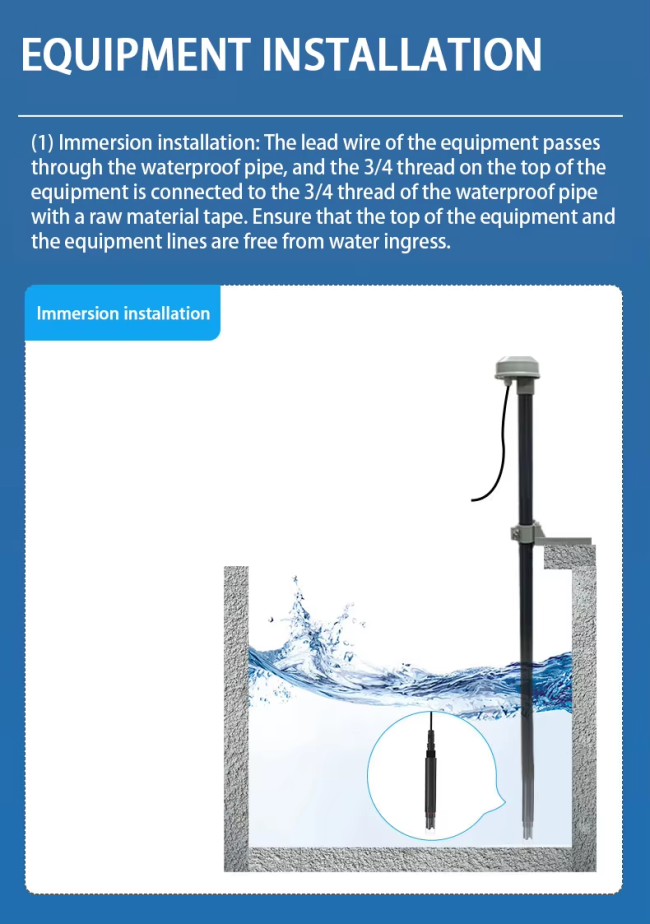

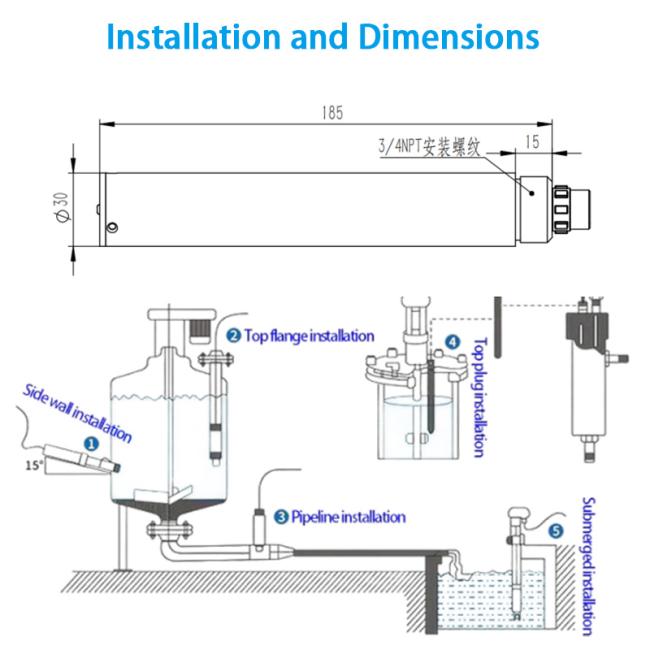

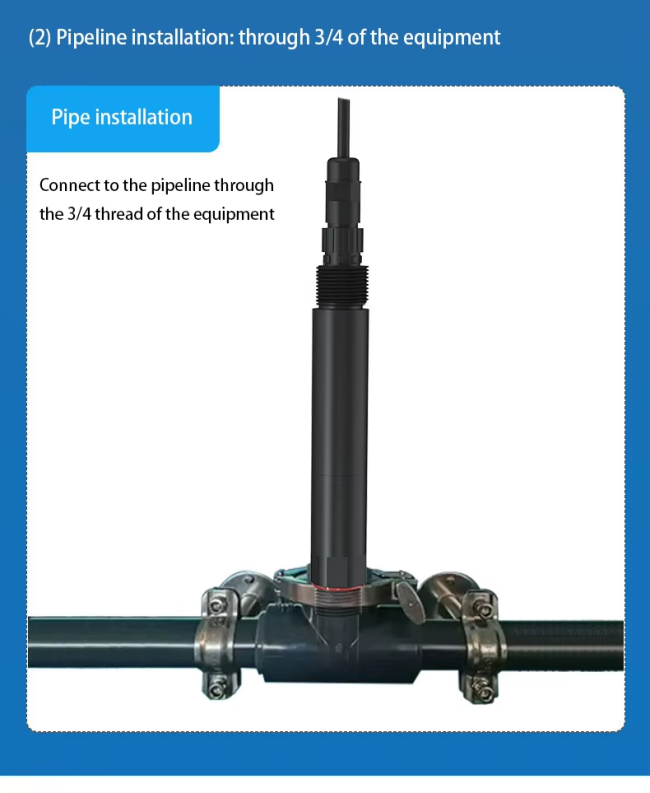

Easy Installation: Plug-and-play design with standardized interfaces, ensuring convenient on-site deployment and system integration.

Cost-Effective: Offers a long lifespan with high reliability, providing excellent long-term value and minimizing the total cost of ownership.

Water Quality Turbidity Sensor Specification:

Packaging:

Single gross weight: 0.600 KG

Single package size: 32x14x9 cm

Product Description:

Application:

This turbidity sensor is widely utilized to guarantee safety and quality across a comprehensive spectrum of applications. It excels in scenarios such as aquaculture management, marine environmental monitoring, drinking water purification processes, swimming pool sanitation control, river and stream quality surveillance, wastewater treatment operations, chemical industrial park safety monitoring, as well as farmland irrigation system maintenance.

Certifications:

We are the leading RS485 turbidity sensor manufacturer and exporter in China with over 10 years of experience. Our RS485 turbidity sensor products are certified with CE and RoHS.

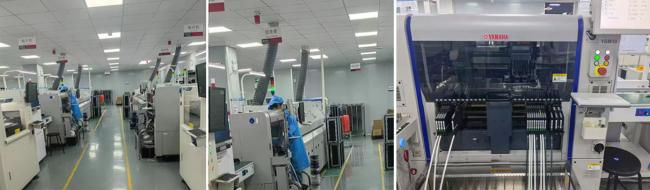

Production Process:

Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
