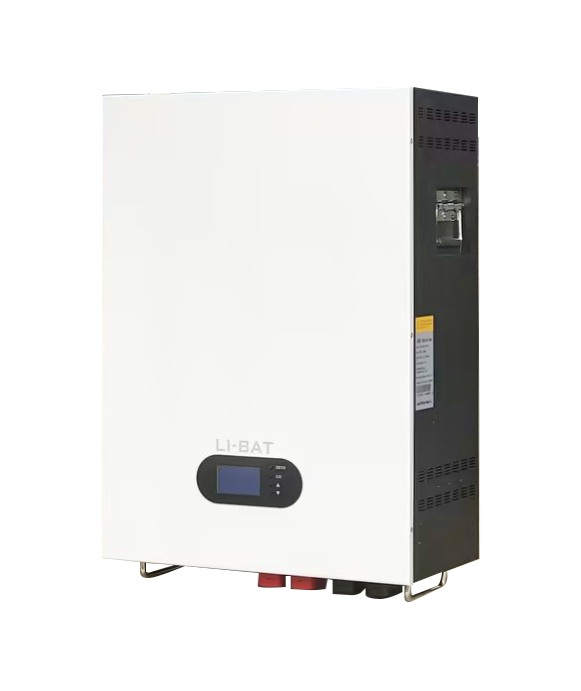

5000 Times Household Solar Batteries 4.8kWh 48V 100Ah Home Power Storage
5000 Times Household Solar Batteries 4.8kWh 48V Home Power Storage
Product introduction
The product adopts modular design, higher integration,saves installation space; adopts high-perfomance lithiumiron phosphate positive electrode material, the battery cell has good consistency, and the designed service life is more than 10 years; one-key switch machine, front operation, front wiring, easy installation, convenient maintenance and operation; various functions, over-temperature alarm protection, over-charge and over-discharge protection.short-circuit protection; strong compatiblity, seamless connection with UPS, photovoltaic power generation and other main equipment various forms of communication interfaces. CAN/RS485, etc. can be customized according to customer needs, which is convenient for remote monitoring and flexible use of the system High-energy, low-power lithium-ion battery equipment achieves higher energy supply, lower energy consumption and reduces environmental pollution; all-round, multi-level battery protection strategies and fault isolation measures are adopted to ensure the safe operation of the system.
Product Highlights
1.Wall-hanging installation, save space.
2.Multiple in parallel, easy for expand,Automatic addressing, no need to dial a code.
3.Standard configuration with LCD display, real time knowing battery status,Screen direct selection of invertercommunication.
4.Environmentally friendly non-polluting materials, free of heavy metals, green and environmentally friendly.
5.Standard cycle life is more than 5000 times.
Factory Direct Supply: Own production base ensures efficient order processing.
Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit).
Customization Service: Product parameters (e.g., voltage, interface) can be customized per customer requirements.
| Model | CH—GBP48-100W |
| Nominal Voltage (V) | 48 |
| Cell Specification | 100 |
| Nominal Capacity(Ah) | 100 |
| Nominal Energy (kWh) | 4.8 |
| Operating Voltage Range(V) | 42~54.75 |
| Recommended Charging Voltage(V) | 51.75 |
| Recommended Discharge Cut-off Voltage(V) | 45 |
| Standard Charge/Discharge Current (A) | 0.5C |
| Maximun Continuous Charge/Discharge Current(A) | 1C(Customizable) |
| Operating Temperature(°C) | -30~60(Recommended 10~35 ) |
| Allowable Humidity Range(%RH) | <85 |
| Storage Temperature(°C) | -20~65(Recommended 10~35) |
| Charging Temperature(°C) | 0~55 |
| Discharging Temperature(°C) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension(D*W*H)mm | 687*450*186 |
| Weight(kg) | 46 |
