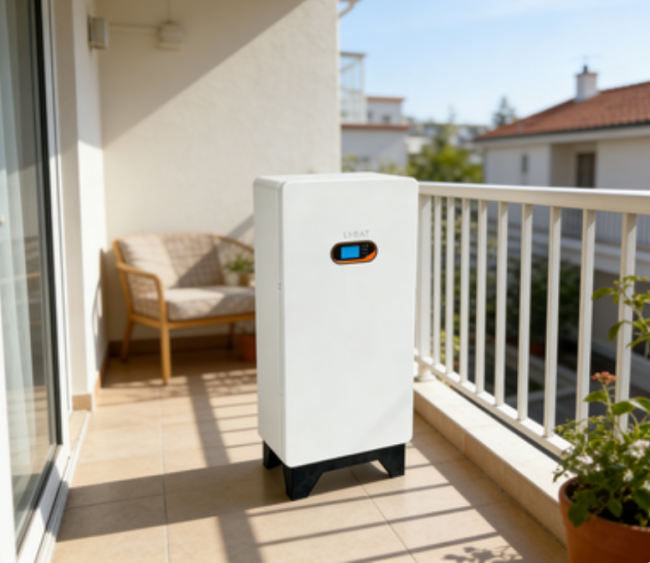

Vertical Type Home LiFePO4 Battery 48V 314Ah 15.07kWh Solar Panel Battery For Home
Vertical Type Home LiFePO4 Battery 15.07kWh Solar Panel Battery For Home
Product introduction
The product adopts vertical type design, beautiful shape, and convenient movement; including the mainstream market inverter protocol, directly communicates; adopts a comprehensive and multi -level battery protection strategy and fault isolation measures to ensure the safe operation of the system.Widely used in small commercial and family energy storage.
Product Highlights
1.Vertical Type design, safe and stable.
2.Hidden wiring, beautiful design.
3.Standard LCD display screen, to understand battery status in real time, and directly select the inverter communication protocol on the screen.
4.Environmentally friendly and pollution-free materials, no heavy metals, green and environmentally friendly.
5.Standard cycle life over 5,000 times.
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements
| Model | CH—GBP48-314HL |
| Nominal Voltage (V) | 48 |
| Cell Specification | 314 |
| Nominal Capacity(Ah) | 314 |
| Operating Voltage Range(V) | 42~54.75 |
| Recommended Charging Voltage(V) | 51.75 |
| Recommended Discharge Cut-off Voltage(V) | 45 |
| Standard Charge/Discharge Current (A) | 100 |
| Maximun Continuous Charge/Discharge Current(A) | 150 |
| Operating Temperature(℃) | -30~60(Recommended 10~35 ) |
| Allowable Humidity Range(%RH) | <85 |
| Storage Temperature(℃) | -20~65(Recommended 10~35) |
| Charging Temperature(℃) | 0~55 |
| Discharging Temperature(℃) | -10~55 |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | 5000+ Times at 80% DOD |
| Maximum Dimension(D*W*H)mm | 480*246*990 |
| Weight(kg) | 143 |
