38.4kWh Low Voltage Battery Pack Residential PV Storage LFP48V 200Ah
Price:
$5450-5650
MOQ:
1
Delivery Time:
Negotiable
Product Description

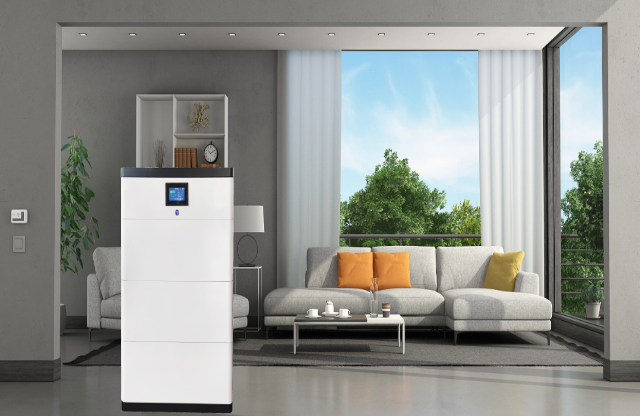

38.4kWh Lithium-ion Battery Stack System
Flexible expansion stack design for residential PV storage with LFP48V/200Ah configuration
Product Overview
This advanced battery stack system features a modular stacked design for flexible expansion and elegant aesthetics. The system offers one-button startup with side-hidden wiring for customer convenience, and includes direct communication compatibility with mainstream inverter protocols.
Key Features
- Bilingual display (Chinese/English) with comprehensive PACK information summary
- Direct inverter communication protocol selection via display interface
- Master power switch for one-touch system operation
- Modular stack design supporting flexible battery capacity expansion
- Multiple cluster parallel connection supporting up to 8 battery packs
Technical Specifications
| Model | CH--GLV2-P40 |
| Battery Module Model | LFP48V/200Ah |
| Battery Module Nominal Energy | 9.6 kWh |
| Rated Voltage | 48V |
| Number of Cell Modules in Single Cluster | 4 |
| Single Cluster Battery Energy | 38.4 kWh |
| Maximum Number of Clusters in Parallel | 8 |
| Operating Voltage Range | 42-54.75V |
| Recommended Charging Voltage | 51.75V |
| Recommended Discharge Cut-off Voltage | 45V |
| Maximum Charge/Discharge Current | 0.5C |
| Unit Cluster Size (D×W×H) | 479×700×1408 mm |
| Unit Cluster Weight | 420 kg |
| Communication Mode | CAN/485/Bluetooth |
| Operating Temperature | -30°C to 60°C (Recommended: 10°C to 35°C) |
| Storage Temperature | -20°C to 65°C (Recommended: 10°C to 35°C) |
| Humidity | <85% RH |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling |
| Cycle Life | ≥5000 cycles |
| Safety Standards | CE, UN38.3, MSDS |
Safety & Reliability
Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.
Manufacturing Advantages
Factory Direct Supply: Own production base with direct order processing for optimal supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (voltage, interface) tailored to customer requirements
