LiFePO4 Wall Mounted Battery Storage For Home 48V 200Ah 9.6kWh 5000 Cycles
Price:
$1300-1500
MOQ:
1
Delivery Time:
Negotiable
Product Description

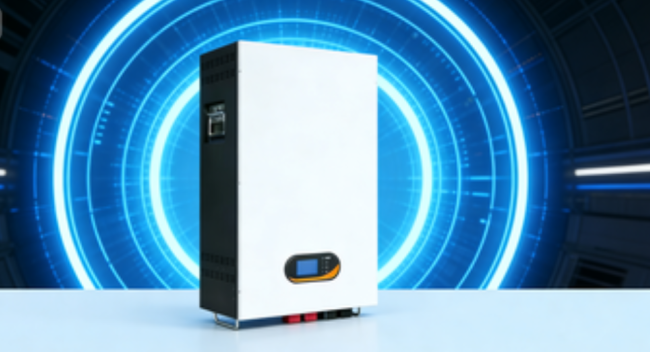

Home Storage Wall-Mounted LiFePO4 Battery 48V 9.6 kWh
Product Overview
This wall-mounted lithium iron phosphate battery features modular design with high integration for space-saving installation. Utilizing premium LiFePO4 cathode material with excellent cell consistency, it offers a design lifespan exceeding 10 years and includes a comprehensive 5-year warranty.
Key Features
- Wall-mounted installation saves valuable space
- Parallel expansion capability with automatic addressing
- Integrated LCD display for real-time status monitoring
- Direct inverter communication selection via display
- Environmentally friendly materials free of heavy metals
- Standard cycle life exceeding 5000 cycles at 80% DOD
- Front operation and wiring for easy installation and maintenance
- Comprehensive protection systems including over-temperature, over-charge, over-discharge, and short-circuit protection
![]()
Technical Specifications
| Model | CH--GBP48-200W |
| Nominal Voltage | 48V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 9.6 kWh |
| Operating Voltage Range | 42V - 54.75V |
| Recommended Charging Voltage | 51.75V |
| Standard Charge/Discharge Current | 0.5C |
| Operating Temperature | -30°C to 60°C (Recommended: 10°C to 35°C) |
| Cycle Life | 5000+ cycles at 80% DOD |
| Dimensions (D*W*H) | 682 * 465 * 276 mm |
| Weight | 93 kg |
| Protection Level | IP20 |
| Cooling Method | Natural Air Cooling/Intelligent Fan |
Compatibility & Communication
Seamless integration with UPS systems, photovoltaic power generation, and other primary equipment. Multiple communication interfaces including CAN/RS485, customizable according to customer requirements for remote monitoring and flexible system usage.
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and quality control.
Flexible Production: Supports small batch trial orders with minimum order quantity of 1 unit.
Customization Service: Product parameters including voltage and interface specifications can be customized to meet specific customer requirements.
