Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home

Price Negotiable
Price: $1400-1600
MOQ: 1
Delivery Time: Negotiable
Product Description
Residential Storage Vertical LiFePO4 Battery 13 kWh 48V 5000+ Cycle Life
This 13kWh vertical-type LiFePO4 battery combines elegant design with convenient mobility. Engineered for residential and small commercial energy storage applications, it features mainstream inverter protocols for direct communication and comprehensive multi-level protection systems with fault isolation to ensure safe operation.
Product Highlights
  • Vertical design for safe and stable operation
  • Hidden wiring with aesthetically pleasing appearance
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter protocol selection capability
  • Environmentally friendly materials free from heavy metals and pollutants
  • Standard cycle life exceeding 5,000 cycles

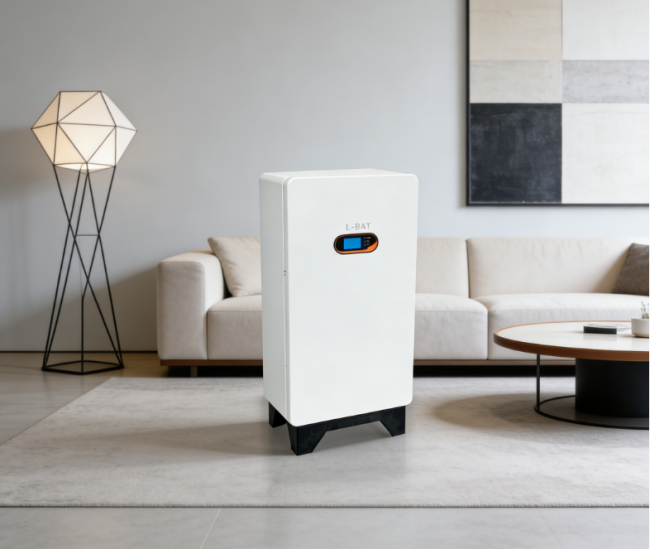

 Vertical LiFePO4 Battery Design and Features Residential Energy Storage Battery Installation
Technical Specifications
Model CH --GBP48-280HL
Nominal Voltage (V) 48
Cell Specification 280
Nominal Capacity (Ah) 280
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 480*246*990
Weight (kg) 139
Manufacturing & Customization
Factory direct supply from our own production base ensures maximum efficiency and quality control. We support flexible production capacity with minimum order quantity of just 1 unit for trial orders. Customization services available for product parameters including voltage and interface configurations to meet specific customer requirements.
