Wall Mounted AC Charging Pile 21kW AC Fast Charging Wallbox IP54
Price:
$350-550
MOQ:
1
Delivery Time:
Negotiable
Product Description

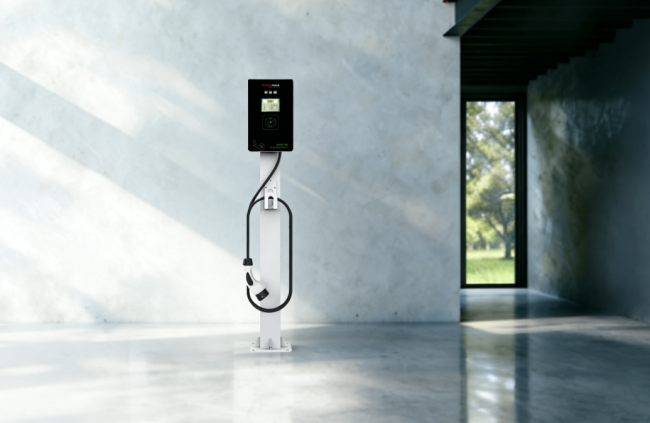

Home Commercial 21kW Wall Mounted AC Charging Pile
Compact, safe charging solution with IP54 protection rating for residential and commercial applications.
Safe and Durable Design
- Sheet metal + tempered glass chassis provides rainproof and UV-resistant protection
- Suitable for both outdoor and underground parking lots
- Compact design with easy installation and IP54 protection rating
- Wall-mounted or ground stand installation options
- Cost-effective solution for residential and commercial use
- Optional 4.3-inch high-brightness, low-temperature resistant LCD screen
- Standard 4.5-meter rolling charging gun (custom lengths available)
- Scan and touch operation capabilities
- Supports card swiping (offline) and QR code scanning (online) operation
Intelligent Control Features
- Multiple networking options: Ethernet, 4G, Wi-Fi
- Server background connectivity compatible with multiple charging platforms
- Supports WeChat payment and card payment methods
- Available for both online and offline operation
- Remote upgrade capability
Comprehensive Safety Protection
- Type A leakage protection with extended Type B leakage protection function
- Multiple protection systems including over-current, over-voltage, emergency stop, and over-temperature protection
Technical Specifications
| Specification | Model: CH-AC0021-BE-34 |
|---|---|
| Input | |
| Type of Input Power | 3P+N+PE |
| Rated Voltage | 380V AC |
| Rated Current | 32A |
| Frequency | 50/60Hz |
| Output | |
| Output Voltage | 380V AC |
| Maximum Current | 32A |
| Rated Power | 21kW |
| User Interface | |
| Charging Connector | National standard charging gun, CCS1, CCS2 |
| Cabinet Material | Galvanized Steel |
| Front Panel | Black Tempered Glass |
| Indicator | Green/Yellow/Red |
| LCD Screen | 4.3-inch LCD touch screen |
| Card Reader | Contactless card reader |
| Startup Mode | Password/RFID card/QR code |
| Emergency Stop | YES |
| Communication Interaction | |
| Wi-Fi | Optional |
| Ethernet | Optional |
| 4G | Default/Optional |
| Communication Protocol | National Standard, OCPP1.6 |
| Security Protection | |
| Metering | Independent metering, MID certified optional for European and American brands |
| RCD | Yes |
| Protection Level | IP54 |
| Electrical Safety Protection | Over-current protection, residual current protection, short circuit protection, grounding protection, surge protection, over/under-voltage protection, over-temperature protection |
| Environmental Indicators | |
| Installation | Wall-mounted/Floor-mounted (stand support) |
| Working Temperature | -20°C to +50°C |
| Working Humidity | 5% to 95% |
| Working Altitude | <2000m |
| Appearance | |
| Product Size | 356*221*136mm (H*W*D) |
| Package Size | 490*330*210mm (L*W*H) |
| Net Weight | 3.4kg |
| Gross Weight | 4.2kg |
| Outer Packaging | Carton |
