6.2kW Grid Tie Inverter Wide PV Input 100A Solar Power Inverter For Home
Price:
$300-500
MOQ:
1
Delivery Time:
Negotiable
Product Description

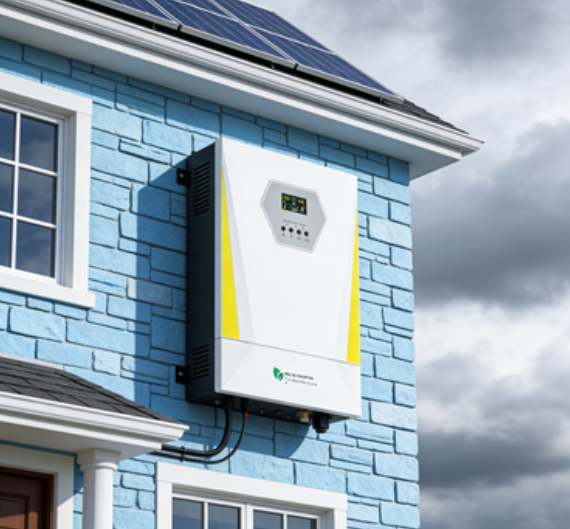

6.2kW Grid-tie Solar Inverter
High-efficiency grid-tie solar inverter with wide PV input voltage range for home energy storage applications.
Product Highlights
- Wide PV Input Voltage Range - Supports 60-500V input, compatible with various solar panel configurations for enhanced application adaptability
- External WiFi Module - Enables remote monitoring and control through wireless networks
- High Conversion Efficiency - Delivers superior energy conversion with minimal power loss, optimizing photovoltaic system performance
- Multiple Battery Type Compatibility - Flexible energy storage system configurations to meet diverse application requirements
- Sturdy & Compact Structure - Lightweight, durable casing design for easy installation and space efficiency
Application Scenarios
- Small household photovoltaic systems for on-site self-consumption and surplus power storage
- Remote area power solutions for villages and mountainous regions with limited grid access
- Emergency backup power supply for households and small commercial establishments
Additional Advantages
- Factory Direct Supply - Direct manufacturing and order processing for stable, efficient supply chain
- Flexible Production - Support for small-batch trial orders with minimum order quantity of 1 unit
- Customization Service - Customizable voltage, interfaces, and other parameters to meet specific requirements
Technical Specifications
| Model | CH-ED6248EMH |
| AC Input Voltage | 220VAC (Normal) / 110VAC (Customize) |
| Input Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) |
| Input Frequency | 50/60Hz±5% |
| Rated Power | 6200W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Output Wave | Pure Sine Wave |
| Transfer Time | ≤10ms (UPS) / ≤20ms (INV) |
| Peak Power | 12400VA |
| Grid Voltage Range | 170-265VAC |
| Power Factor Range | >0.99 |
| Peak Efficiency (DC/AC) | 98% |
| Battery Rated Voltage | 48Vdc |
| Max PV Input Power | 6200W |
| MPPT Input Voltage Range | 60-500Vdc |
| Max PV Input Voltage | 500Vdc |
| Max PV Input Current | 18A |
| Operating Temperature | -10°C to 50°C |
| Noise Level | ≤50dB |
