11kW Grid Tie Solar Inverter Household Solar Inverter With External WiFi
Price:
$500-700
MOQ:
1
Delivery Time:
Negotiable
Product Description
11kW Grid Tie Solar Inverter Household Solar Inverter With External WiFi

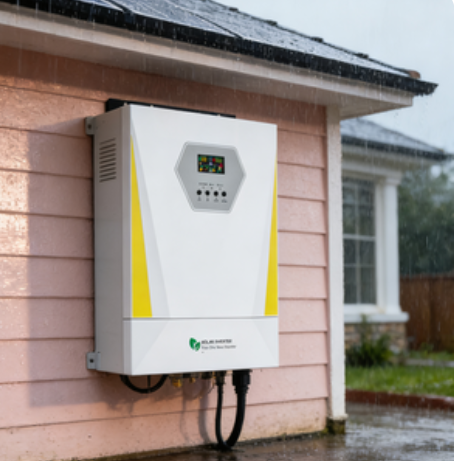

11kW Grid-Tie Solar Inverter
High-efficiency grid-tied solar inverter with wide PV input voltage, exceptional conversion efficiency, and external WiFi connectivity. Ideal for residential energy storage and industrial PV-storage-charging integrated systems.
Product Overview
This high-performance 11kW solar hybrid inverter from the ED Series delivers stable and efficient energy conversion for residential energy storage and industrial PV-storage-charging integration. Featuring advanced MPPT technology, pure sine wave output, and flexible grid-tie operation modes.
- 98% peak conversion efficiency for optimal energy utilization
- Dual-MPPT charge controller with wide PV input voltage range (60-500VDC)
- Maximum PV charging power of 6200W
- 48Vdc battery system with configurable parameters
- Lithium battery BMS communication support
- Excellent overload capacity (200% load for 400ms)
- Comprehensive safety protections including battery reverse connection protection
- Slim, compact design for easy installation and maintenance
Monitoring & Control
Equipped with LCD display and WiFi remote monitoring capabilities for real-time system performance tracking, parameter adjustment, and fault diagnosis.
Environmental Specifications
Designed for reliable operation in various climate conditions with operating temperature range of -10°C to 60°C, humidity range of 20%-90% non-condensing, and low noise operation (≤50dB).
Technical Specifications
| Model | CH-ED11048EMH |
|---|---|
| AC Input Voltage | 220VAC (Normal) / 110VAC (Customizable) |
| Input Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) |
| Input Frequency | 50/60Hz±5% |
| Rated Power | 11000W |
| Output Rated Power | 12000W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Output Wave | Pure Sine Wave |
| Transfer Time | ≤10ms (UPS) / ≤20ms (INV) |
| Peak Power | 22000VA |
| Overload Ability | Battery Mode: 1s@105%-150% Load 2s@150%-200% Load 400ms@200% Load |
| Grid-connected Operation | Output Voltage: 220/230/240VAC Grid Voltage Range: 170-265VAC Grid Frequency Range: 49-51±Hz/59-61±Hz Rated Output Current: 47.8A Power Factor Range: >0.99 Peak Efficiency (DC/AC): 98% |
| Battery Specifications | Rated Voltage: 48Vdc Configurable Voltage: 56.4Vdc Charging Voltage: 54Vdc |
| Charger Specifications | PV Charging Mode: MPPT Max PV Input Power: 25000W MPPT Input Voltage Range: 90-500Vdc Optimal Vmp Range: 300-400Vdc Max PV Input Voltage: 500Vdc Max PV Input Current: 18A/18A Max PV Charging Current: 150A Max AC Charging Current: 150A Max Charging Current: 150A |
| Display & Interface | LCD Interface: Operating mode/load/input/output display RS232: 2400 Baud Rate Expansion Slot: Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm Parallel Support: Yes |
| Environmental Conditions | Operating Temperature: -10°C to 50°C Operating Environment Humidity: -10°C to 60°C Storage Temperature: 20%-90% Non-Condensing Noise: ≤50dB |
Manufacturing Advantages
Factory Direct Supply
Own production base with direct order processing ensures stable and efficient supply chain.
Flexible Production
Small-batch trial orders supported with minimum order quantity of 1 unit.
Customization Service
Technical specifications including voltage, interfaces, and other parameters can be customized to meet specific requirements.
