Single Phase 3KW Hybrid Solar Inverter Home Energy Storage Inverter
Price:
$750-950
MOQ:
1
Delivery Time:
Negotiable
Product Description

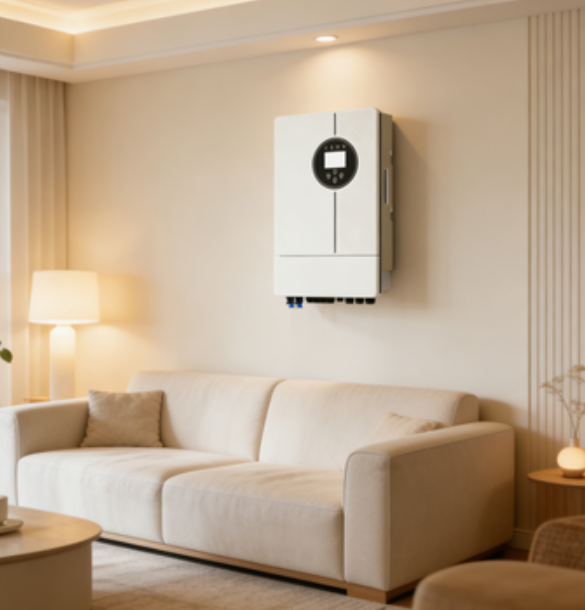

3kW Single-phase Hybrid Energy Storage Inverter
This hybrid inverter series is engineered to simultaneously support photovoltaic (PV) and energy storage systems. It combines grid-tied and off-grid functionality with bidirectional power control and intelligent energy management, enabling fully autonomous power distribution. Designed with modern aesthetics that complement smart home environments, it provides an ideal residential power solution.
The inverter series offers broad battery compatibility and works seamlessly with our dedicated battery systems. It supports multiple charge and discharge power configurations, ensuring safe, stable, and reliable residential power supply.
Safety Features
- Intelligent AI-DC Arc fault protection
- Supports 2x overload capacity for short durations
- IP65 protection rating
Flexible Integration
- Compatible with diesel generators
- AC coupling for retrofitting existing solar systems
- Maximum 10 units parallel operation for on/off-grid
- Supports multiple battery parallel connections
Smart Operation
- 4ms backup power switching
- Color LCD touchscreen for setup and monitoring
- 6 programmable time periods for battery charging/discharging
High Efficiency
- Supports 1.6x DC overloading
- 180A charge and discharge current
- 97.6% maximum conversion efficiency
- 95% maximum charging efficiency
Technical Specifications
Model Information
| Model | CH-LVEH1P3K-EU-G1 CH-LVEH1P3K-BR-G1 |
Battery Input Specifications
| Battery Type | Lead-acid/Li-Ion |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 70 |
| Max. Discharging Current (A) | 70 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
PV String Input Specifications
| Max. PV Input Power (W) | 4800 |
| Max. PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 120 |
| MPPT Voltage Range (V) | 120~425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 20 |
| Max. Input Short-Circuit Current (A) | 23 |
| No. of MPP Tracker / No. of Strings MPP Tracker | 1+1 |
AC Input/Output Specifications
| Rated AC Input/Output Active Power (W) | 3000 |
| Max. AC Input/Output Apparent Power (VA)* | 3300 |
| Rated AC Input/Output Current (A) | 13.6/13 |
| Max. AC Input/Output Current (A)* | 15/14.3 |
| Max. Continuous AC Passthrough (grid to load) (A) | 27 |
| Peak Power (off-grid) (W) | 2 times of rated power for 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | L+N+PE |
| Total Current Harmonic Distortion THDi | <2% (of nominal power) |
| DC Injection Current | <0.5% In |
Efficiency Ratings
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99% |
Equipment Protection
| Integrated Protection | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge Protection Level |
| Surge Protection Level | TYPE II (DC), TYPE II (AC) |
Interface & Communication
| Communication Interface | RS485/CAN |
| Monitor Mode | WIFI |
General Data
| Operating Temperature Range (°C) | -40 to +60 |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude (m) | 3000 |
| Ingress Protection (IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II (DC), OVC III (AC) |
| Cabinet Size (W×H×D mm) | 330×563×223 |
| Weight (kg) | 23.7 |
| Type of Cooling | Natural cooling |
| Warranty | 5 Years / 10 Years The Warranty Period Depends on the Final Installation Site of Inverter. More Info Please Refer to Warranty Policy |
| Safety/EMC Standard | IEC/EN 61000-6-1:2019, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, IEC 63027:2023 |
*It is only implemented under specific safety regulations and working conditions
