Residential Off Grid Inverter 1600W 100A Small Inverter For Home
Price:
$200-$500
MOQ:
1
Delivery Time:
Negotiable
Product Description

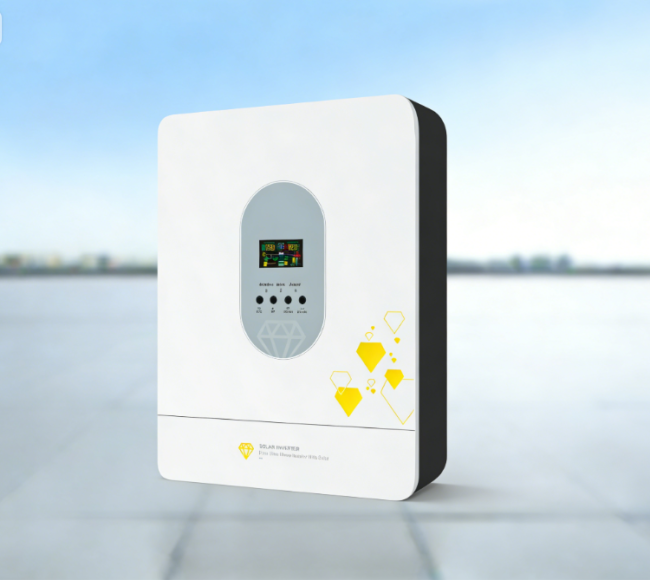

1.6kW Off-Grid Solar Inverter – Pure Sine Wave Output with Wall-Mounted Design for Residential Energy Storage
Product Highlights
Pure Sine Wave Output – Compatible with Various Loads Ultra-high frequency technology delivers pure sine wave output, ensuring stable, interference-free power that safely powers refrigerators, air conditioners, precision electronics, and other equipment.
Intelligent MPPT Control – Maximizes PV Utilization Integrated high-precision MPPT solar controller features a working voltage range of 30–450VDC and a maximum PV open-circuit voltage of 500VDC, significantly improving solar panel power generation efficiency.
Multiple Battery Type Compatibility Offers flexible configuration options for energy storage systems to meet diverse application requirements.
Wall-Mounted Design – Easy & Safe Installation Lightweight body with wall-mounted structure enables quick installation and convenient transportation. Equipped with non-power-off parallel auxiliary function for enhanced installation safety.
Application Scenarios
Small Household PV Systems Ideal for residential solar installations, enabling self-consumption with surplus energy storage to reduce dependence on the grid.
Remote Areas with Limited Grid Access Provides reliable power for small household appliances and lighting in villages, mountainous regions, and other locations where mains power is unavailable or unstable.
Emergency Backup Power Serves as a reliable backup power source for homes and small businesses, ensuring critical equipment remains operational during grid outages.
| Model | CH—ED2012EMH | |
| AC Input | AC Input Voltage | 220VAC (Standard) / 110VAC (Customizable) |
| Input Voltage Range | 90~280VAC±3V(Normal Mode) 170~280VAC±3V(UPS Mode) |
|
| Input Frequency | 50/60Hz±5% | |
| Rated Output Power (Battery Mode) | 1600W | |
| Output | Rated Output Power (PV Mode) | 1600W |
| Output Voltage | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Output Wave | Pure Sine Wave | |
| Transfer Time | ≤10ms(UPS Mode)/≤20ms(INV Mode) | |
| Peak Power | 3200VA | |
| Overload Ability | Battery Mode:1ls@105%-150% Load 2s@150%-200% Load 400ms@200% Load |
|
| Grid-connected Operation | Output Voltage | |
| Grid-Tied Voltage Range | ||
| Grid-Tied Frequency Range | ||
| Rated Output Curren | ||
| Power Factor Range | ||
| Peak Efficiency (DC/AC) | ||
| Battery | Rated Voltage | 12Vdc |
| Constant Charging Voltage (Adjustable) | 14.1Vdc | |
| Float Charging Voltage (Adjustable) | 13.5Vdc | |
| Charger | PV Charging Mode | MPPT |
| Max PV Input Power | 2000W | |
| MPPT Input Voltage Range | 30-500Vdc | |
| Optimal VMP Range | 300-400Vdc | |
| Max PV Input Voltage | 500Vdc | |
| Max PV Input Current | 13A | |
| Max PV Charging Current | 100A | |
| Max AC Charging Current | 60A | |
| Max Charging Current | 100A | |
| Display | LCD Interface | Can display operating mode/load/input/output |
| Interface | RS232 | Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm | |
| Parallel Interface / Parallel Port | Not support Parallel | |
| Ambient Temperature | Operating Temperature | -10°C-50°C |
| Operating Humidity | -10°C-60°C | |
| Storage Temperature | 20%-90% Non Condensing | |
| Noise | ≤50dB | |
