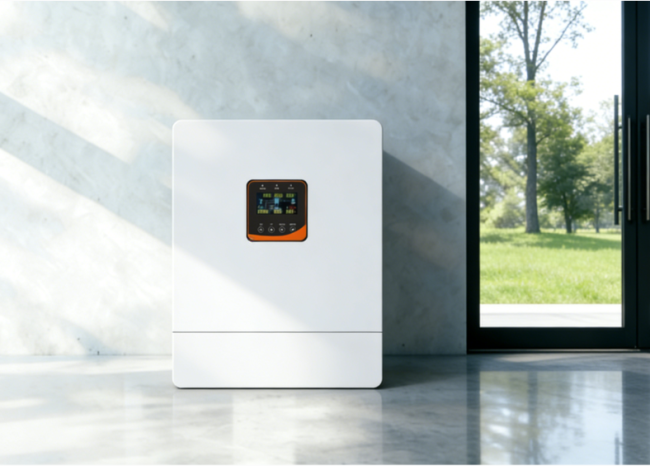

3500W Hybrid On Grid Inverter 1 Phase Solar Inverter 99.90% MPPT
Price:
$400-600
MOQ:
1
Delivery Time:
Negotiable
Product Description
3.5kW Hybrid Single-Phase Inverter – Delivers Pure Sine Wave Output for Stable Power Supply with 99.90% MPPT Tracking Efficiency for Maximum Solar Harvest
Product Introduction
This hybrid energy storage inverter combines photovoltaic energy storage, utility power storage, and AC sine wave output into a single unit. Powered by DSP control with advanced algorithms, it offers fast response, high reliability, and meets stringent industrial standards. The system supports four charging modes and two output methods, making it adaptable to a variety of application scenarios.
Product Highlights
- Three Output Modes: Grid-tied power generation, grid-tied with anti-backflow, and off-grid output when grid-tied function is enabled
- Four Charging Modes: Utility priority, PV priority, utility-PV hybrid, and PV-only charging
- Emergency Functions: Supports battery-free operation, standalone PV startup and load carrying, with battery activation capability
- Advanced Communication: Real-time monitoring and parameter adjustment via host computer and cloud-based APP interface
- Parallel Operation: Supports up to 9 units in parallel, offering flexible single-phase and three-phase AC power configurations
- Comprehensive Protection: Hardware and software protection systems with fault type display for quick troubleshooting
- Timed Charging/Discharging: Programmable AC charging and battery discharge schedules across different time periods
| Model | CH—GST48-3500 VII | |
| Inverter Output | Rated output power(W) | 3500 |
| Rated output power(VA) | 3500 | |
| Maximum peak power(W) | 6000 | |
| Motor capacity (HP) | 2 | |
| Rated AC output | 230VAC (Adjustable 200/208/220/240VAC), 50/60Hz | |
| Output voltage waveform | Pure Sine Wave | |
| Inverter and bypass switching time | 10(typical) | |
| Maximum number of parallel | 9 | |
| Maximum battery inverter efficiency | 93% | |
| Overload protection | 102%~110%,5min;110%~125%,10s;>125%,5s | |
| Battery | Battery Type | Lithium /lead-acid /user-defined |
| Rated Battery Voltage(VDC) | 48 | |
| Battery Voltage Range(VDC) | 40~60 | |
| Max MPPT charge current(A) | 60 | |
| Max AC charge current(A) | 60 | |
| Max mixed charge current(A) | 80 | |
| Charging current error (ADC) | ±3 | |
| Charging short circuit protection | Fuse | |
| PV Charging | Number of MPPT Trackers | 1 |
| Max. PV Array Power (VDC) | 4000 | |
| Max. PV Input Current (A) | 13 | |
| Max. Open Circuit Voltage (VDC) | 500 | |
| MPPT Operating Range (VDC) | 120~450 | |
| MPPT Tracking Efficiency | 99.9% | |
| AC Input | Input Voltage Range (VAC) | 90~280/170~280 |
| Frequency Range (Hz) | 50/60±3 | |
| Output Short-Circuit Protection | Circuit Breaker | |
| Bypass Overload Current (A) | 30 | |
| Specifications | Dimensions (D*W*H) mm | 130*350*455 |
| Weight (kg) | 11 | |
| Waterproof Rating | IP20 | |
| Working Temperature Range(℃) | -10~55 | |
| Storage Temperature Range(℃) | -25~60 | |
| Noise(db) | <60 | |
| Cooling Method | Forced Air Cooling (Adjustable Fan Speed) | |
| Communication | Embedded Interface | RS485 / CAN / USB / Dry Contact |
| External Module | WIFI/4G | |
| Certifications | Safety | CE(IEC62109-1) |
| EMC | EN61000 | |
