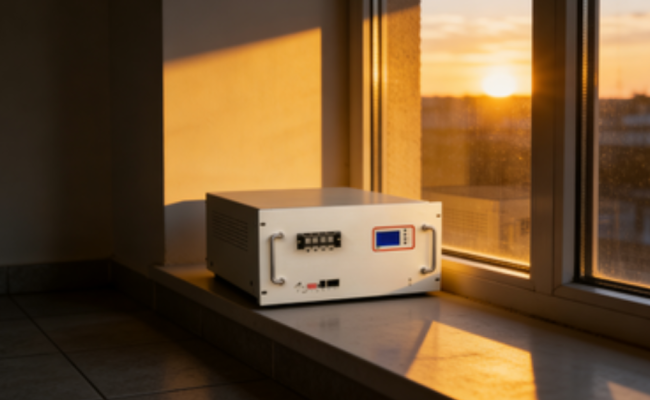

51.2V 100Ah Rack Mount LiFePO4 Battery | Home Residential Energy Storage for UPS & PV System

Key Features

• Standard rack-mounted design, perfectly compatible with most server cabinets, enabling quick and hassle-free installation without additional modification.
• Integrated smart BMS with comprehensive protection mechanisms, effectively safeguarding the battery against overcharge, over-discharge, over-current, short circuit, and other potential risks to ensure long-term stable operation.
• 51.2V 100Ah high-capacity configuration, delivering steady and reliable power output, paired with an extended service life to meet home residential and small-scale energy storage needs.
• Exceptional deep cycle performance of up to 5,000+ cycles at 80% depth of discharge (DoD), featuring low self-discharge rate and a maintenance-free design, significantly reducing long-term operational costs.
• Supports multi-unit parallel expansion, easily scalable to meet the requirements of home residential and small-to-medium energy storage systems, adapting to growing power demands in household scenarios.

Application Scenarios

• Solar photovoltaic (PV) energy storage systems for home use, efficiently storing surplus solar power for daily household use and reducing reliance on grid electricity.
• Home UPS backup power systems, providing stable emergency power to protect household electrical equipment and ensure uninterrupted use during power outages.
• Residential energy storage supporting daily power supply, balancing grid load and reducing household electricity costs.
• Small-scale home energy storage applications, perfectly matching the power needs of household PV systems and daily electrical equipment.
• Off-grid home power supply systems, delivering reliable off-grid power for rural homes or areas with unstable grid supply.

• Model	CH—GBP51.2-100R
  Nominal Voltage (V)	51.2
  Cell Specification	100
  Nominal Capacity (Ah)	100
  Nominal Energy (kWh)	5.12
  Operating Voltage Range (V)	44.8~58.4
  Recommended Charging Voltage (V)	55.2
  Recommended Discharge Cut-off Voltage (V)	48
  Standard Charge/Discharge Current (A)	0.5C
  Maximum Continuous Charge/Discharge Current (A)	1C (Customizable)
  Operating Temperature (°C)	-30~ 60 (Recommend 10~ 35)
  Allowable Humidity Range(%RH)	<85
  Storage Temperature(°C)	-20~65(Recommend 10~ 35)
  Charging Temperature(°C)	0~55
  Discharging Temperature(°C)	-10~55
  Protection Level	IP20
  Cooling Method	Natural Air Cooling / Intelligent Fan
  Cycle Life	5000+Times at 80% DOD
  Maximum Dimension(D*W*H)mm	689*495*162
  Weight(kg)	49
  Note:  The above data is for reference only. In case of any changes, no further notice will be given.
