10G Firewall Mini PC Intel Atom X7425E Dual Nic Mini Pc Pfsense RJ45 Network
| Processor System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| CPU TDP | By CPU |
| Memory | 1 * DDR5 SO-DIMM Socket (Up To 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 * Intel I226-V 2.5 Gigabit LAN 2 * Intel X540 10 Gigabit LAN 2 * Intel JL82599ES 10 Gigabit SFP |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 * Power Button, 1 * Reset Button |
| LED | 1 * Power LED, 1 * HDD LED |
| Serial Port | 1 * Connector, RS-232 (RJ-45) |
| USB | 2 * USB 3.0, 2 * USB 2.0 |

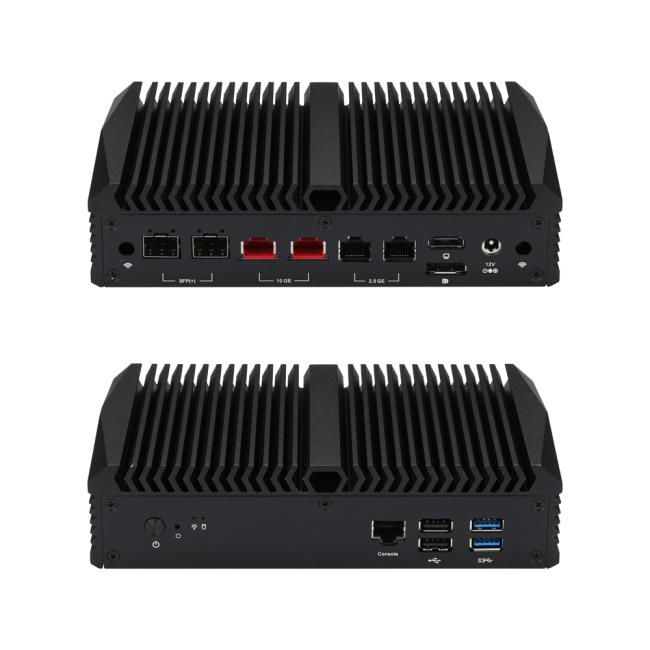

| Rear I/O | |
| DC-IN | 1 |
| Display | 1 * HDMI, 1 * Display Port |
| SFP | 2 * 10G SFP |
| Ethernet | 2 * 10G RJ45 |
| Ethernet | 2 * 2.5G RJ45 |
| Storage | |
| Type | 1 * M.2 For SSD (M Key, Type: 2280, PCIe 3.0 * 1) |
| Expansion | |
| EMMC | Option |
| M.2 | 1 * M.2 For Wi-Fi (E Key, Type: 2230) |
| USB 2.0 Header | 2, 2 * 5Pin, Pitch 2.0mm |
| USB 3.0 Header | 1, 2 * 5Pin, Pitch 2.0mm,Option |
| AutoStart Jumper | Yes, 1 * 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 * 3Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 * 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 * 2Pin, Pitch 3.5mm, Phoenix 2Pin |
| Power Requirement | |
| Power Adapter | 12V5A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 196 * 122 * 47mm |
| Weight | 1.26kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 * 260 * 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-Assisted Cooling |
| OS Support | |
| OS | UEFI Windows, UEFI Linux |
N97: Intel Processor N97, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.6GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 12W.
N100: Intel Processor N100, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 6W.
X7425E: Intel Core i3-X7425E, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics, TDP: 12W.
N150: Intel Processor N150, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 6W.
N305: Intel Core i3-N305, Alder Lake-N, 8 Cores, 8 Threads, Up to 3.8GHz, 6M Cache, Intel UHD Graphics (32 EUs), TDP: 15W.
N355: Intel Core i3-N355, Alder Lake-N, 8 Cores, 8 Threads, Up to 3.9GHz, 6M Cache, Intel UHD Graphics (32 EUs), TDP: 15W.
-
Hybrid High-Speed Connectivity: Features a unique "Mixed Port" configuration including dual 10G SFP+, dual 10G RJ45, and dual 2.5G LAN, providing ultimate flexibility for diverse network environments.
-
Next-Gen Processing Power: Powered by the Intel Core i3-X7425E (Alder Lake-N), offering a balance of 4-core performance and a low 12W TDP for 24/7 energy-efficient operation.
-
Massive Memory Support: Equipped with a DDR5 SO-DIMM socket supporting up to 48GB of RAM, ensuring smooth handling of intensive virtualization and data-heavy tasks.
-
Ultra-Compact Form Factor: Measuring just 196 * 122 * 47mm, it delivers enterprise-grade networking capabilities in a space-saving chassis suitable for edge deployment.
-
Robust 4K Display Output: Supports dual 4K output via HDMI and DisplayPort, making it versatile for both headless server use and high-resolution monitoring.
-
Network Security & Firewalls: Perfect for running pfSense, OPNsense, or high-throughput VPN gateways thanks to its 10GbE and SFP+ ports.
-
Home/Small Business Lab (Homelab): A premium choice for Proxmox or VMware ESXi virtualization, allowing for high-speed storage access and multiple VMs.
-
Industrial Edge Computing: Its low power consumption and RS-232 support make it ideal for IoT data aggregation and industrial automation control.
-
Network Attached Storage (NAS): Acts as a high-speed controller for NVMe-based storage arrays, providing massive bandwidth for fast file transfers over 10G networks.
-
Smart Surveillance Systems: Capable of processing multiple high-definition IP camera feeds simultaneously with efficient hardware decoding.
