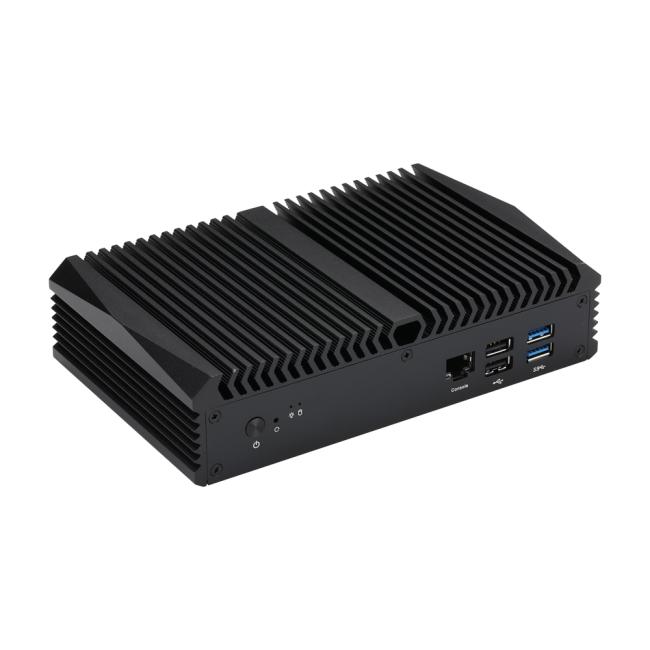

3.4GHz SFP+ Mini PC Intel N150 Dual Gigabit Dual 10G RJ45 Soft Router
| Processor System | |
| CPU | Intel Processor N150, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 6W. |
| CPU TDP | By CPU |
| Memory | 1 * DDR5 SO-DIMM Socket (Up To 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 * Intel I226-V 2.5 Gigabit LAN 2 * Intel X540 10 Gigabit LAN 2 * Intel JL82599ES 10 Gigabit SFP |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 * Power Button, 1 * Reset Button |
| LED | 1 * Power LED, 1 * HDD LED |
| Serial Port | 1 * Connector, RS-232 (RJ-45) |
| USB | 2 * USB 3.0, 2 * USB 2.0 |
| Rear I/O | |
| DC-IN | 1 |
| Display | 1 * HDMI, 1 * Display Port |
| SFP | 2 * 10G SFP |
| Ethernet | 2 * 10G RJ45 |
| Ethernet | 2 * 2.5G RJ45 |
| Storage | |
| Type | 1 * M.2 For SSD (M Key, Type: 2280, PCIe 3.0 * 1) |
| Expansion | |
| EMMC | Option |
| M.2 | 1 * M.2 For Wi-Fi (E Key, Type: 2230) |
| USB 2.0 Header | 2, 2 * 5Pin, Pitch 2.0mm |
| USB 3.0 Header | 1, 2 * 5Pin, Pitch 2.0mm,Option |
| AutoStart Jumper | Yes, 1 * 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 * 3Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 * 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 * 2Pin, Pitch 3.5mm, Phoenix 2Pin |
| Power Requirement | |
| Power Adapter | 12V5A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 196 * 122 * 47mm |
| Weight | 1.26kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 * 260 * 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-Assisted Cooling |
| OS Support | |
| OS | UEFI Windows, UEFI Linux |
N97: Intel Processor N97, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.6GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 12W.
N100: Intel Processor N100, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 6W.
X7425E: Intel Core i3-X7425E, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics, TDP: 12W.
N150: Intel Processor N150, Alder Lake-N, 4 Cores, 4 Threads, Up to 3.4GHz, 6M Cache, Intel UHD Graphics (24 EUs), TDP: 6W.
N305: Intel Core i3-N305, Alder Lake-N, 8 Cores, 8 Threads, Up to 3.8GHz, 6M Cache, Intel UHD Graphics (32 EUs), TDP: 15W.
N355: Intel Core i3-N355, Alder Lake-N, 8 Cores, 8 Threads, Up to 3.9GHz, 6M Cache, Intel UHD Graphics (32 EUs), TDP: 15W.
-
Hybrid 6-Port Connectivity: A rare configuration featuring dual 10G SFP+ (fiber), dual 10G RJ45 (copper), and dual 2.5G LAN ports, providing unmatched flexibility for diverse network environments.
-
Next-Gen Efficiency: Powered by the Intel N150 (Alder Lake-N) with a 6W TDP, delivering high-performance routing and 4K visuals while maintaining ultra-low power consumption and heat.
-
High-Capacity DDR5 Support: Equipped with a DDR5 SO-DIMM slot supporting up to 48GB of RAM, ensuring smooth multitasking and high-speed data packet processing for heavy workloads.
-
Industrial-Grade Reliability: Includes an RS-232 (RJ45) console port and high-quality Intel network controllers (I226-V, X540, JL82599ES) for stable, long-term 24/7 operation.
-
Advanced Soft Routing & Firewalls: The perfect hardware for high-bandwidth deployment of OPNsense, pfSense, or OpenWrt, capable of handling multi-gigabit fiber internet speeds.
-
Home Lab & Virtualization: An ideal node for Proxmox or VMware, where the 10G ports allow for lightning-fast storage access and VM migrations.
-
Network Attached Storage (NAS) Gateway: Use as a compact head-unit for high-speed file transfers between 10G copper and fiber storage networks.
-
Industrial Edge Computing: Thanks to the RS-232 port and compact fanless-ready design, it excels in smart factory monitoring and edge data processing.
