Intel I7 10510U Core Mini PC Industrial Fanless PC Dual 2.5G LAN
Mi10510C4 Industrial Fanless PC Intel i7-10510U 4xRS232 Dual 2.5G LAN
| Description | |
| CPU | Intel Core i7-10510U, Comet Lake, 4 Cores, 8 Threads, 1.8GHz (Turbo up to 4.9GHz), 8M Cache, Intel UHD Graphics, TDP: 15W. |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket(Up to 32G, 2133/2400MHz) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x M.2 for SSD (M key, Type: 2280) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Expansion | 1 x M.2 for 4G/5G (B key, Type: 3042/3052), 4205U, 5405U, 5205U, 5305U don't support 5G |
| 1 x M.2 for SSD (M key, Type: 2280) 1 x M.2 for Wi-Fi (E key, Type: 2230) | |
| GPIO | Yes |
| RS-485 | 0 |
| AutoStart Jumper | Yes |

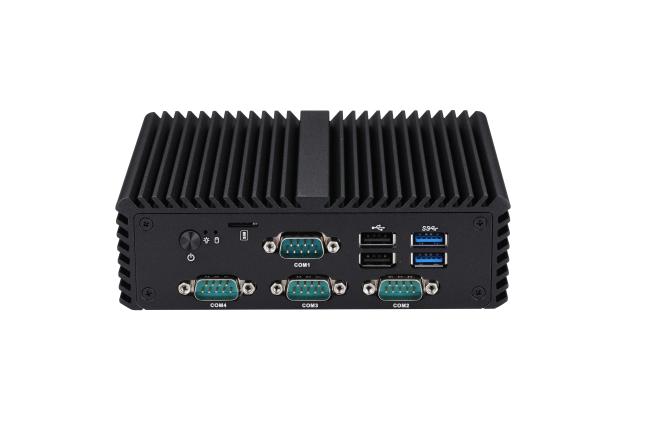

| Front I/O | |
| Power Button | 1 |
| Serial Port | 4 x RS-232 |
| LED | 1 x Power LED, 1 x HDD LED |
| SIM Card Slot | 1 |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Rear I/O | |
| Power | 1 x DC Jack |
| Video Output | 1 x Display Port, 1 x HDMI |
| Video Output | Can be expanded 1 x VGA (Option) |
| USB | 2 x USB 3.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 155 x 127 x 48mm |
| Weight | 0.86kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | win dows 10, Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
4305U: Intel Celeron 4305U, Whiskey Lake, 2 Cores, 2 Threads, 2.2GHz, 2M Cache, Intel UHD Graphics 610, TDP: 15W.
5405U: Intel Pentium Gold 5405U, Whiskey Lake, 2 Cores, 4 Threads, 2.3GHz, 2M Cache, Intel UHD Graphics 610, TDP: 15W.
8260U: Intel Core i5-8260U, Whiskey Lake, 4 Cores, 8 Threads, 1.6GHz (Turbo up to 3.9GHz), 6M Cache, Intel UHD Graphics 620, TDP: 15W.
5205U: Intel Celeron 5205U, Comet Lake, 2 Cores, 2 Threads, 1.9GHz, 2M Cache, Intel UHD Graphics, TDP: 15W.
10110U: Intel Core i3-10110U, Comet Lake, 2 Cores, 4 Threads, 2.1GHz (Turbo up to 4.1GHz), 4M Cache, Intel UHD Graphics, TDP: 15W.
10210U: Intel Core i5-10210U, Comet Lake, 4 Cores, 8 Threads, 1.6GHz (Turbo up to 4.2GHz), 6M Cache, Intel UHD Graphics, TDP: 15W.
10510U: Intel Core i7-10510U, Comet Lake, 4 Cores, 8 Threads, 1.8GHz (Turbo up to 4.9GHz), 8M Cache, Intel UHD Graphics, TDP: 15W.
